Constant On/Off Ratio

Trouble Shooting Procedure:

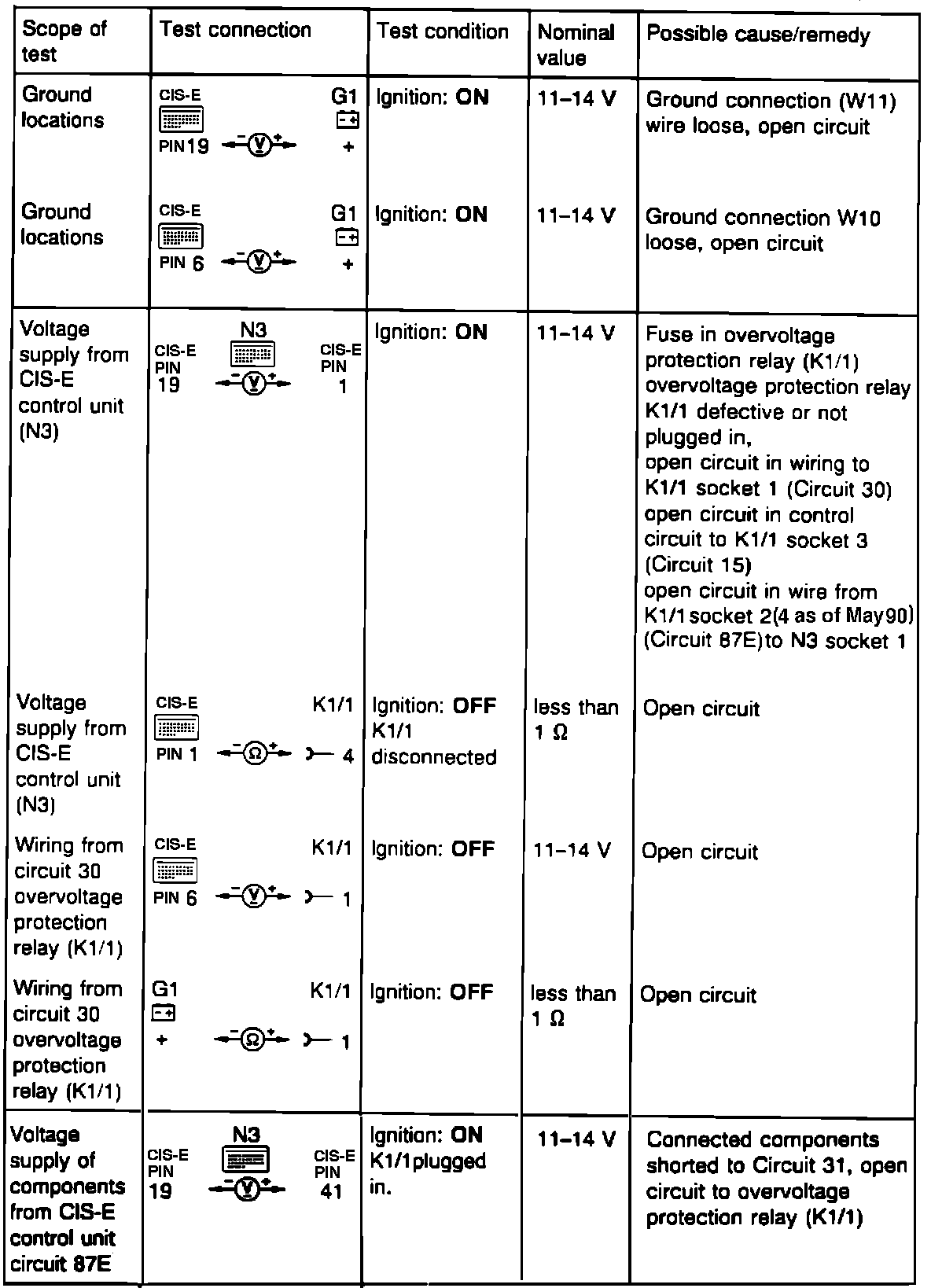

INCORRECT VOLTAGE AT CIS-E CONTROL UNIT

Trouble Shooting Procedure:





UNEXPECTED CURRENT READING AT ELECTRO-HYDRAULIC ACTUATOR
