Front Door Panel: Service and Repair

Removal

1 Remove hand grip with arm rest. See Armrest for procedure. Service and Repair

2 Remove window crank.

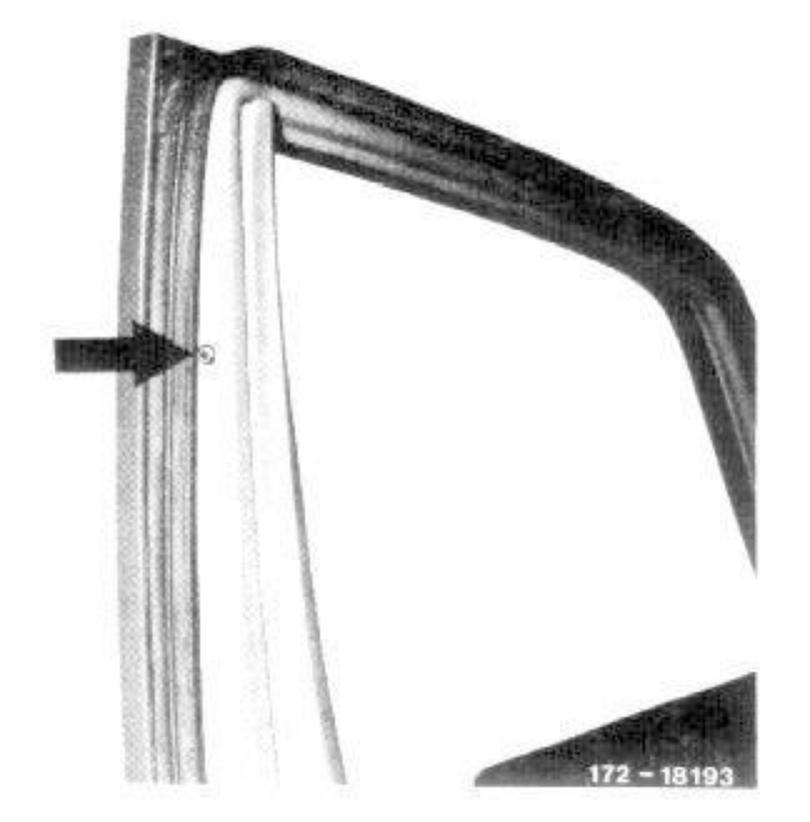

3 Unscrew screw and pull-off reveal molding in upward direction.

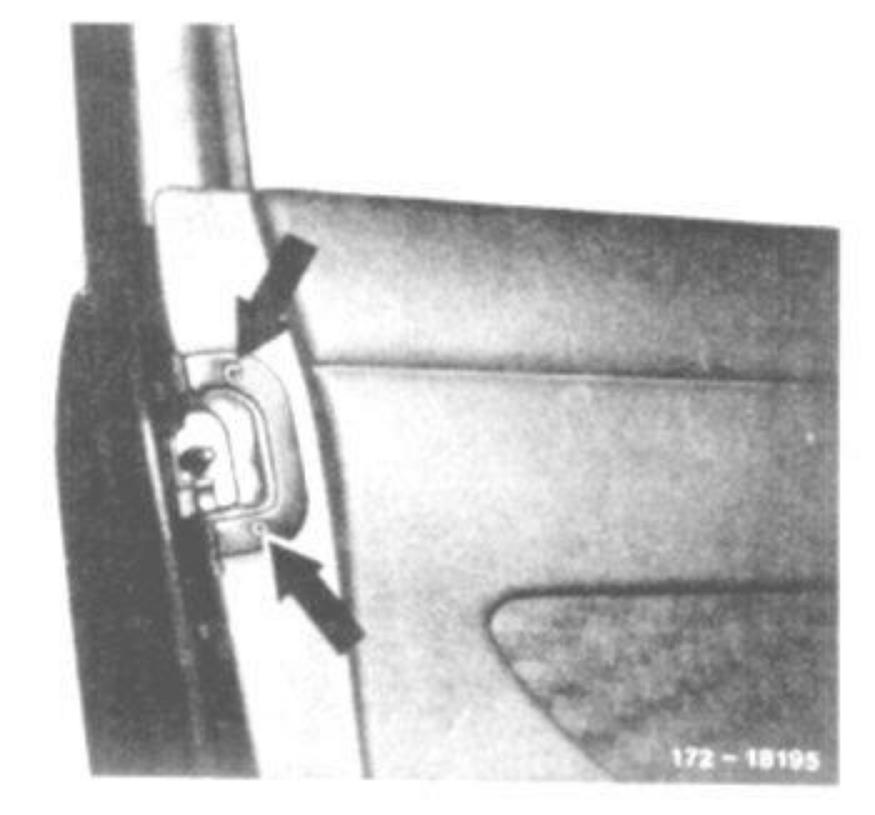

4 Remove enclosure on door lock.

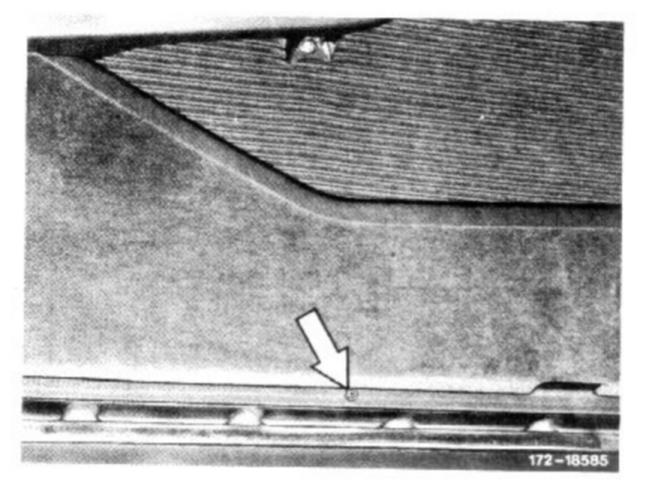

5 Unscrew screw below on door lining.

6 Pull door lining in upward direction and remove.

Attention! Door lining is hung-on and not clipped-on.

Installation

7 For installation proceed vice versa.

Note: If the sealing sheet on inner door panel is damaged, renew prior to installing door lining.
