Ambient Temperature Sensor / Switch HVAC: Service and Repair

Outside Temperature Sensor





1 Remove heater valve Service and Repair

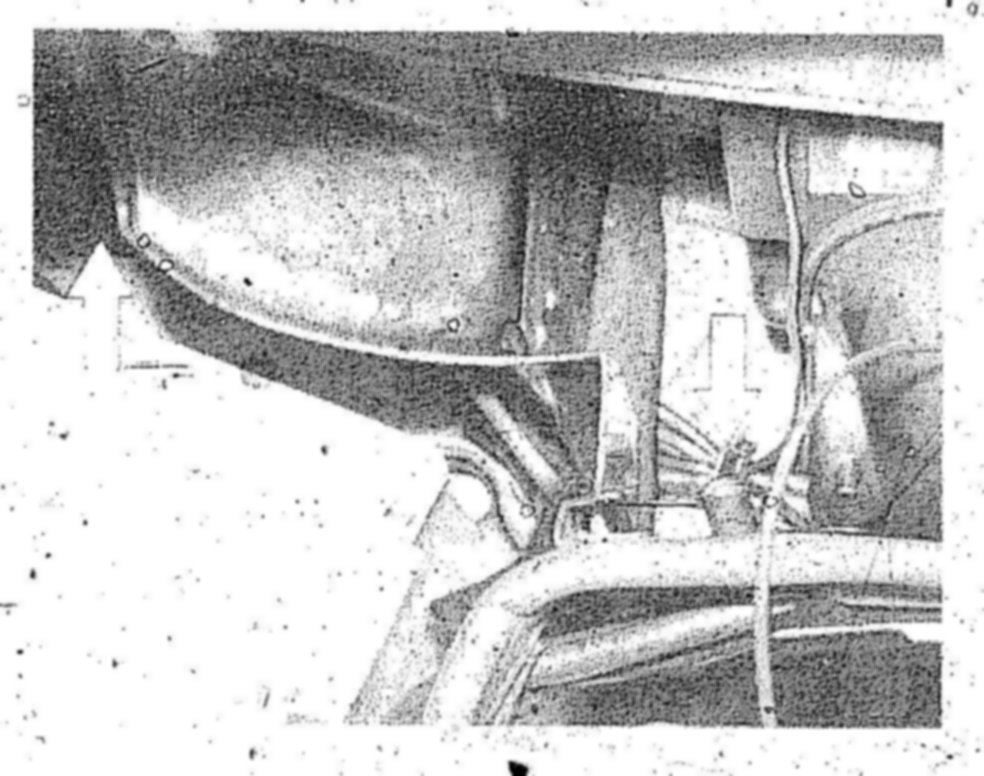

2 Loosen cable strap (arrow).

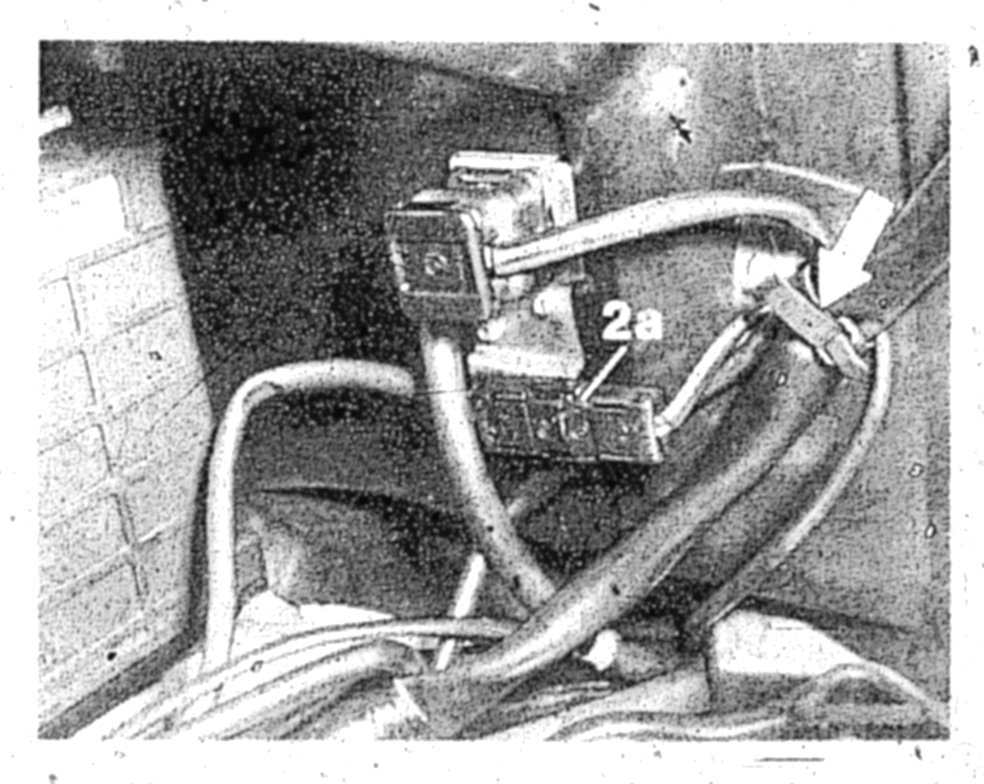

3 Loosen cable strap (arrow) and separate 2-pin plug connection (2a).





4 Pull outside temperature sensor (2) from holder.
5 Test temperature sensor with ohmmeter.
6 Install in vice-versa sequence.

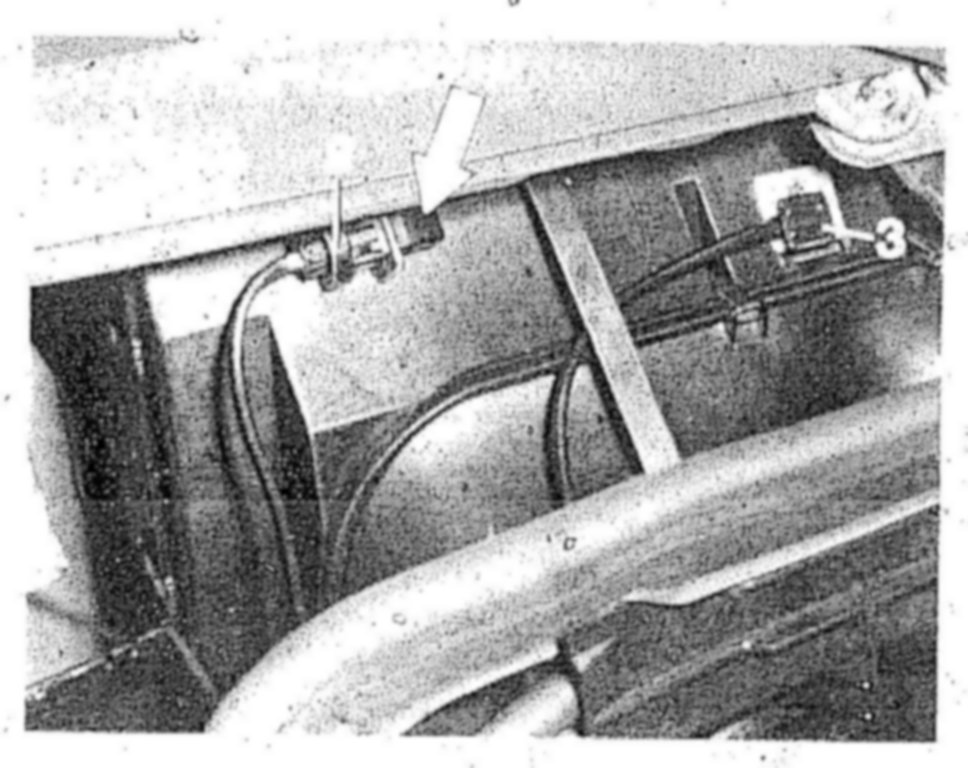

NOTE: Opening of outside temperature sensor (arrow) should face evaporator housing.
