Overvoltage Protection Relay: Locations

Fuse and Relay Block Identification and Location

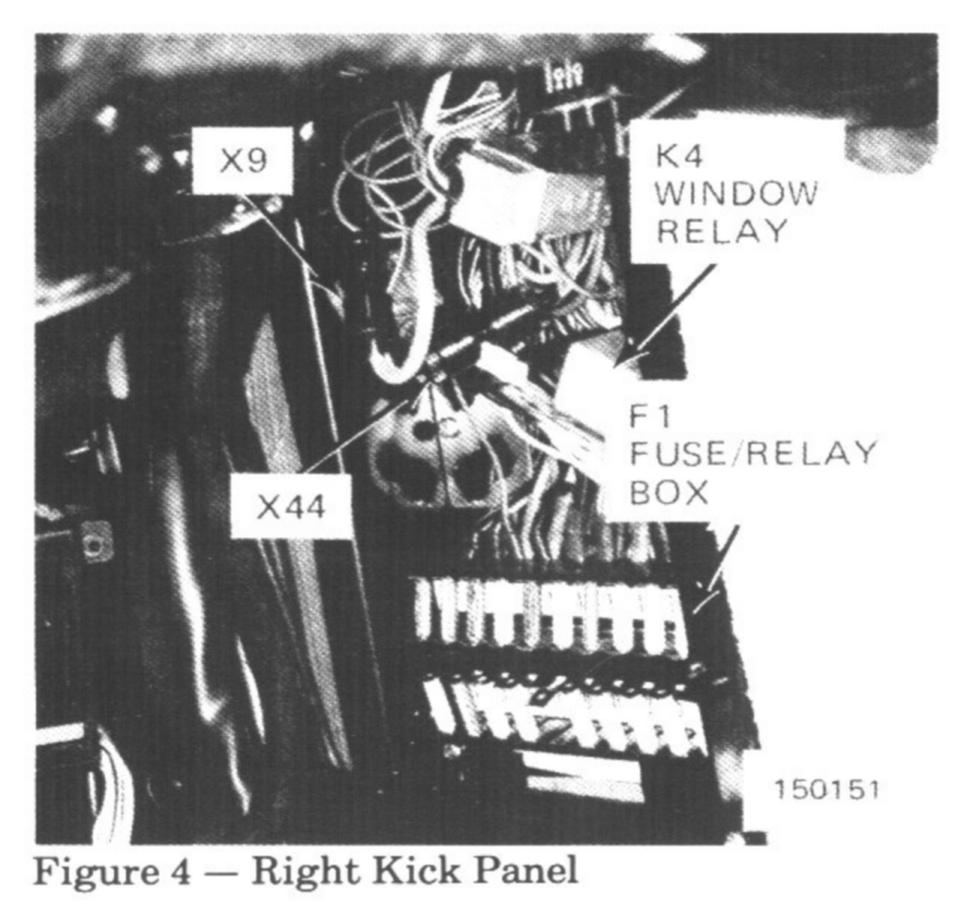

The fuse/relay box is located behind the passenger side kick panel.

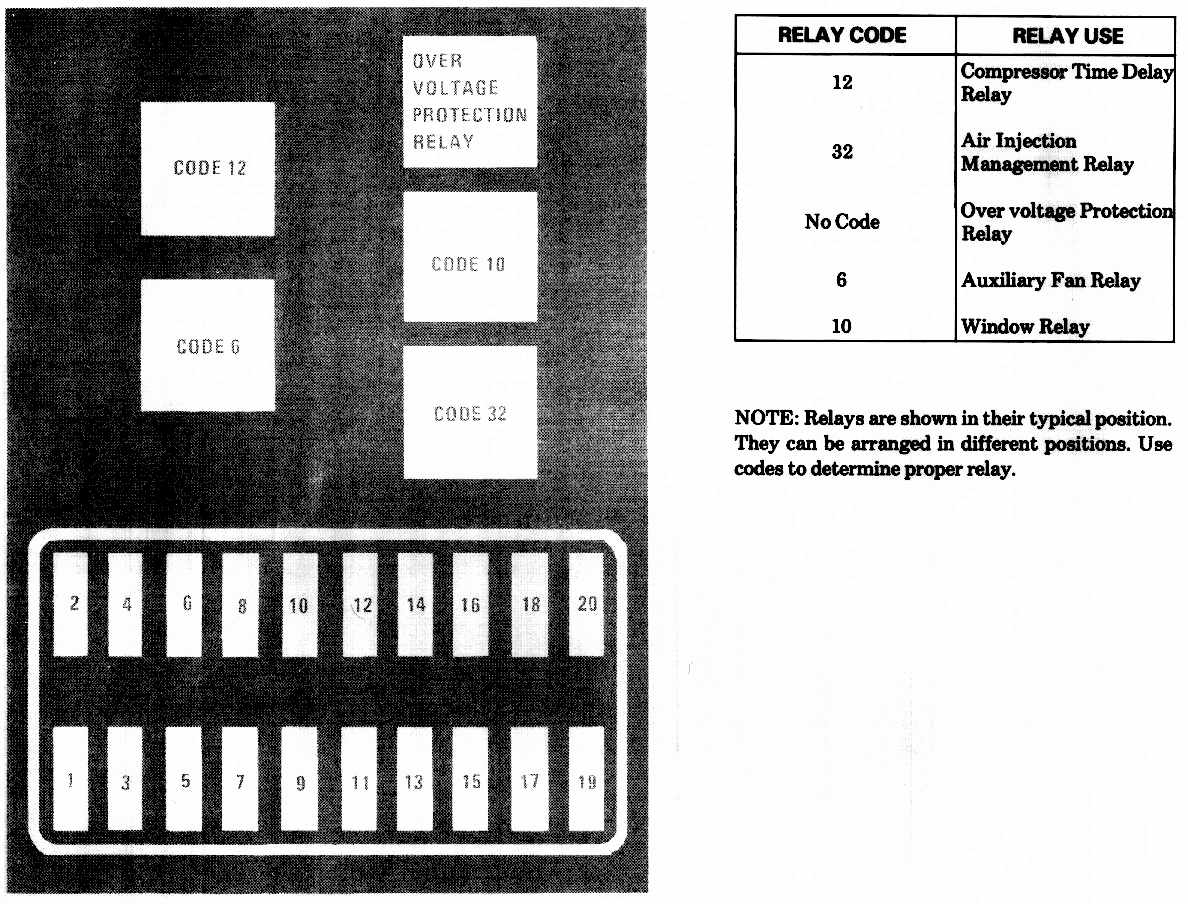

Fuse & Relay Box Layout / Relay Identification:

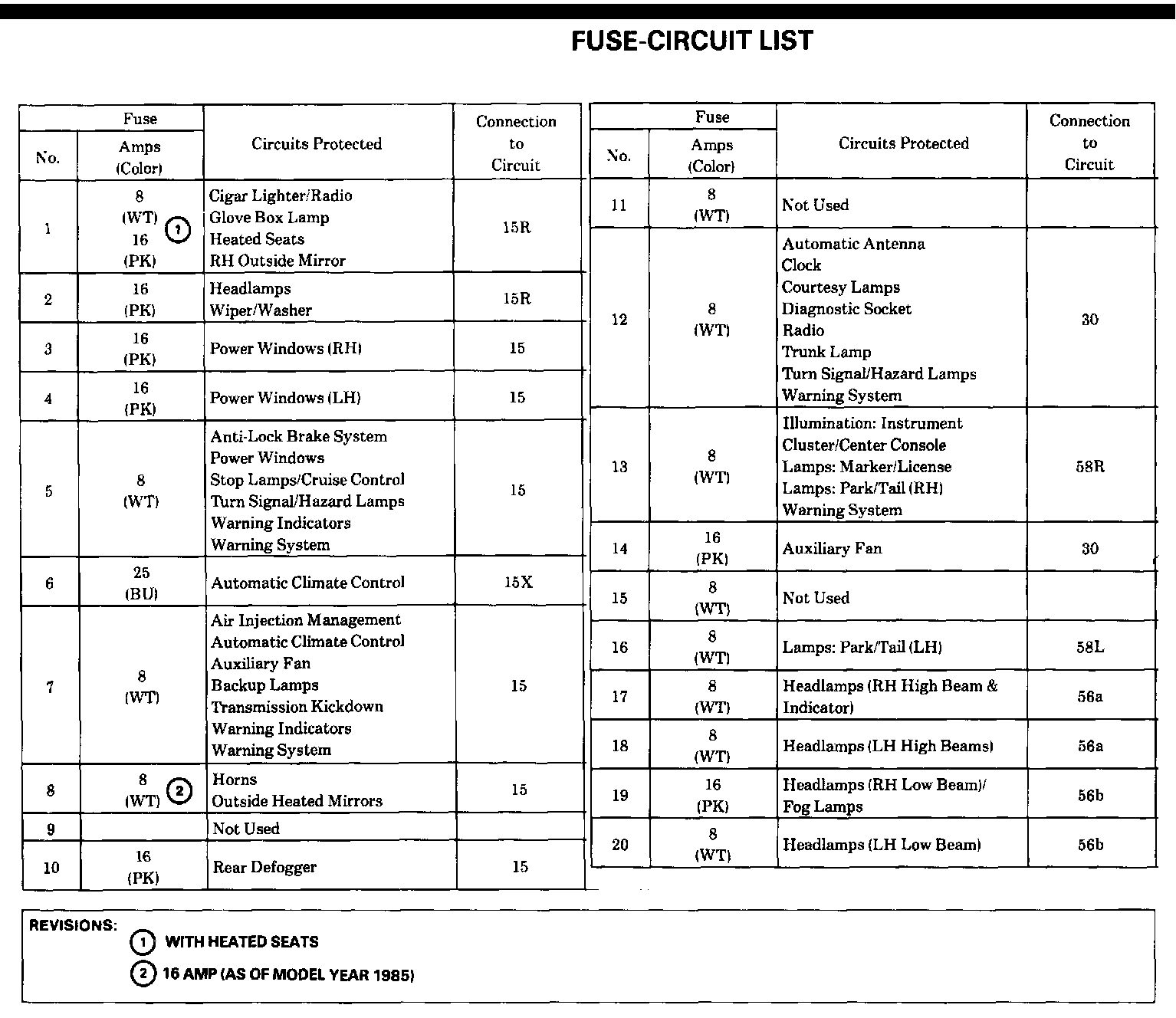

Fuse Identification:
