Information Display Removal/Installation

INFORMATION DISPLAY REMOVAL/INSTALLATION

CAUTION:
- When replacing the information display, the configuration procedure must be performed before removing the information display. The information display will not operate normally if it is replaced without performing the configuration procedure.

1. Perform the information display configuration when replacing it. Information Display/Multi Information Display Configuration

2. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

3. Remove the following parts:
a. Upper column cover Service and Repair

b. Instrument cluster Removal and Replacement

c. Center panel Center Panel Removal/Installation

d. Audio unit Audio Unit Removal/Installation

e. Center cover Center Cover Removal/Installation

f. Dashboard upper panel Dashboard Upper Panel Removal/Installation

g. Hole cover Hole Cover Removal/Installation

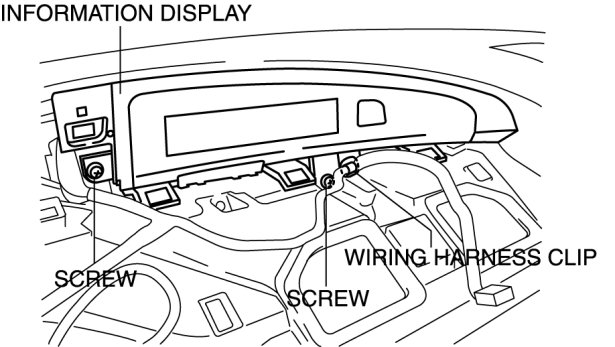

4. Remove the screws and wiring harness clip.






5. Remove the information display.

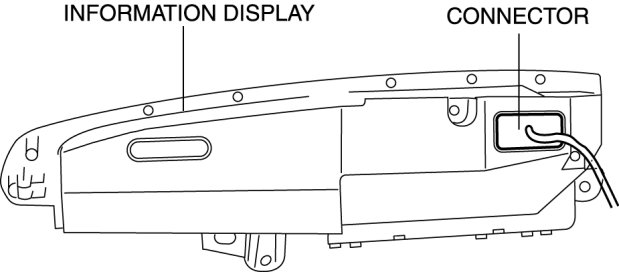

6. Disconnect the connector.






7. Install in the reverse order of removal.
