Luggage / Roof Rack: Service and Repair

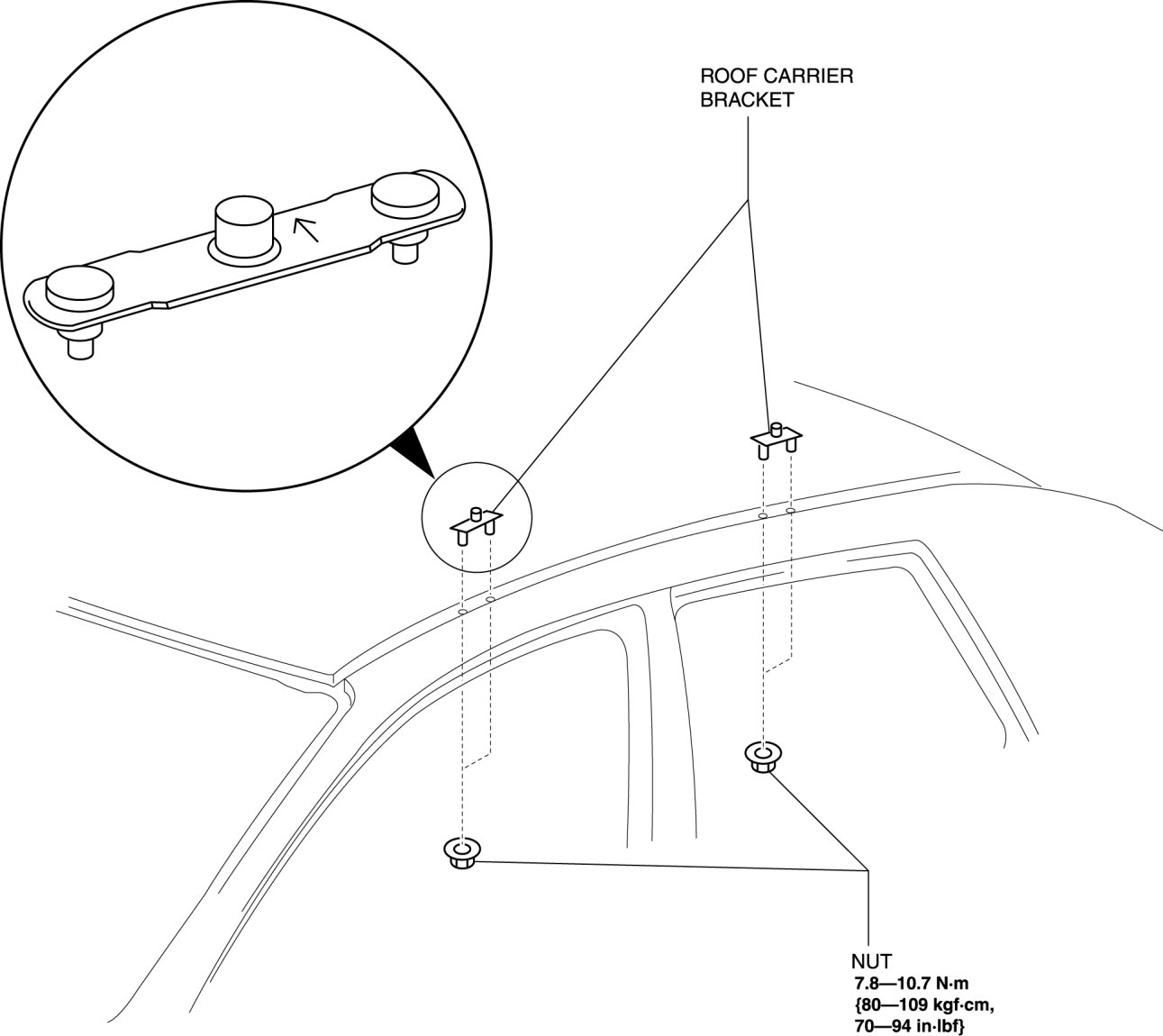

4. Remove the roof carrier bracket.

5. Install in the reverse order of removal.

NOTE:
- Install the roof carrier bracket so that the arrow on it faces inward.

5HB

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Sunroof seaming welt (vehicles with sunroof)

b. Front scuff plate Front Scuff Plate Removal/Installation

c. Rear scuff plate Rear Scuff Plate Removal/Installation

d. A-pillar trim A-Pillar Trim Removal/Installation

e. B-pillar lower trim B-Pillar Lower Trim Removal/Installation

f. Upper anchor of the front seat belt installation bolt Front Seat Belt Removal/Installation [Standard Deployment Control System] Front Seat Belt Removal/Installation [Two-Step Deployment Control System]

g. B-pillar upper trim B-Pillar Upper Trim Removal/Installation

h. Rear seat cushion Rear Seat Cushion Removal/Installation

i. Tire house trim Tire House Trim Removal/Installation

j. Trunk side upper trim

k. C-pillar trim C-Pillar Trim Removal/Installation

l. Map light Map Light Removal/Installation

m. Sunvisor Service and Repair

n. Assist handle Service and Repair

o. Headliner Service and Repair

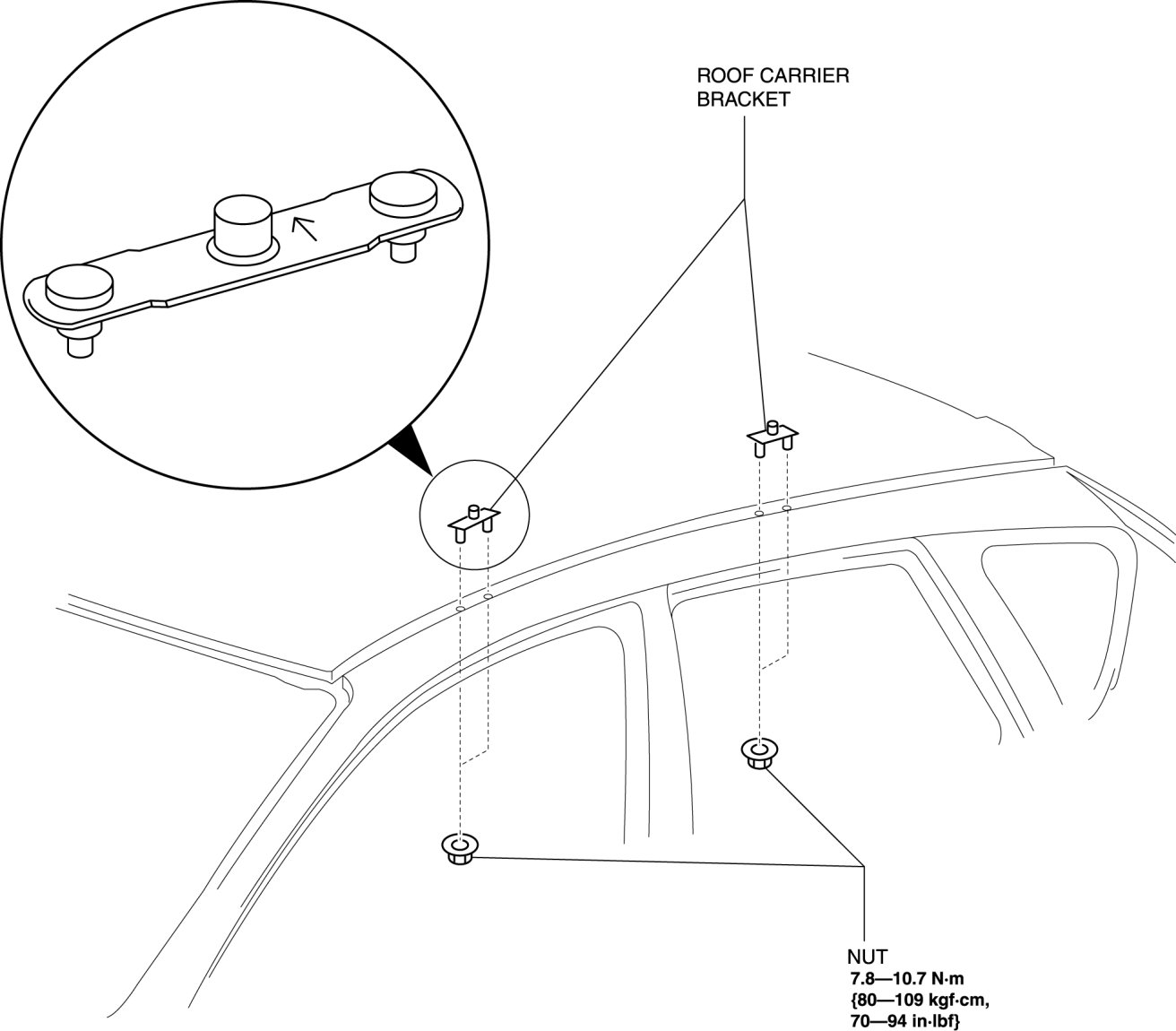

3. Remove the nuts.

4. Remove the roof carrier bracket.

5. Install in the reverse order of removal.

NOTE:
- Install the roof carrier bracket so that the arrow on it faces inward.
