Rear Cross-Member: Service and Repair

REAR CROSSMEMBER REMOVAL/INSTALLATION

CAUTION:
- Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the ABS wheel-speed sensor wiring harness connector (axle side) and fix the wiring harness to an appropriate place where it will not be pulled by mistake while servicing the vehicle.

1. Remove the charcoal canister. (MZR 2.0 (Mexico), MZR 2.5 (Mexico)) Service and Repair

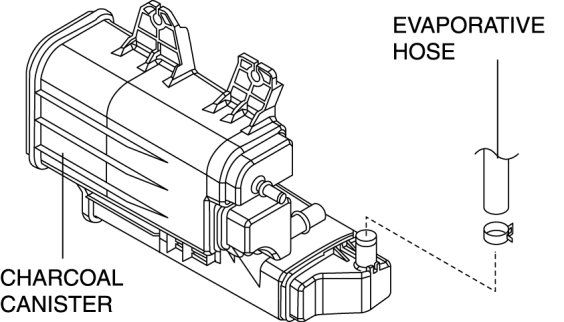

2. Disconnect the evaporative hose. (MZR 2.0 (Except Mexico), SKYACTIV-G 2.0, MZR 2.3 DISI Turbo, MZR 2.5 (Except Mexico))

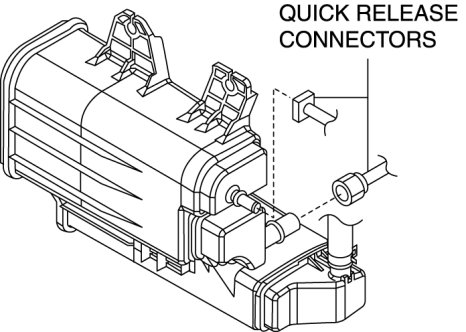

3. Disconnect the quick release connectors. (MZR 2.0 (Except Mexico), SKYACTIV-G 2.0, MZR 2.3 DISI Turbo, MZR 2.5 (Except Mexico)) Service and Repair Service and Repair (See Service and Repair

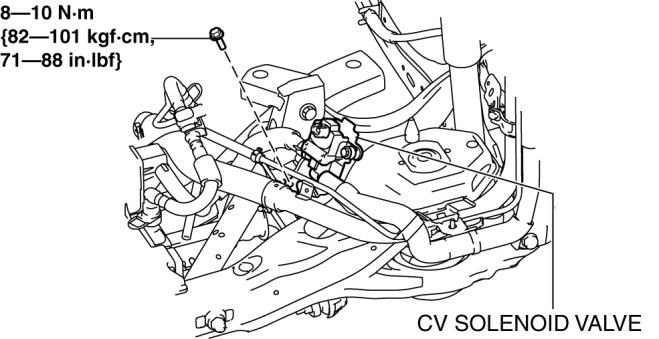

4. Remove the CV solenoid valve from the rear crossmember. (MZR 2.0 (Except Mexico), SKYACTIV-G 2.0, MZR 2.3 DISI Turbo, MZR 2.5 (Except Mexico))






5. Disconnect the wiring harness connecting to the rear crossmember.






6. Remove the auto leveling sensor. (Vehicles with AFS) Service and Repair

7. Remove the rear stabilizer. Rear Suspension - Stabilizer Removal/Installation

8. Remove the rear coil spring. Rear Suspension - Coil Spring Removal/Installation

9. Remove the rear lower arm. Rear Suspension - Lower Arm Removal/Installation

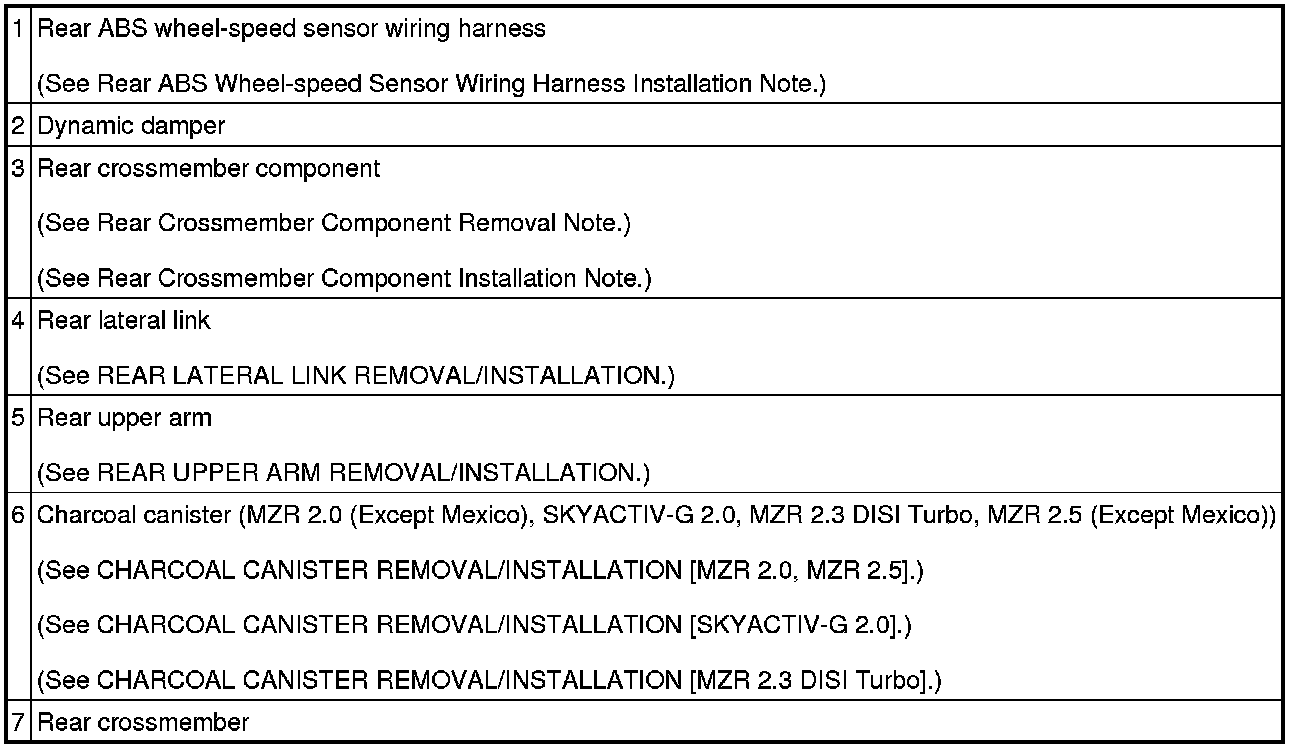

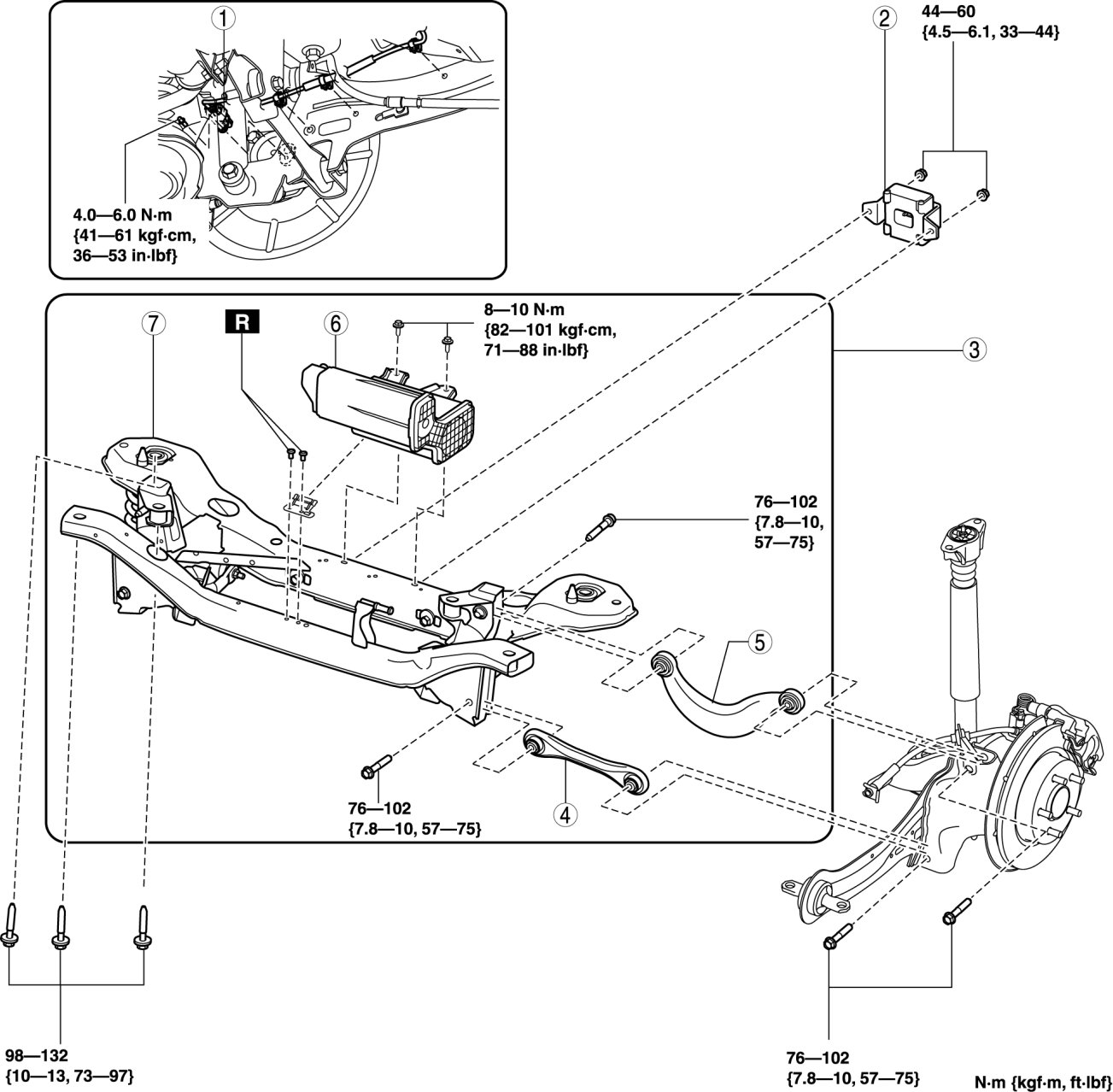

10. Remove in the order indicated in the table.

11. Install in the reverse order of removal.

12. Inspect the wheel alignment and adjust it if necessary. Rear Wheel Alignment









Rear Crossmember Component Removal Note

WARNING:
1 Verify that the crossmember is securely supported by a jack. If the rear crossmember falls off, it can cause serious injury or death, and damage to the vehicle.

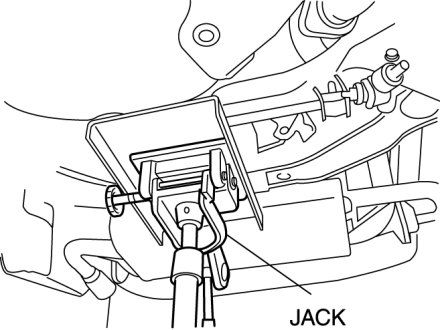

1. Support the rear crossmember with the jack and remove the bolt.






2. Remove the rear crossmember component.

Rear Crossmember Component Installation Note

WARNING:
1 Verify that the crossmember is securely supported by a jack. If the rear crossmember falls off, it can cause serious injury or death, and damage to the vehicle.

1. Support the rear crossmember component and install the rear crossmember.






Rear ABS Wheel-speed Sensor Wiring Harness Installation Note

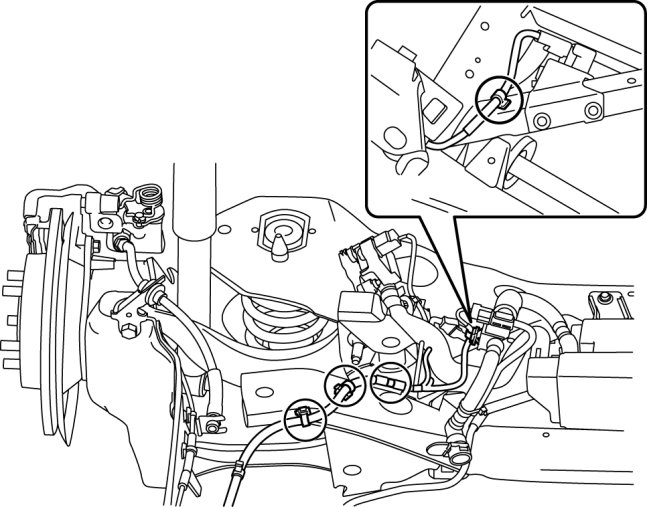

1. Pass the rear ABS wheel-speed sensor wiring harness outside the rear parking brake cable as shown in the figure.






2. Install the rear ABS wheel-speed sensor wiring harness.
