Antenna Feeder No. 3 Removal/Installation

ANTENNA FEEDER NO.3 REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the rain sensor cover. (Vehicles with auto light/wiper system) Service and Repair

3. Disconnect the rain sensor connector. (Vehicles with auto light/wiper system)

4. Partially peel back the seaming welts.

5. Remove the following parts:
a. Sunroof seaming welt (vehicles with sunroof)

b. A-pillar trim A-Pillar Trim Removal/Installation

c. Front scuff plate Front Scuff Plate Removal/Installation

d. Rear scuff plate Rear Scuff Plate Removal/Installation

e. B-pillar lower trim B-Pillar Lower Trim Removal/Installation

f. Upper anchor of the front seat belt Front Seat Belt Removal/Installation [Standard Deployment Control System] Front Seat Belt Removal/Installation [Two-Step Deployment Control System]

g. B-pillar upper trim B-Pillar Upper Trim Removal/Installation

h. Rear seat cushion Rear Seat Cushion Removal/Installation

i. Tire house trim Tire House Trim Removal/Installation

j. Trunk side upper trim

k. C-pillar trim C-Pillar Trim Removal/Installation

l. Map light Map Light Removal/Installation

m. Sunvisor Service and Repair

n. Assist handle Service and Repair

o. Headliner Service and Repair

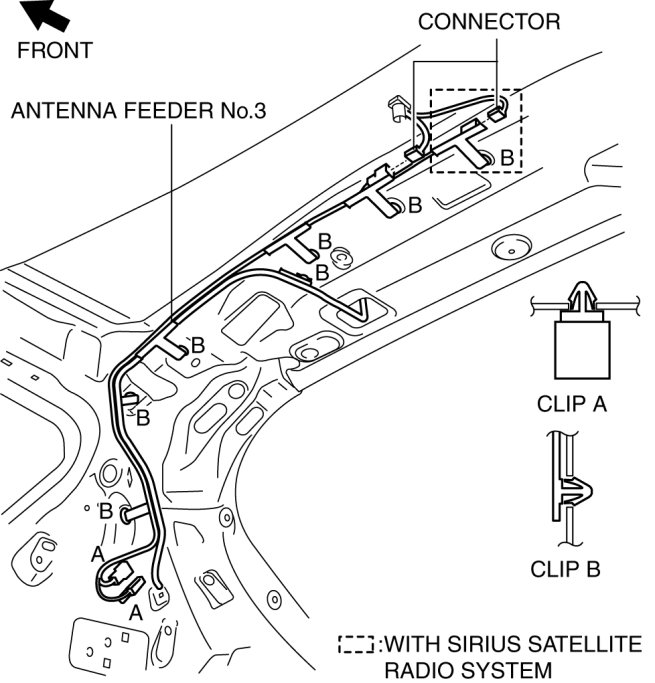

6. Disconnect the connector.






7. Remove the clips A and B.

8. Remove the antenna feeder No.3.

9. Install in the reverse order of removal.
