System Specifications

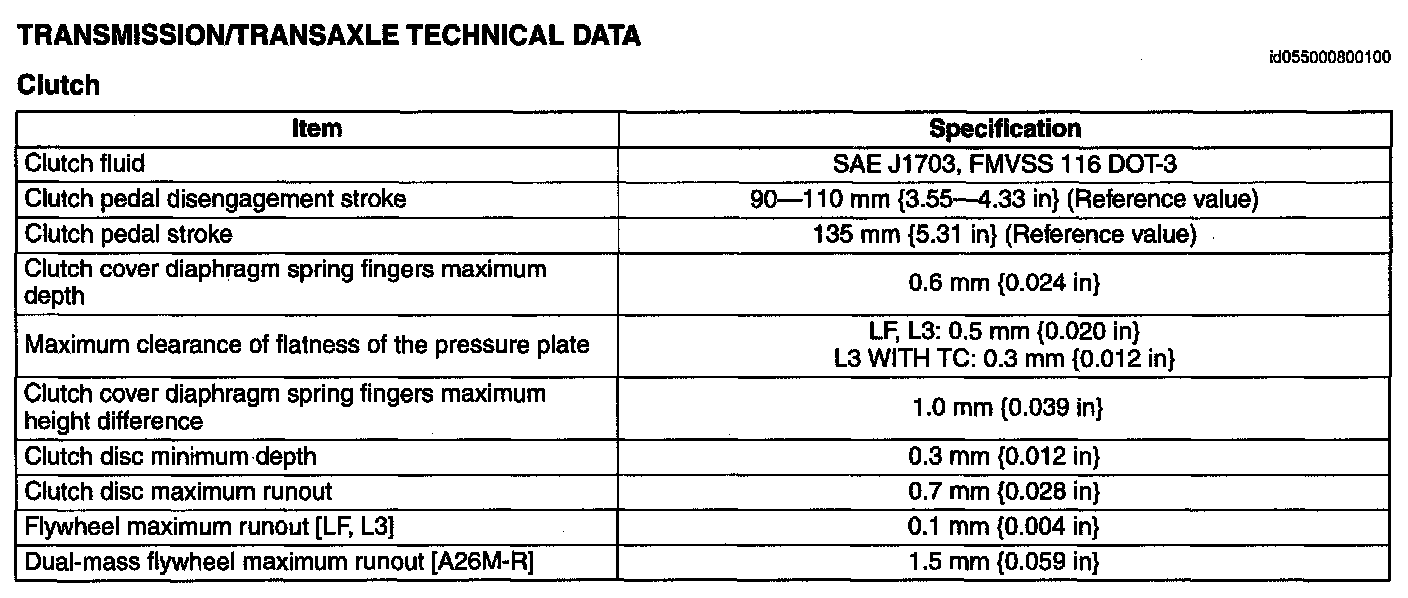

Transmission/Transaxle Technical Data

Clutch

Clutch Disc
Tighten the bolts evenly and gradually in a crisscross pattern.
Tightening torque 25-33 N-m (2.6-3.4 kgf-m, 18.5-24.4 ft-lbf)
