System Schematic

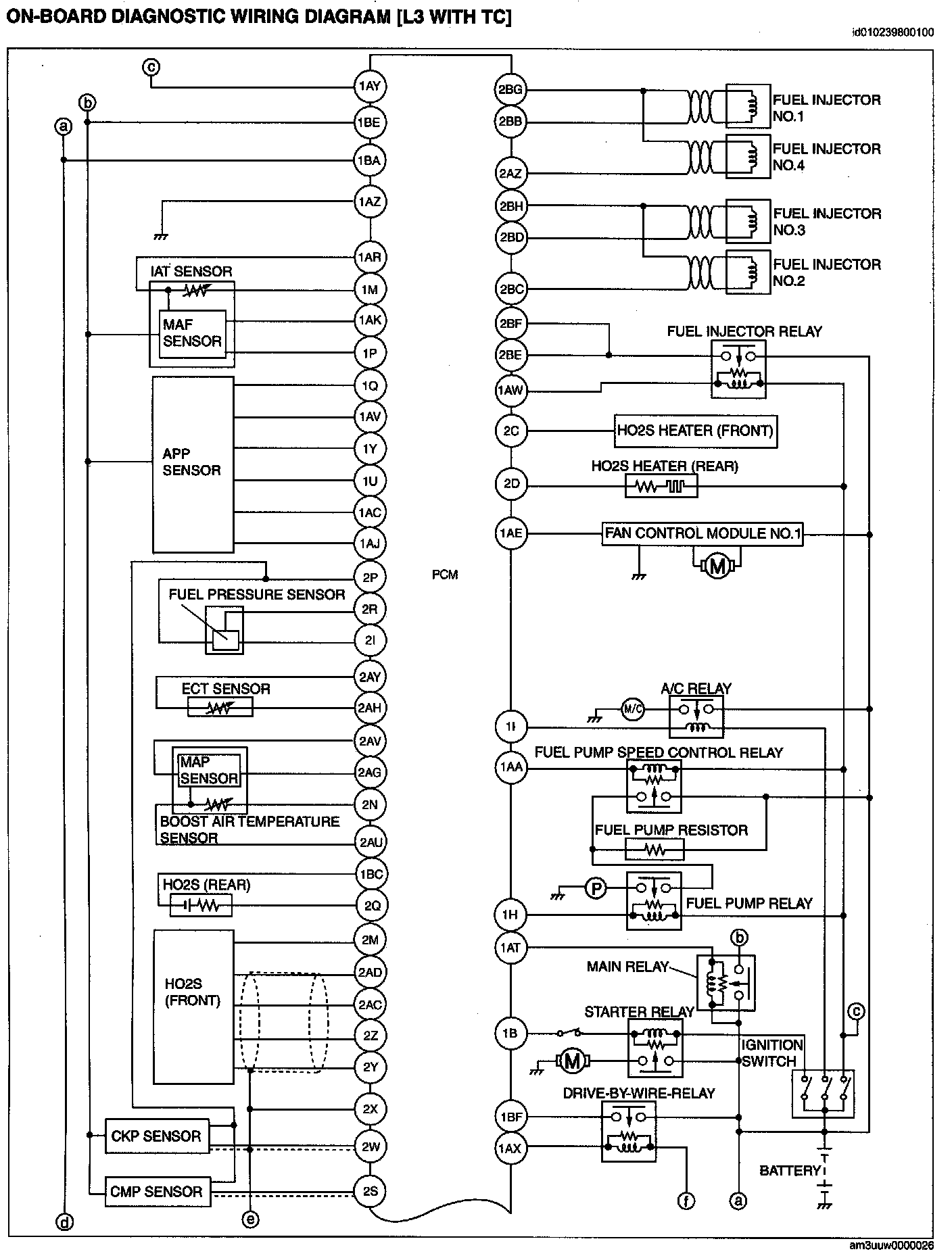

On-Board Diagnostic Wiring Diagram [L3 With TC] (Part 1):

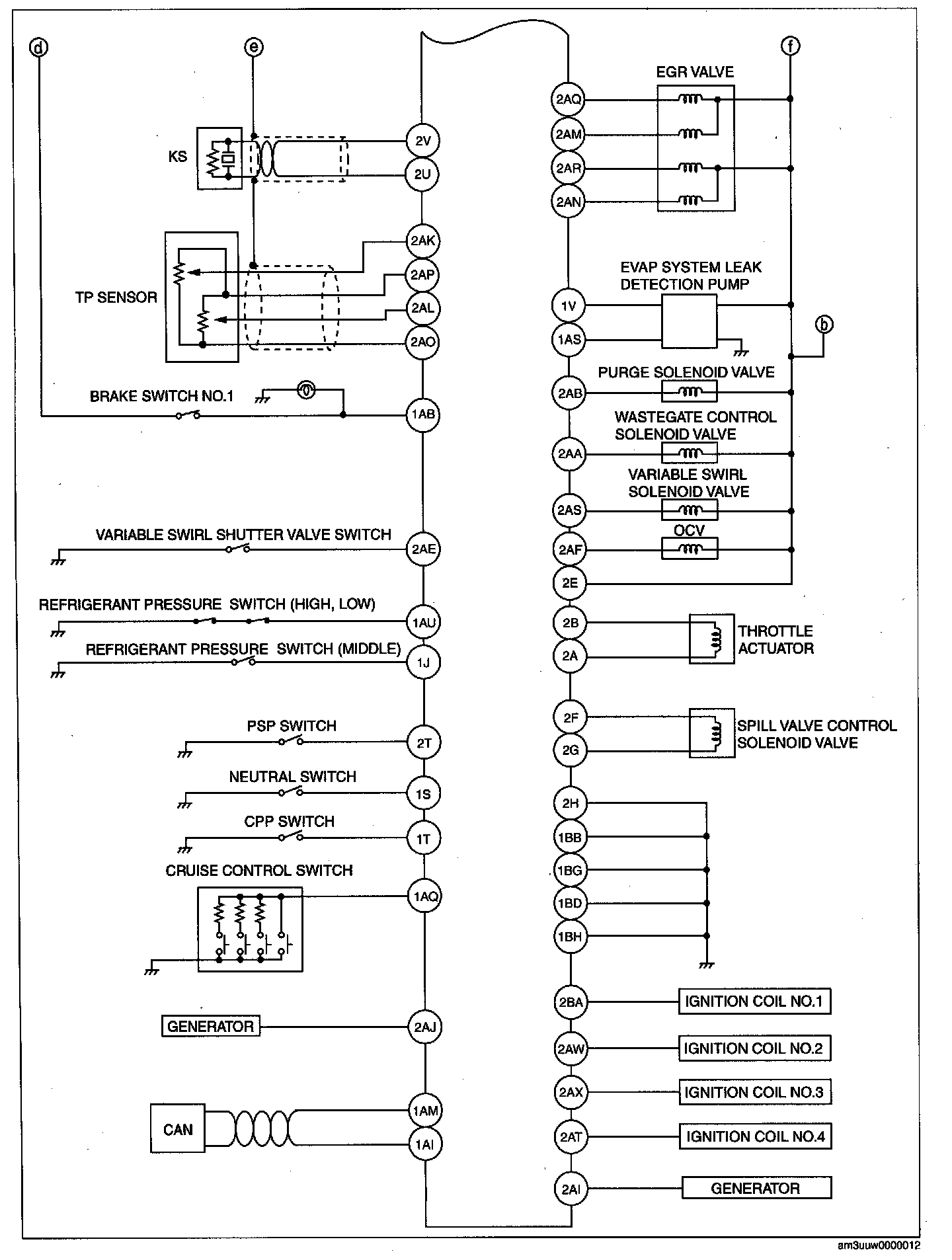

On-Board Diagnostic Wiring Diagram [L3 With TC] (Part 2):
