Home >> Mazda >> 2007 >> Mazdaspeed6 L4-2.3L Turbo >> Repair and Diagnosis >> Specifications >> Pressure, Vacuum and Temperature Specifications >> Engine >> System Specifications

System Specifications

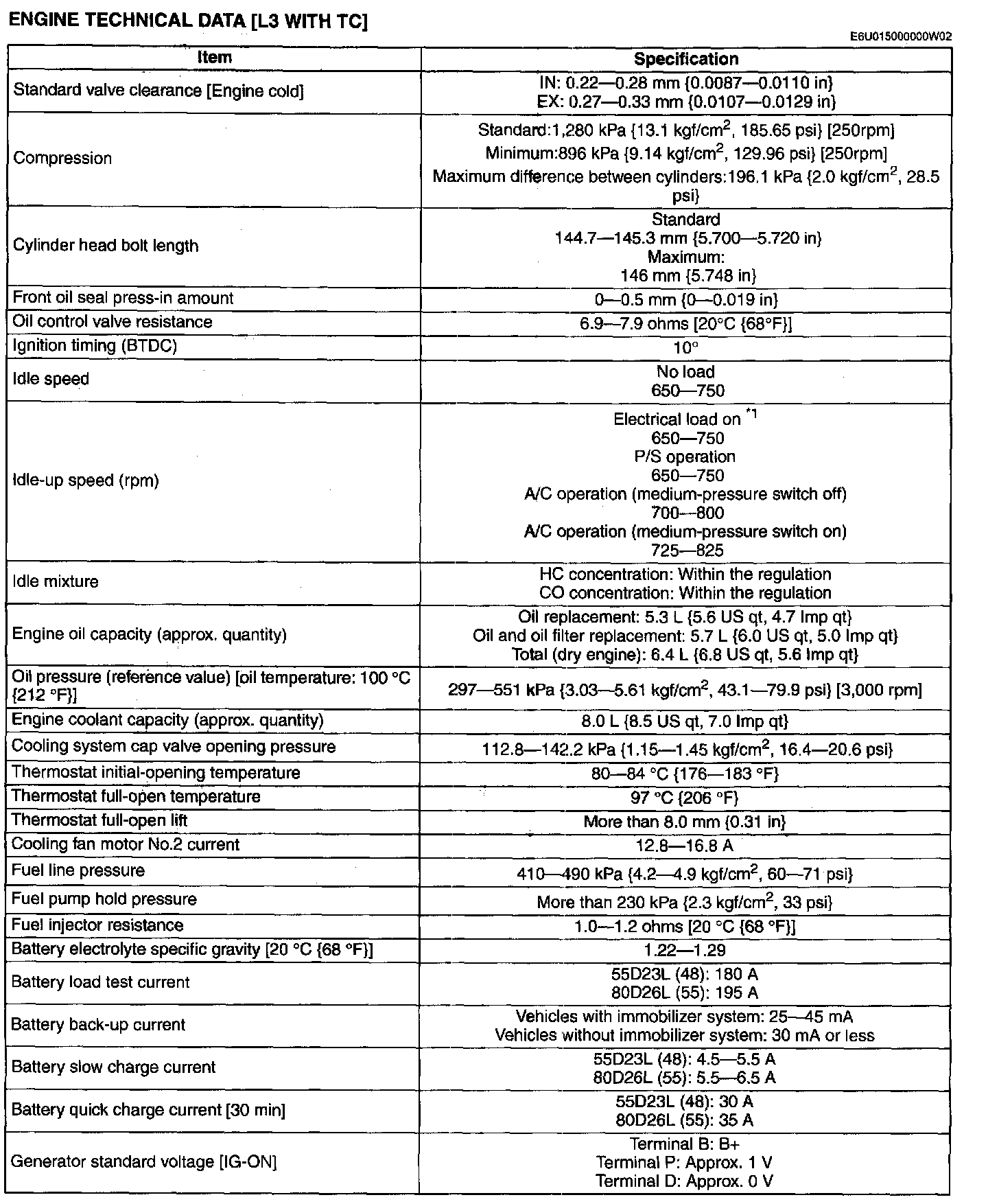

ENGINE TECHNICAL DATA [L3 WITH TC]

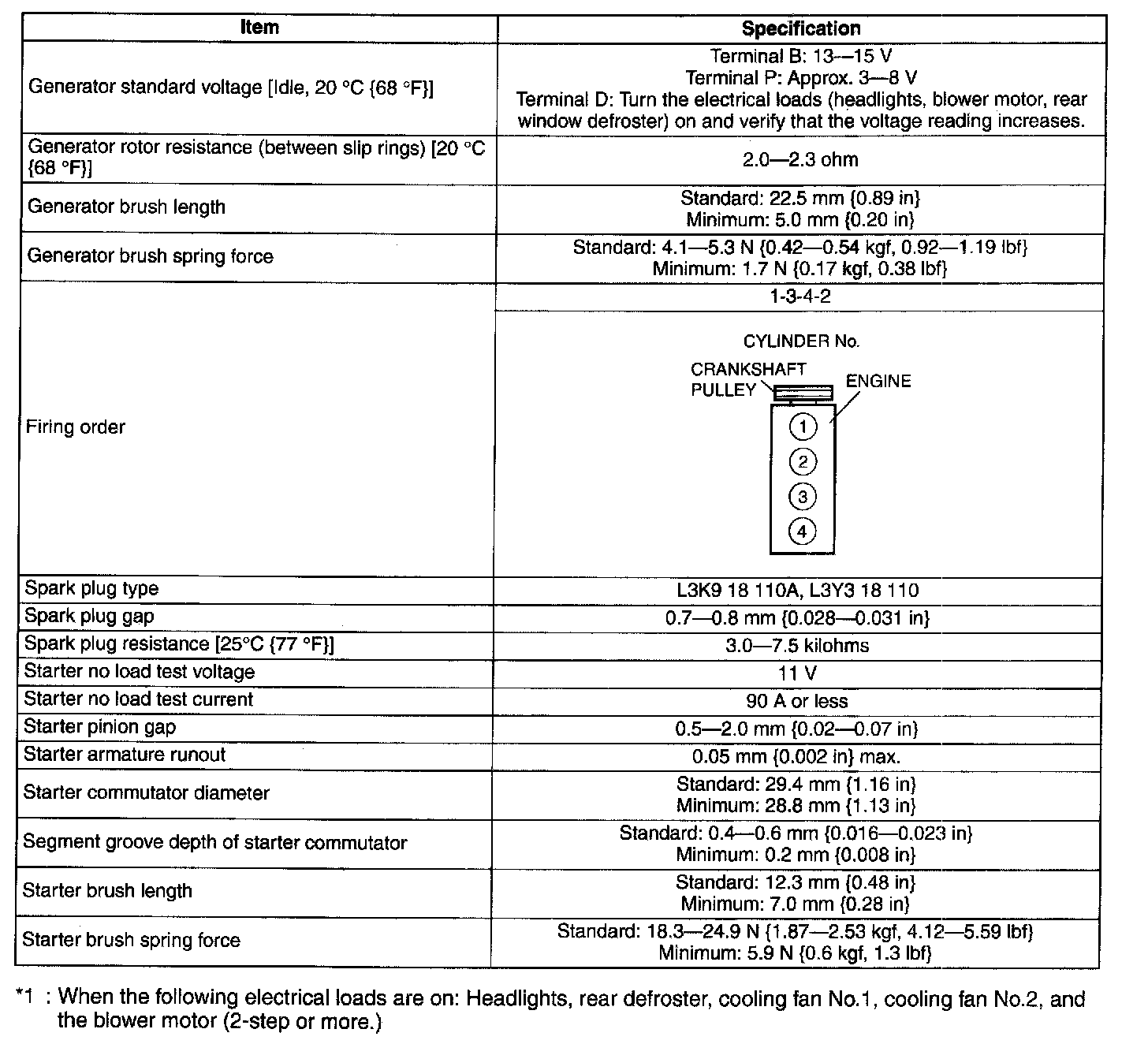

ENGINE TECHNICAL DATA [L3 WITH TC]:

ENGINE TECHNICAL DATA [L3 WITH TC]:
