Home >> Mazda >> 2007 >> Mazdaspeed6 L4-2.3L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Connecting Rod, Engine

Connecting Rod, Engine

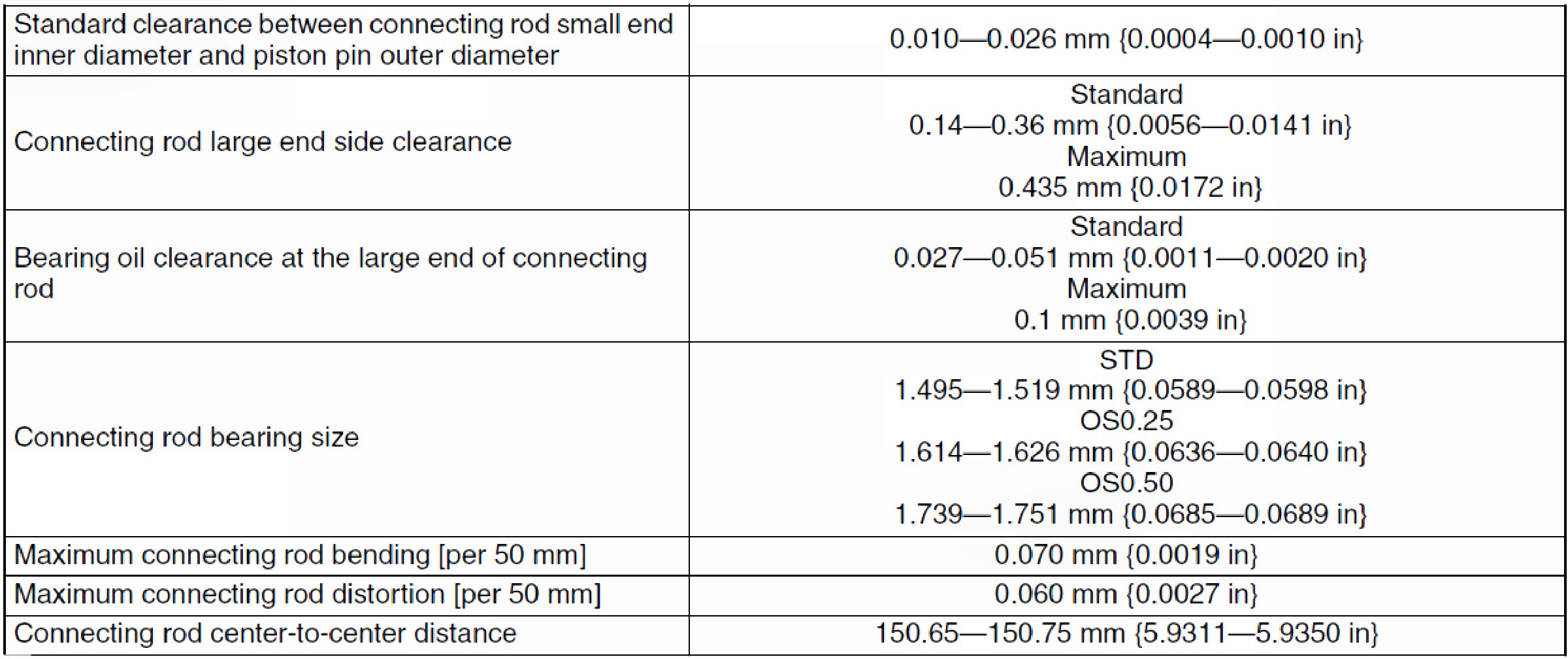

Specifications

Connecting Rod Nut/Bolt
Torque 26 - 31 Nm (19.2 - 22.8 ft lbf) + 80° - 100°
