Main Relay (Computer/Fuel System)
>>
Testing and Inspection
Main Relay (Computer/Fuel System): Testing and Inspection

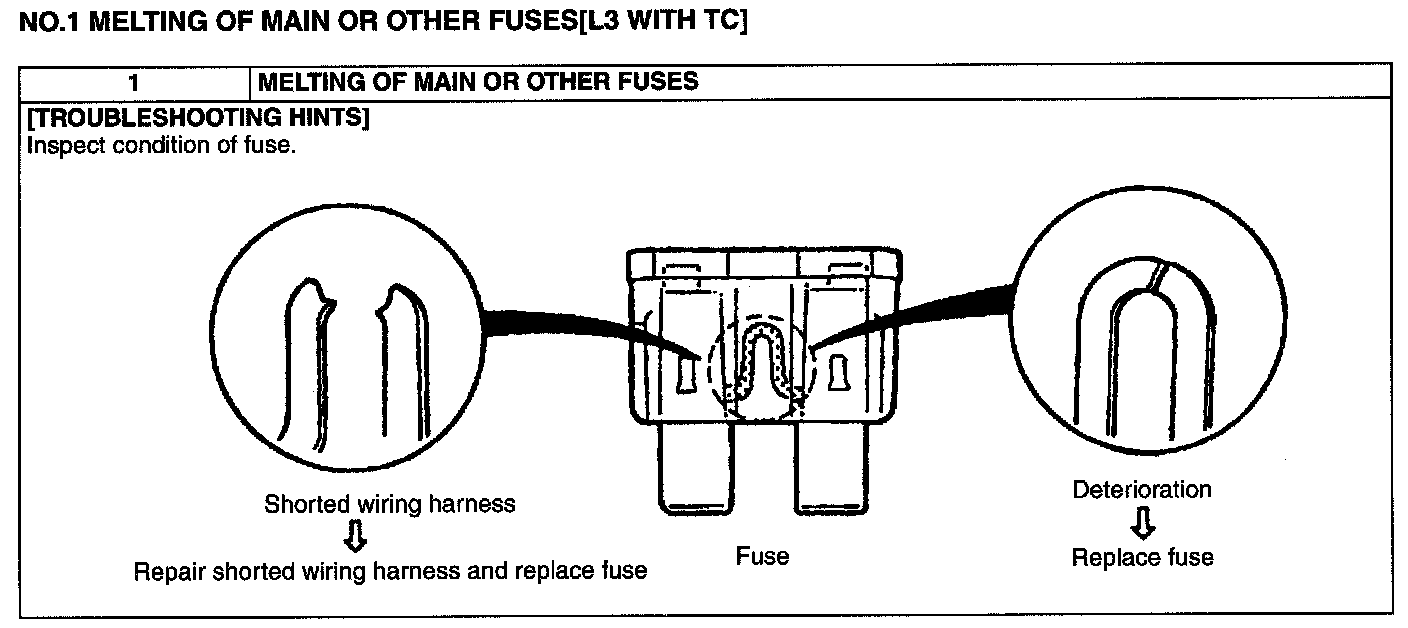

No.1 Melting Of Main Or Other Fuses[L3 With TC]:

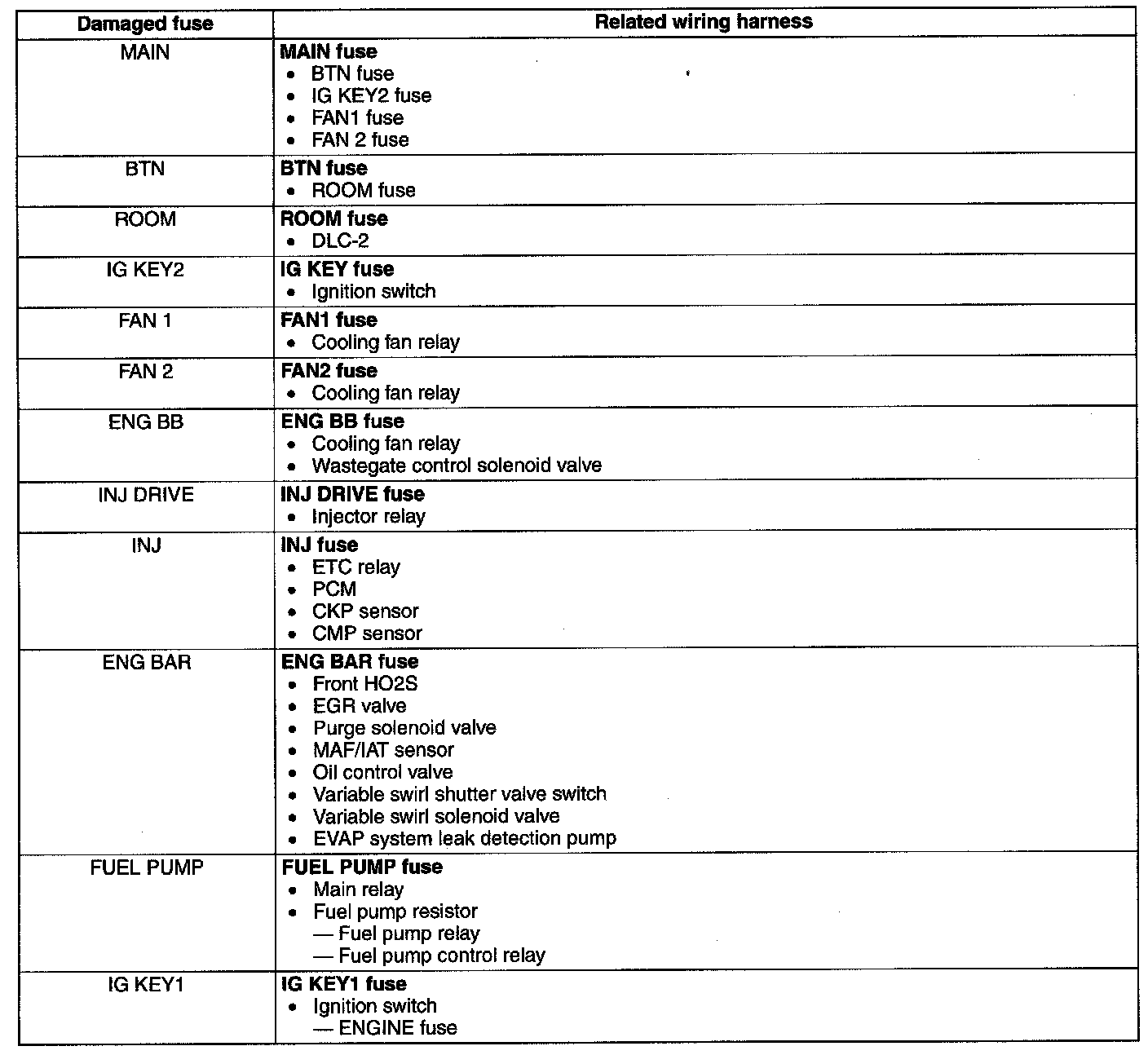

Part 2:
