Home >> Mazda >> 2007 >> Mazdaspeed6 L4-2.3L Turbo >> Repair and Diagnosis >> Lighting and Horns >> Locations

Lighting and Horns: Locations

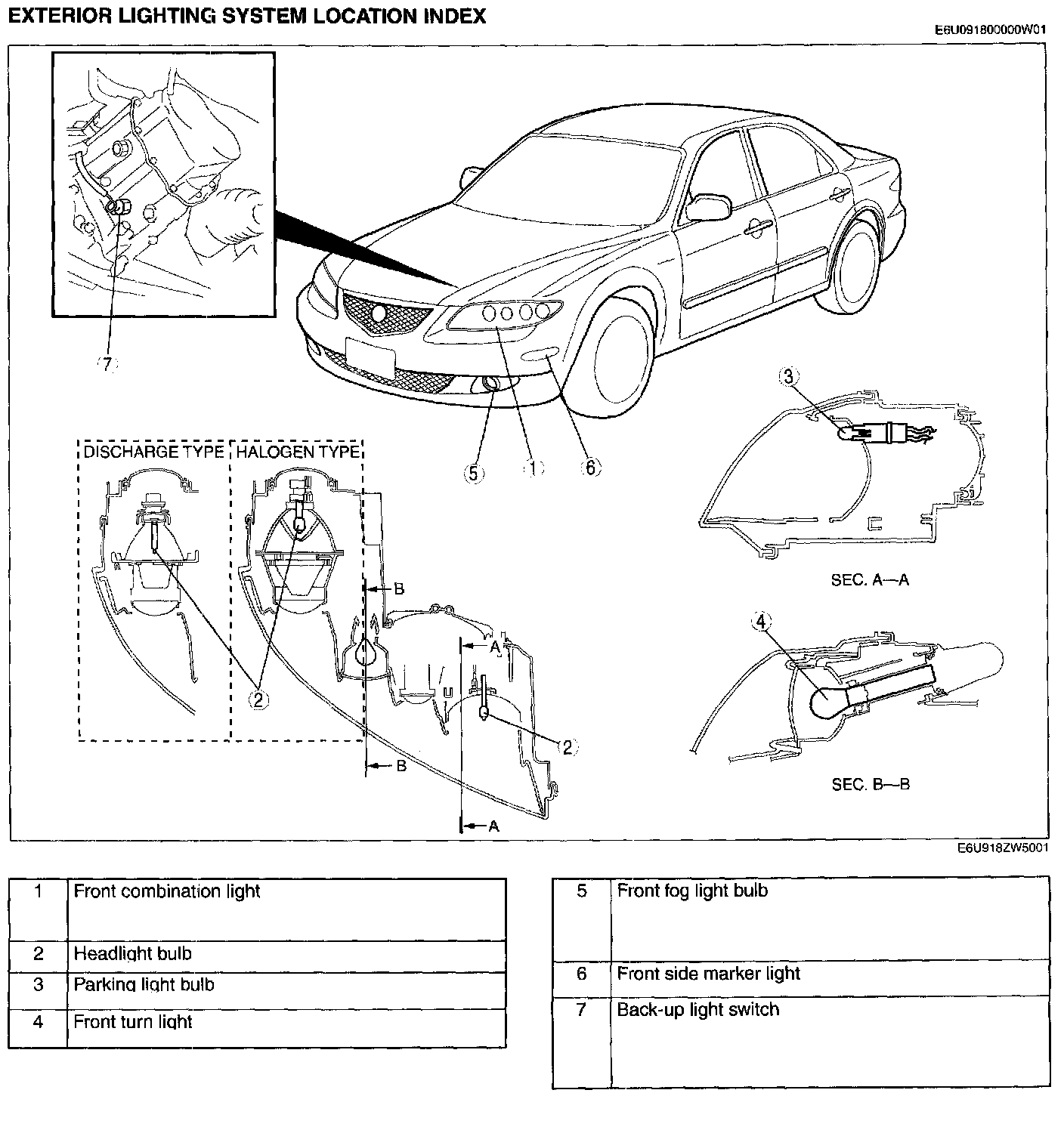

Exterior Lighting System Location Index:

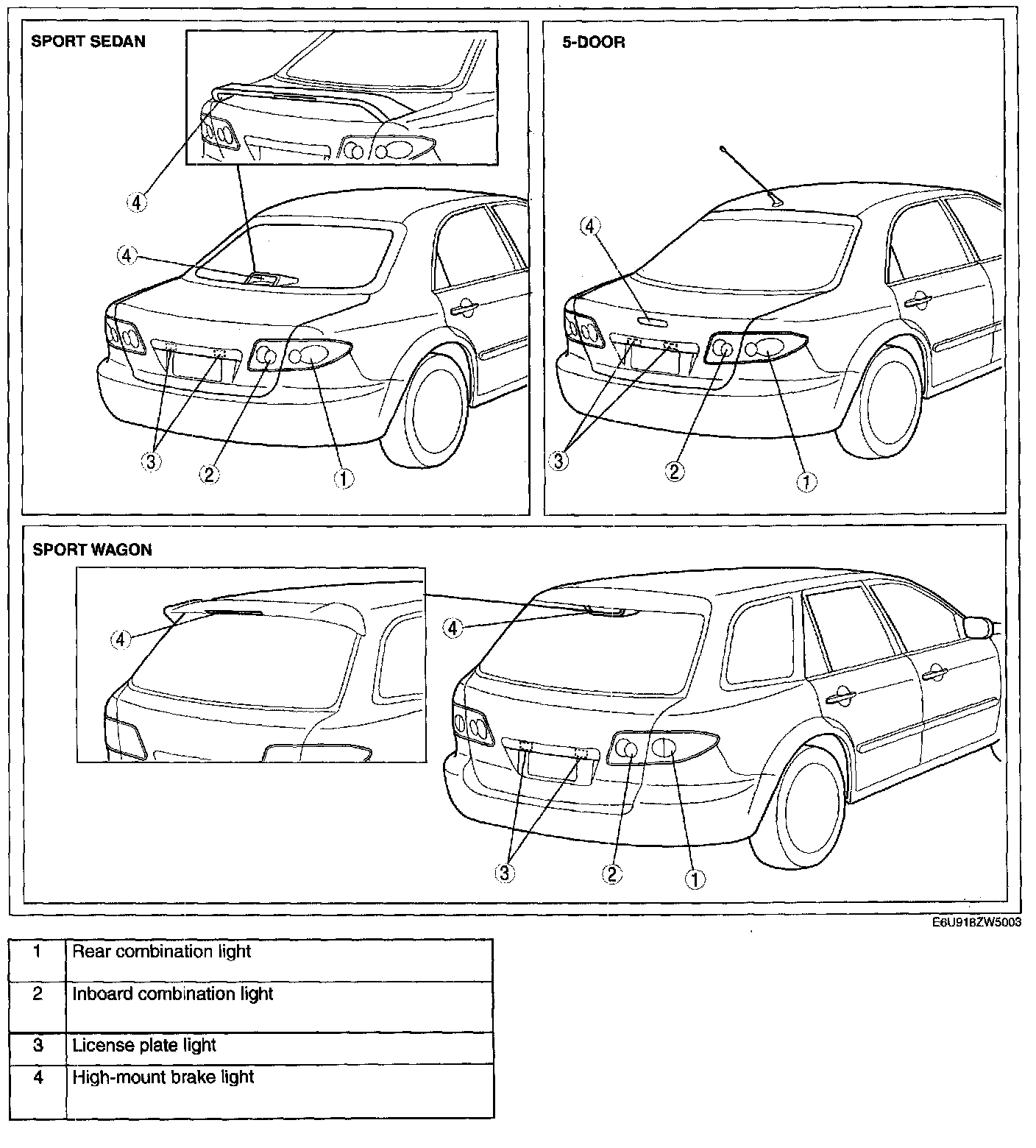

Exterior Lighting System Location Index:

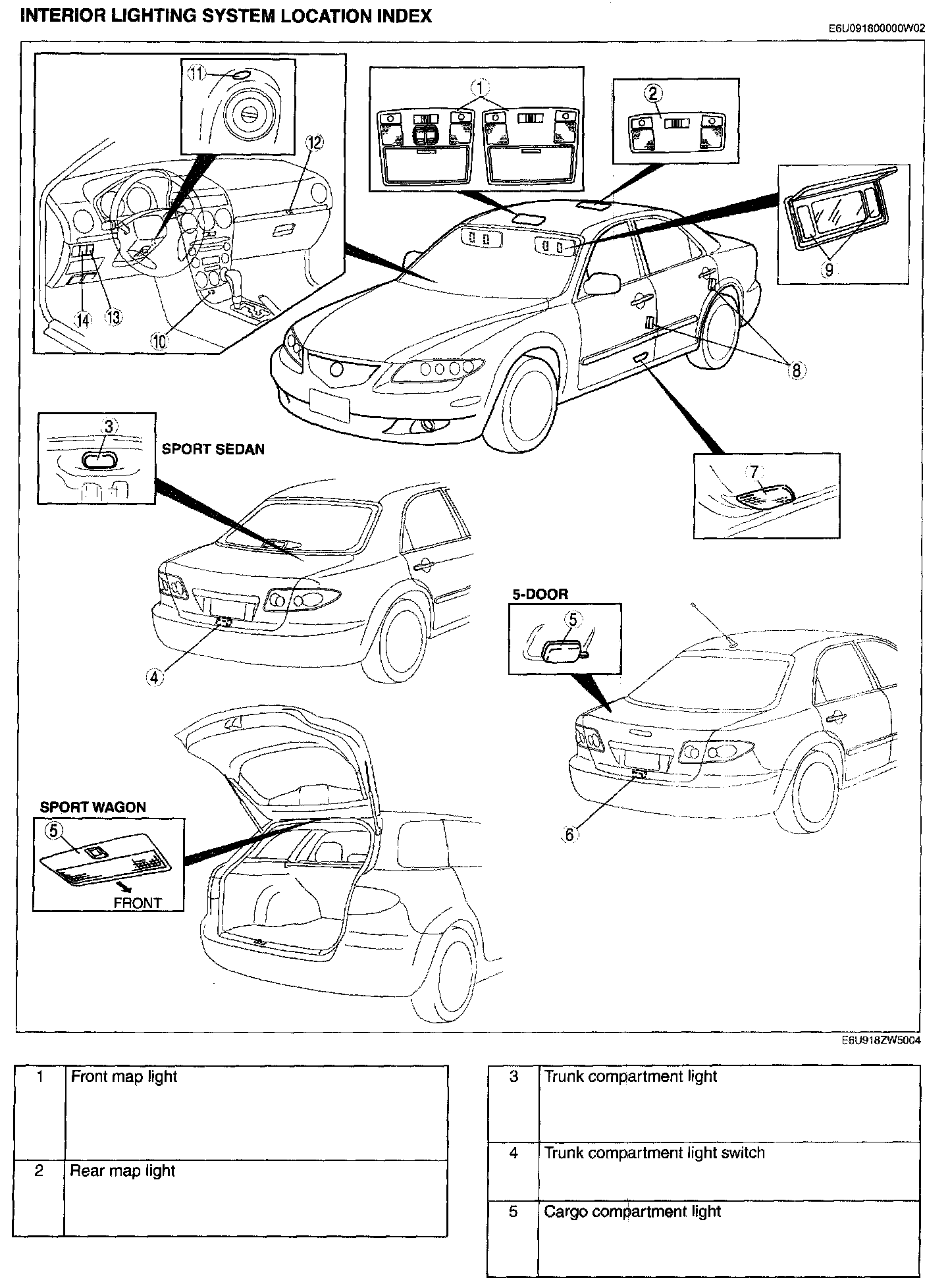

Interior Lighting System Location Index:
