Home >> Mazda >> 2007 >> Mazdaspeed6 L4-2.3L Turbo >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Advanced Keyless System >> Diagnosis By Symptom >> No.3 Advanced Keyless Entry Function Inoperative

No.3 Advanced Keyless Entry Function Inoperative

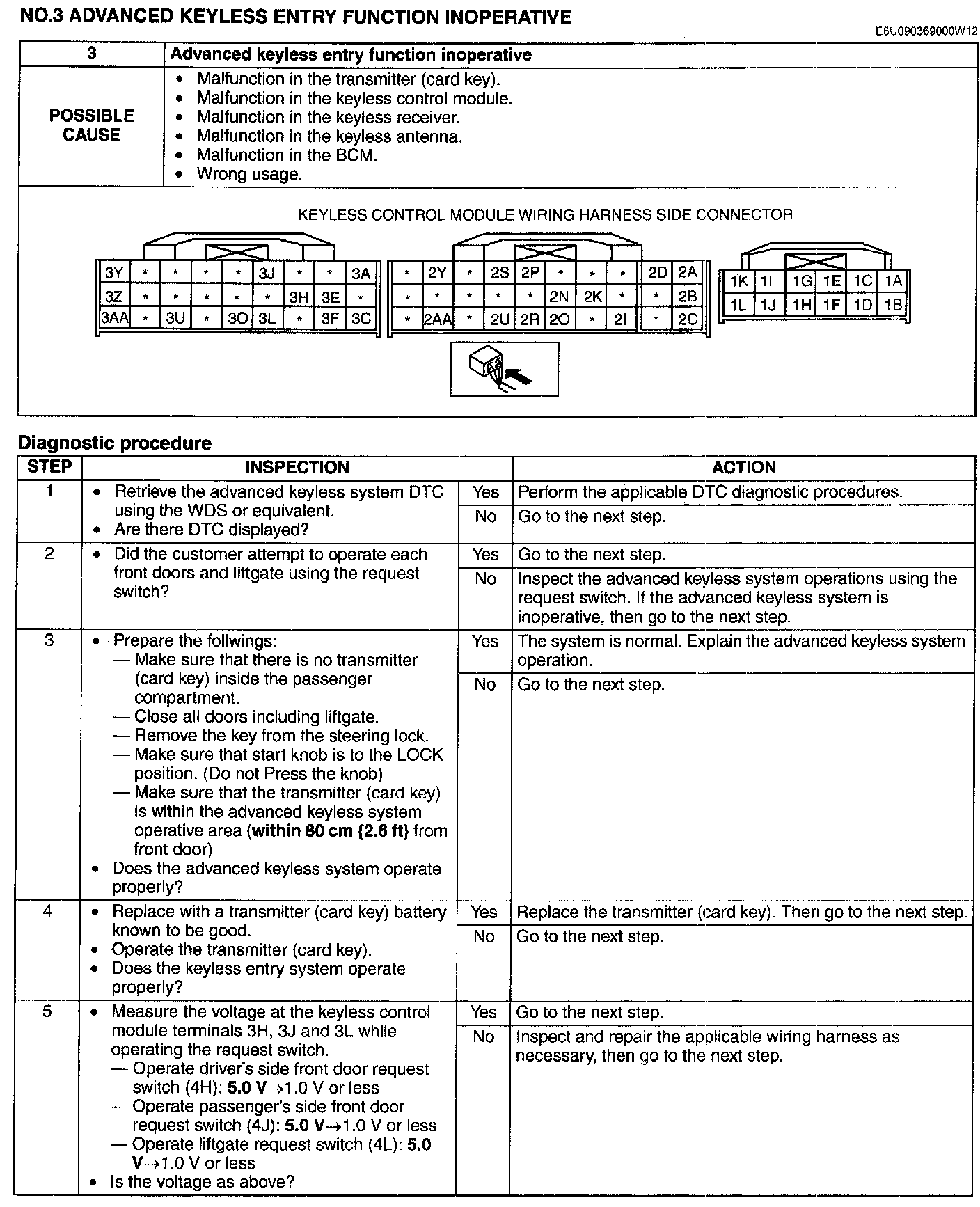

Step 1-Step 5:

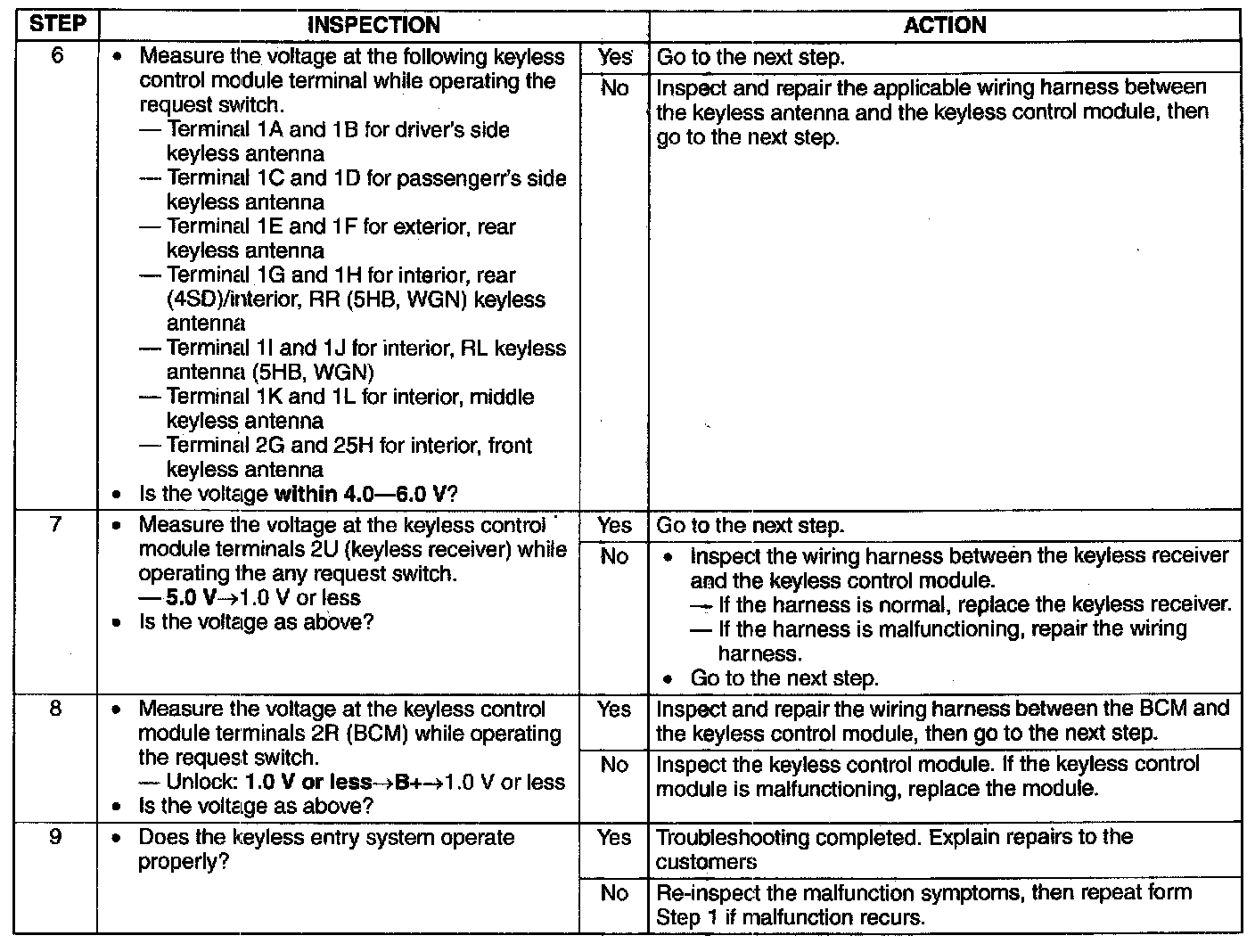

Step 6-Step 9:
