Multiplex Communication System (L3 With TC)

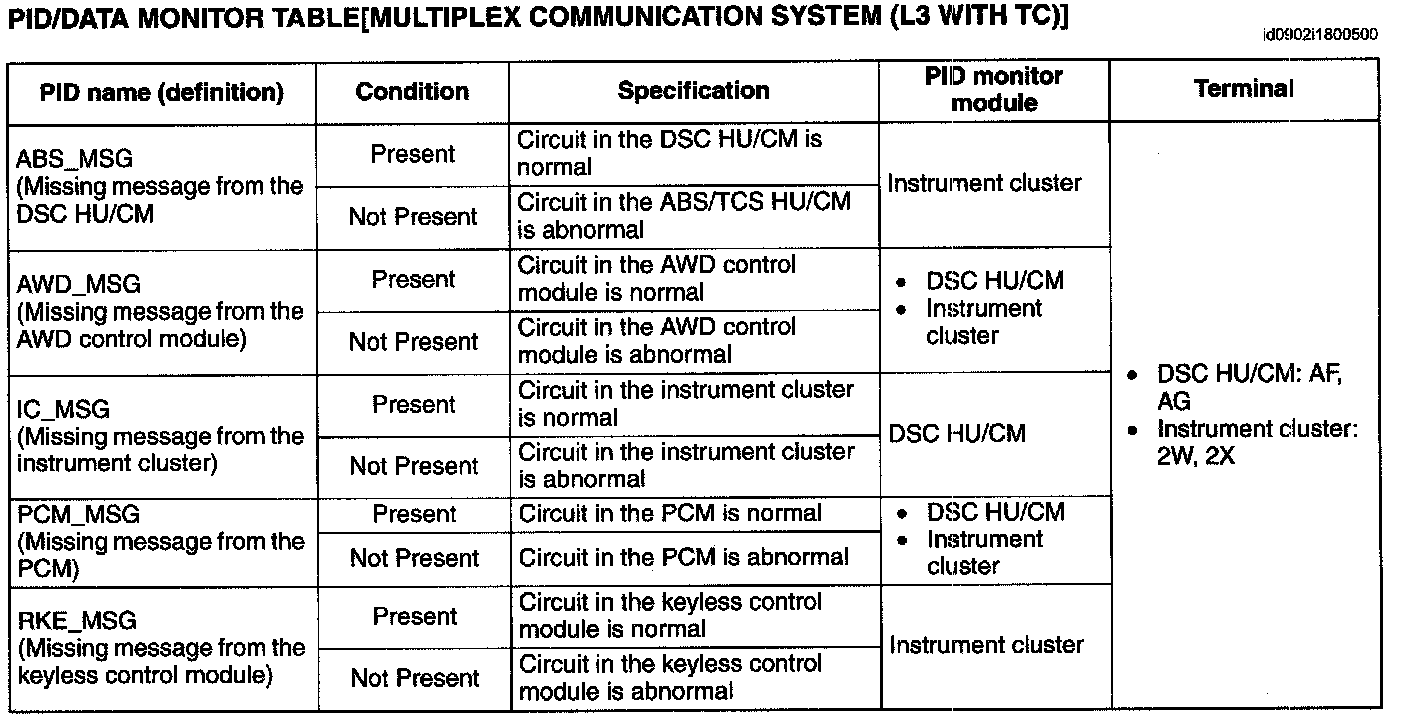

PID/DATA Monitor Table[Multiplex Communication System(L3 With TC)]:
