Home >> Mazda >> 2007 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Locations

Shift Interlock: Locations

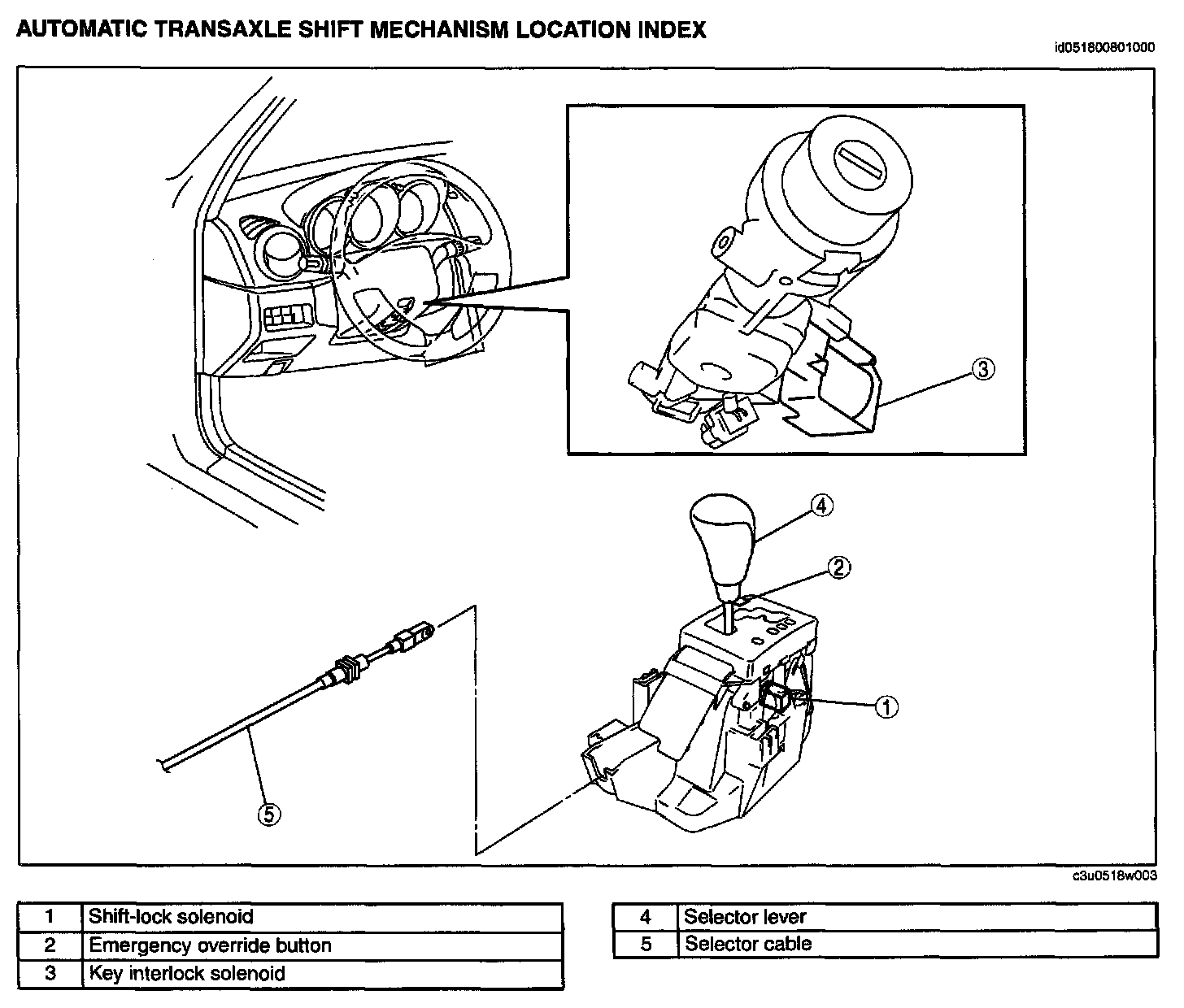

AUTOMATIC TRANSAXLE SHIFT MECHANISM LOCATION INDEX

Automatic Transaxle Shift Mechanism Location Index:
