System Specifications

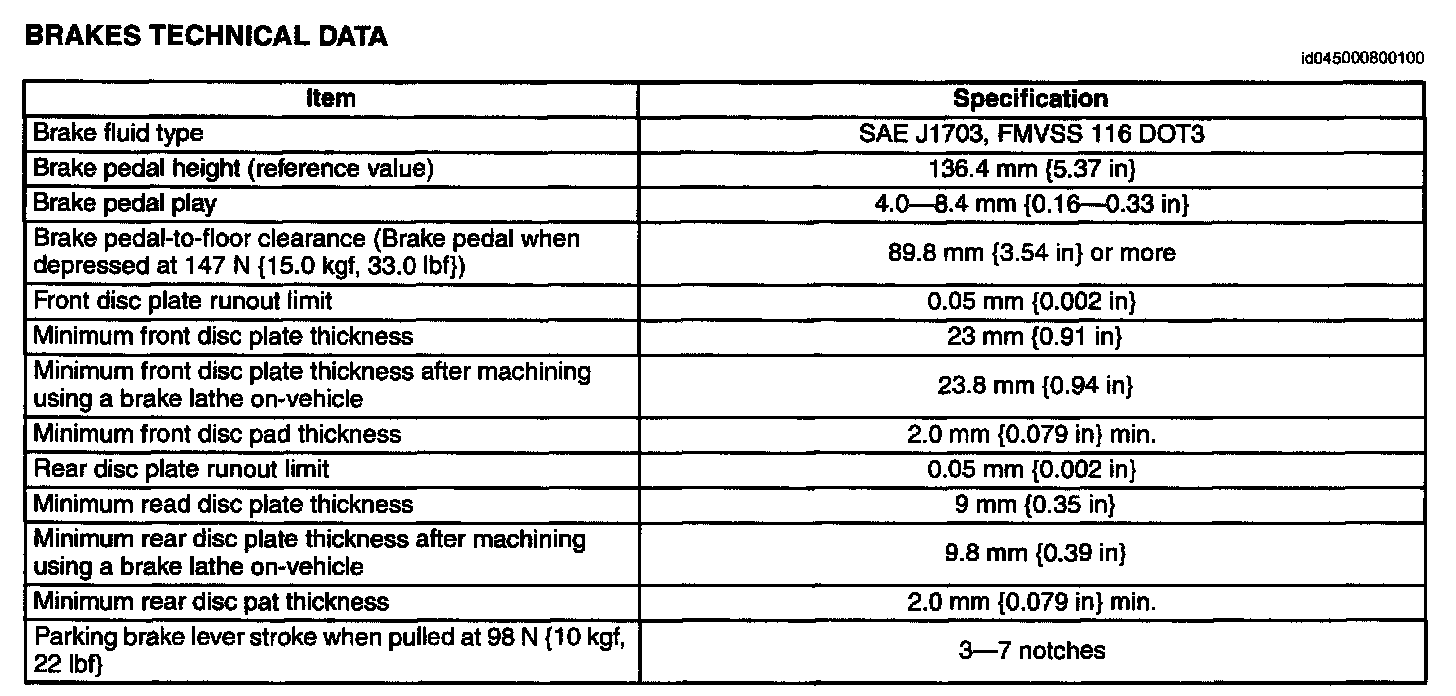

BRAKES TECHNICAL DATA

Brakes Technical Data:




Master Cylinder Fluid Pressure:




Master Cylinder Fluid Pressure (except L3 With TC):




Master Cylinder Fluid Pressure (L3 With TC):




Proportioning Valve Fluid Pressure:
