System Schematic

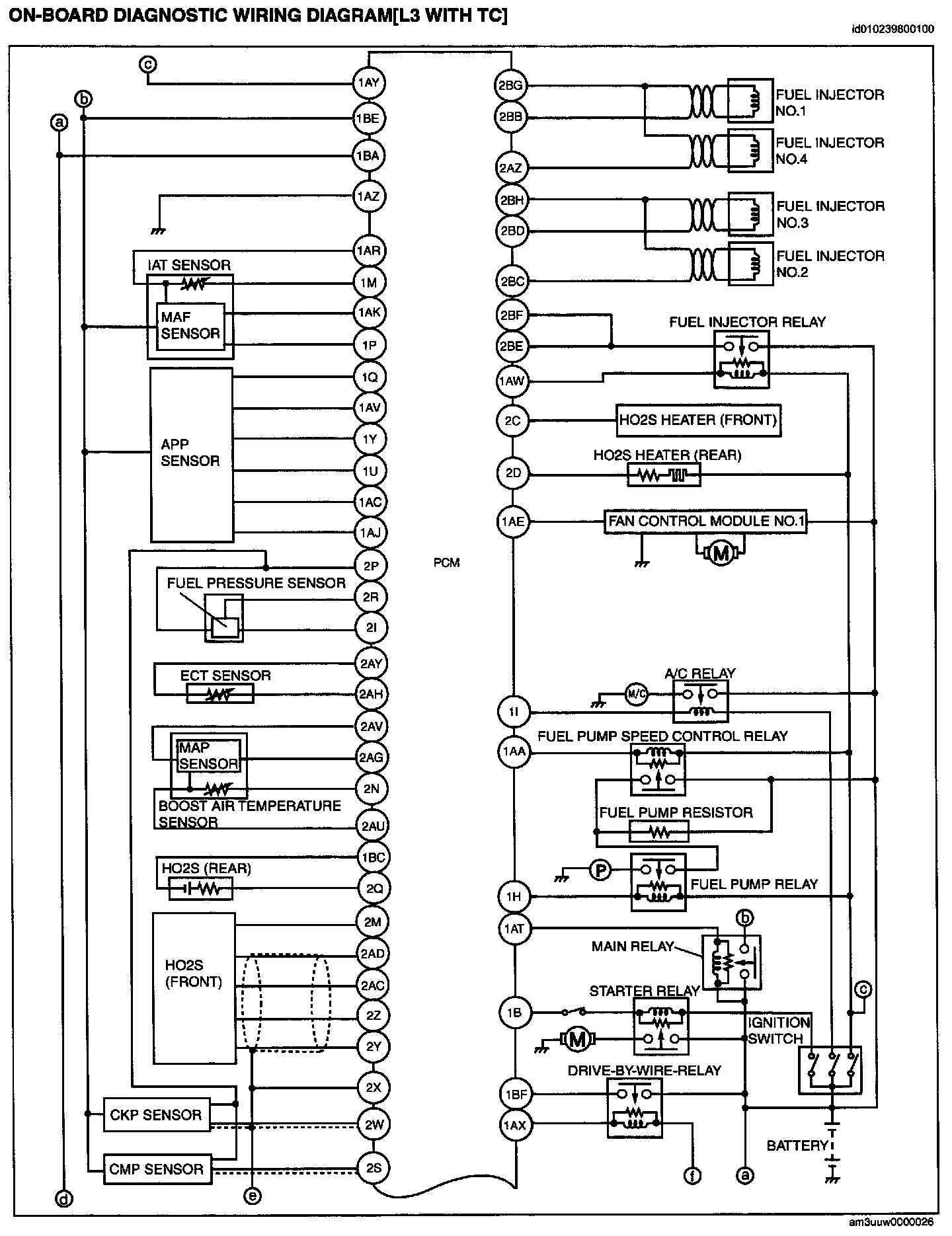

On-Board Diagnostic Wiring Diagram[L3 With TC] Part 1:

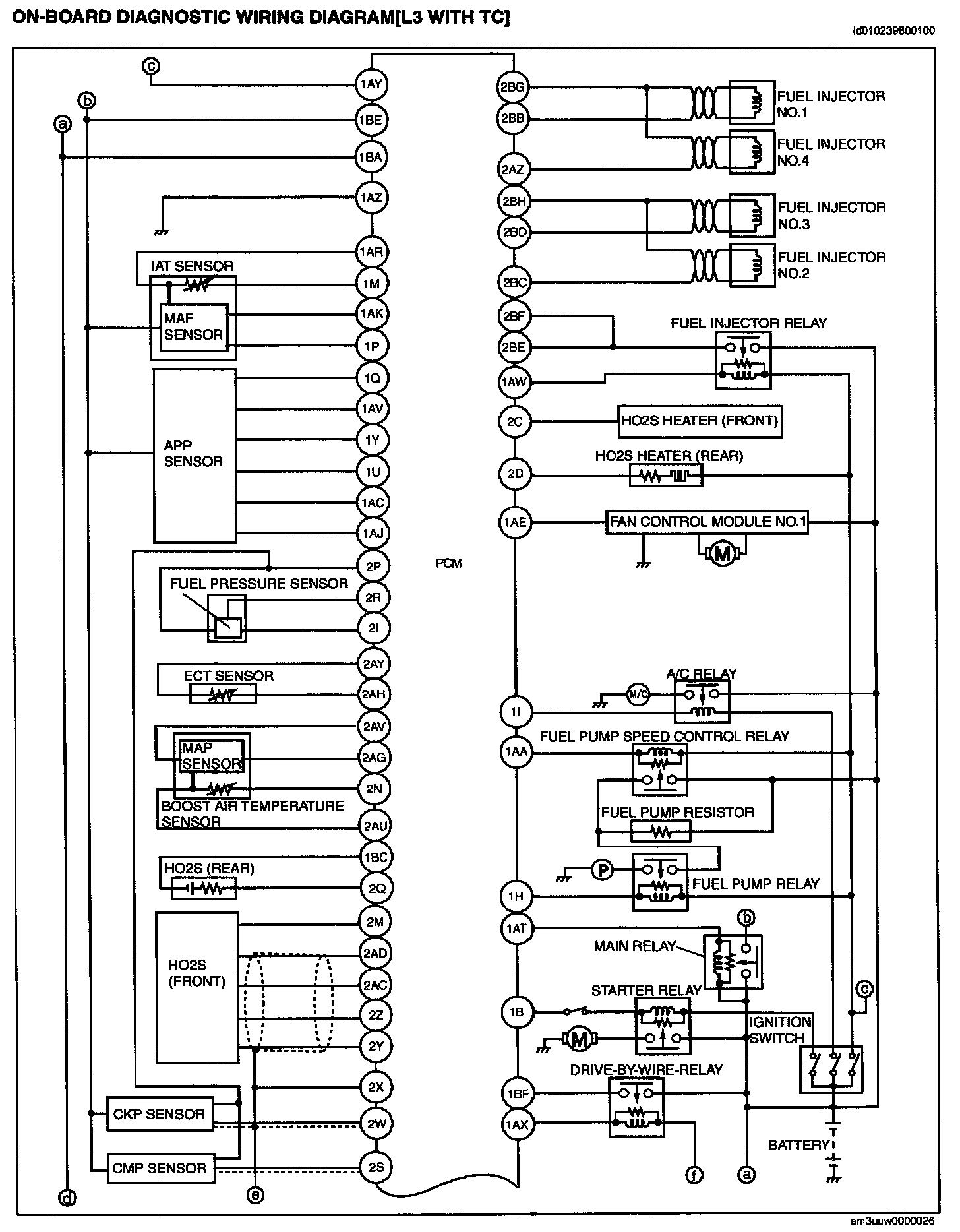

On-Board Diagnostic Wiring Diagram[L3 With TC] Part 2:
