Monitoring System and Control System Device Relationship Chart

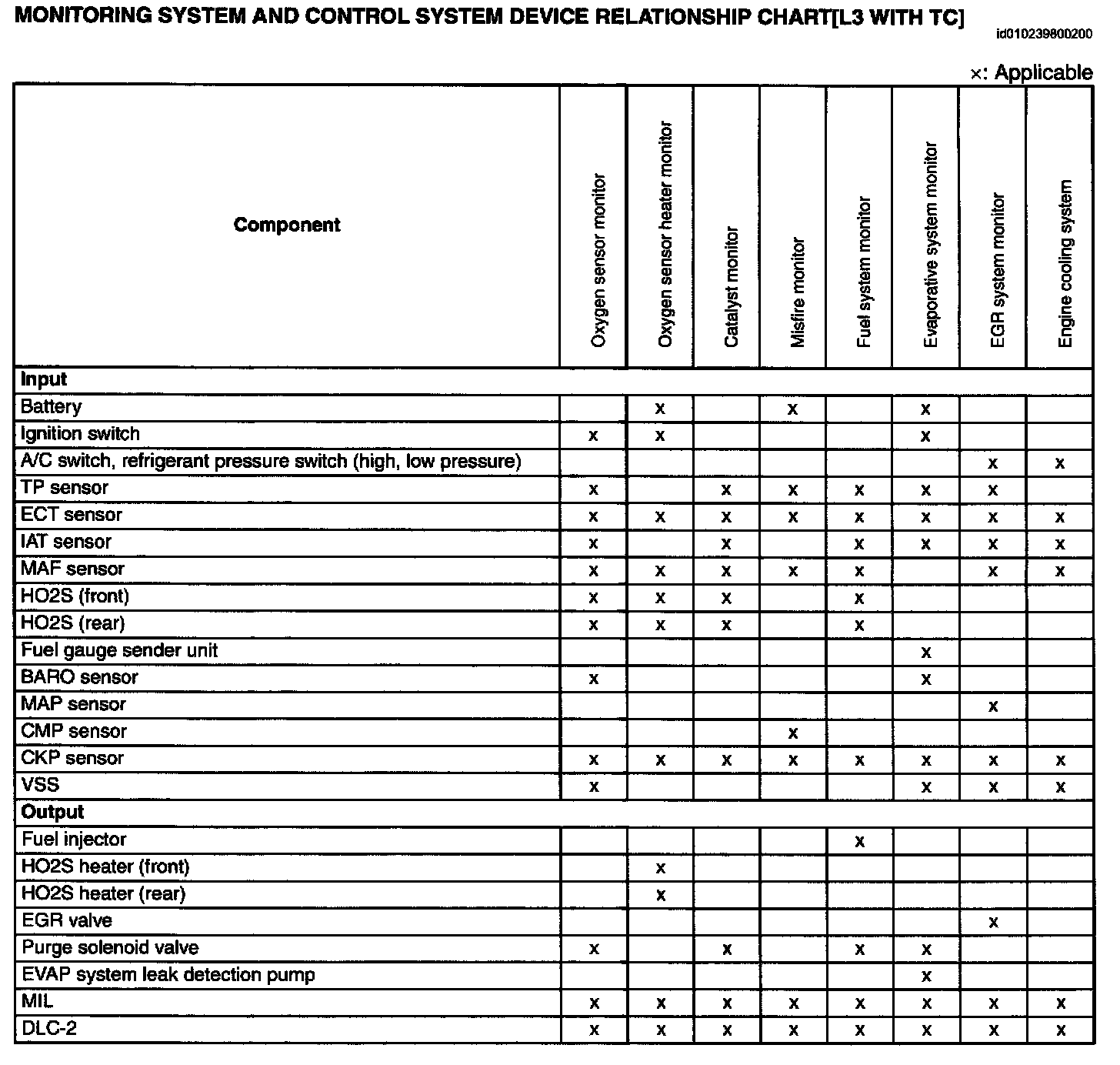

Monitoring System And Control System Device Relationship Chart[L3 With TC]:
