Symptom Related Diagnostic Procedures

No.1 Melting Of Main Or Other Fuses[L3 With TC]:

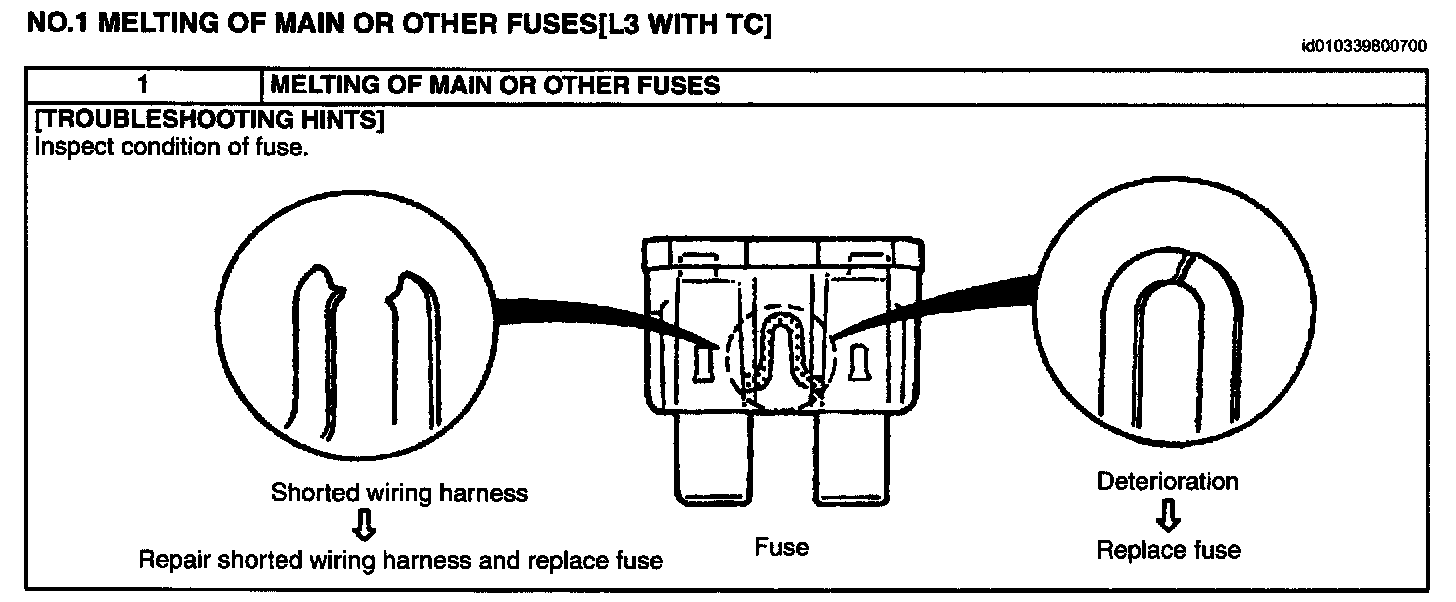

Part 1:

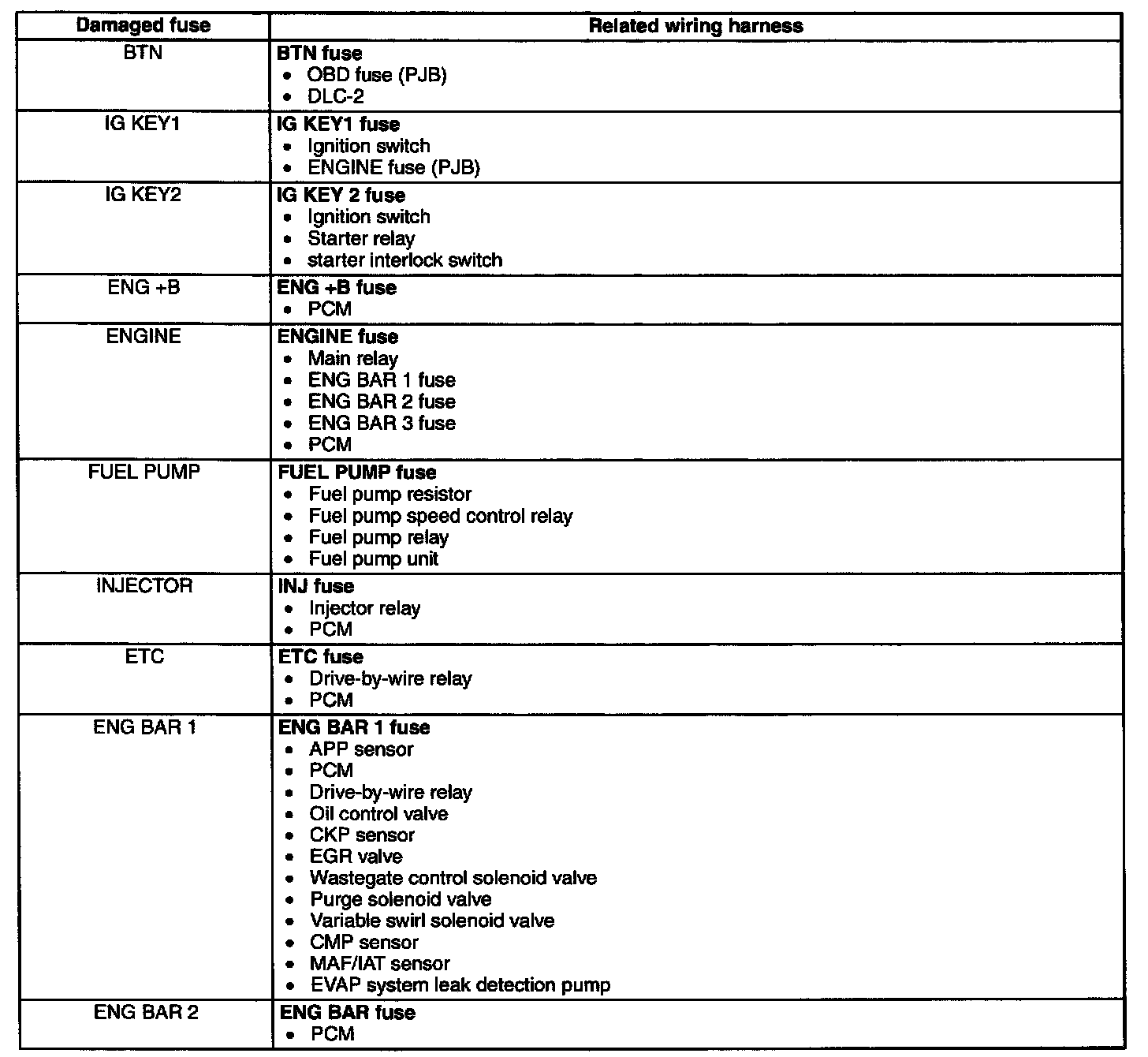

Part 2:
