Home >> Mazda >> 2007 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> SAS Control Module

SAS Control Module

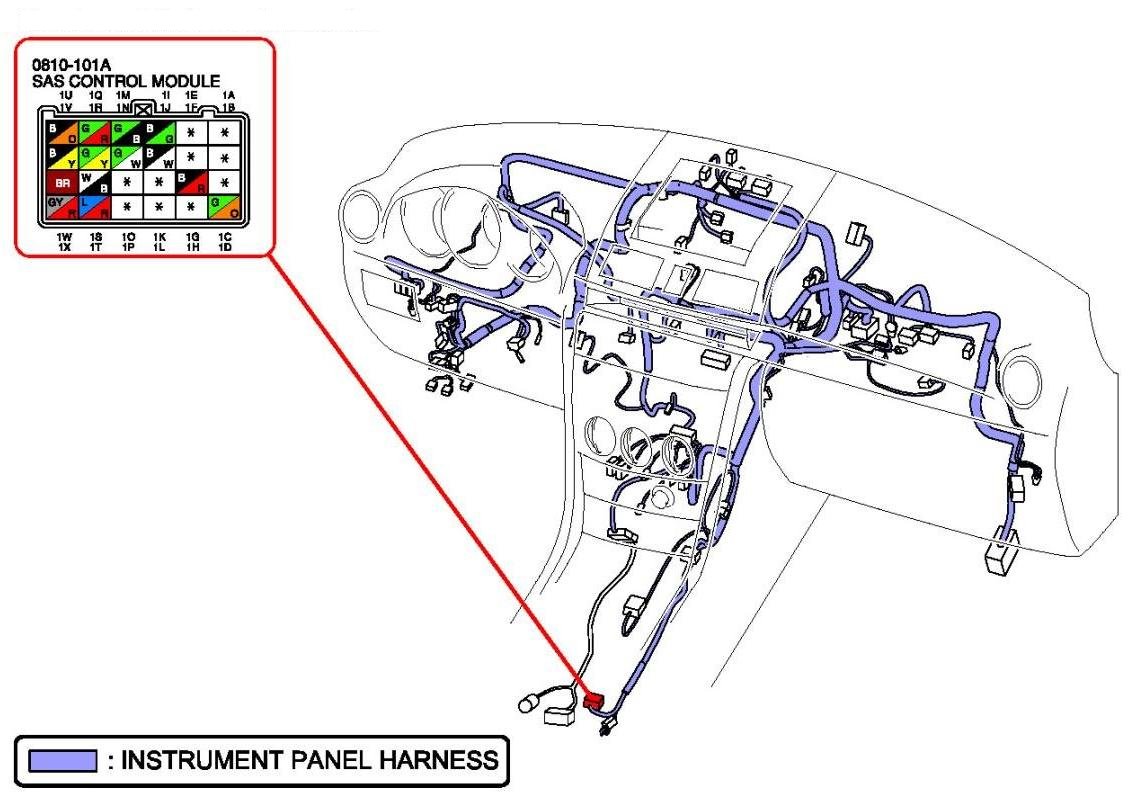

SAS Control Module:

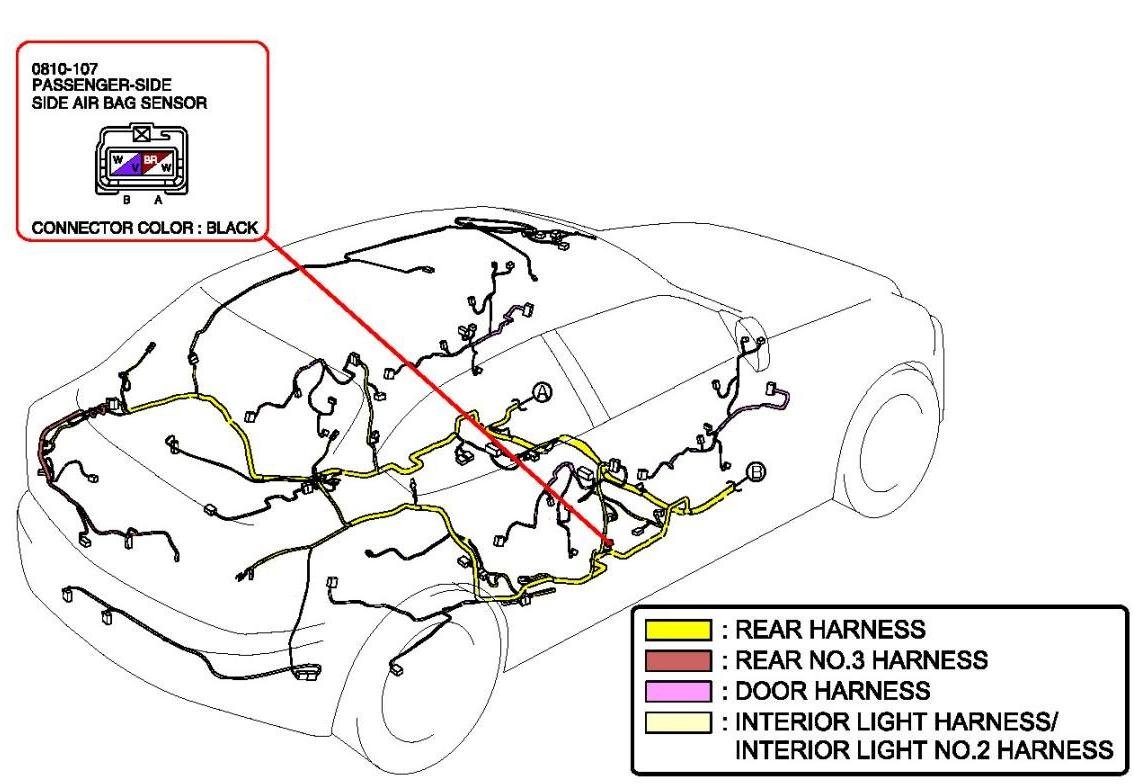

Passenger-Side Side Air Bag Sensor:



SAS Control Module:
