ABS Wheel Speed Sensor LR

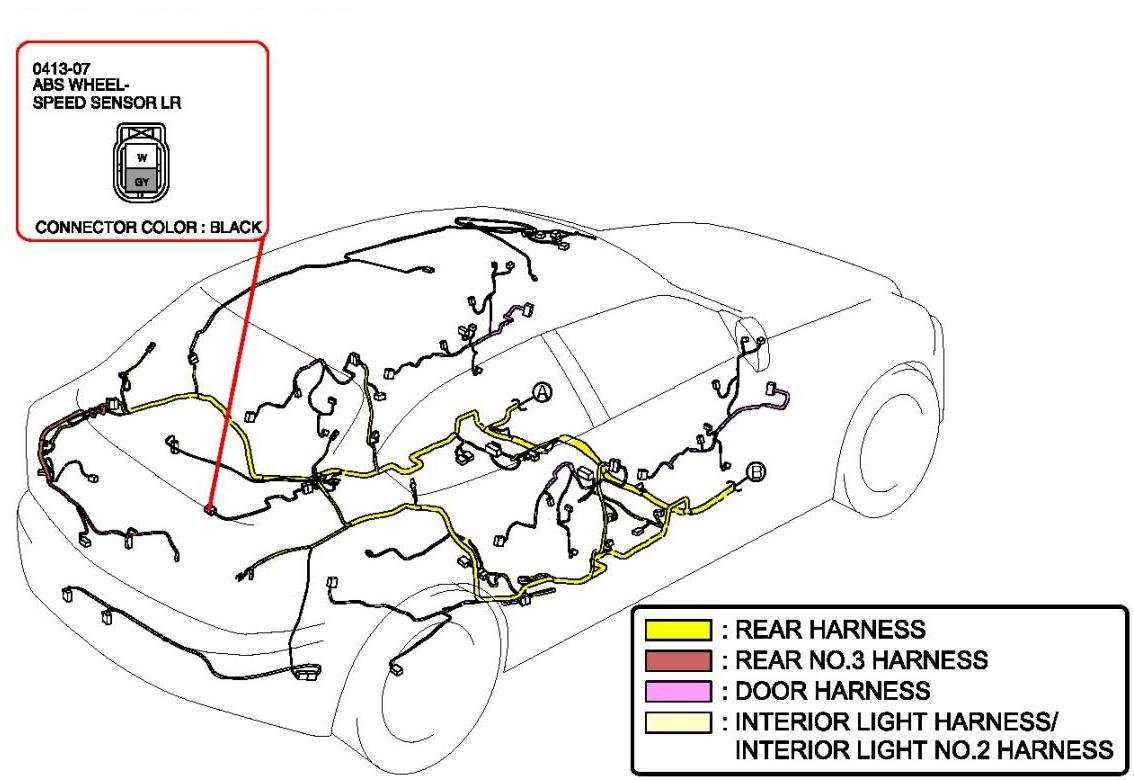

ABS Wheel Speed Sensor LR:

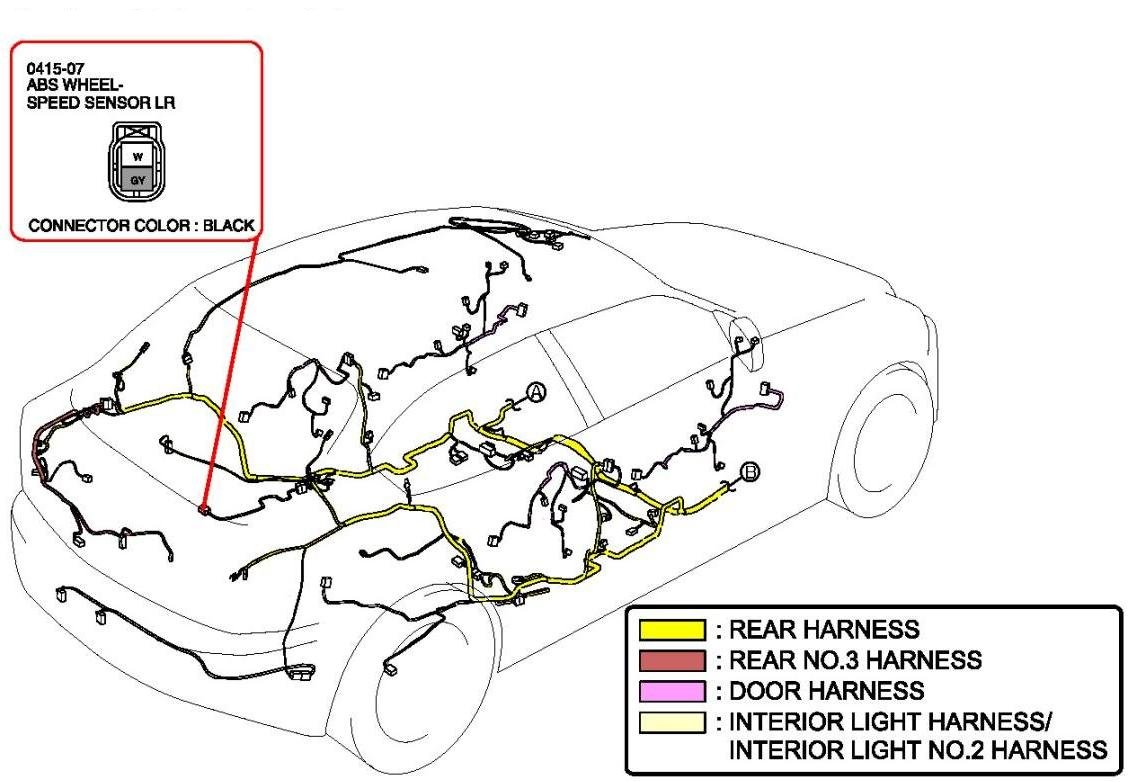

ABS Wheel Speed Sensor LR:

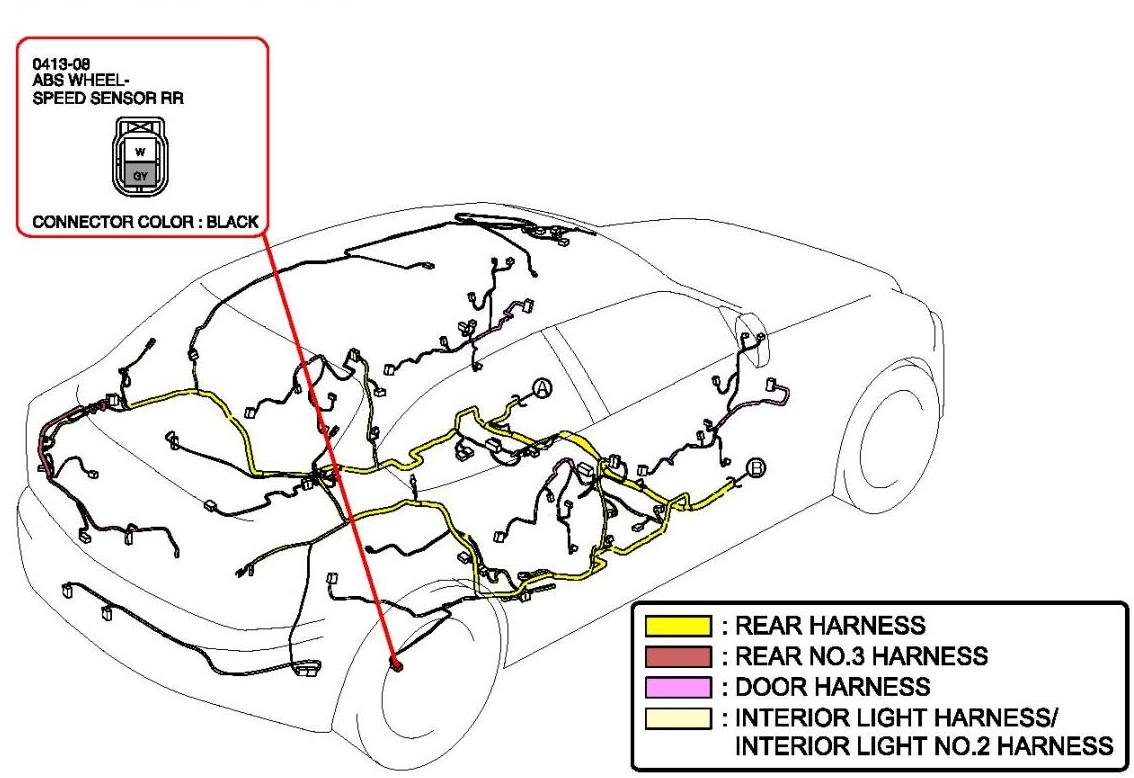

ABS Wheel Speed Sensor RR:

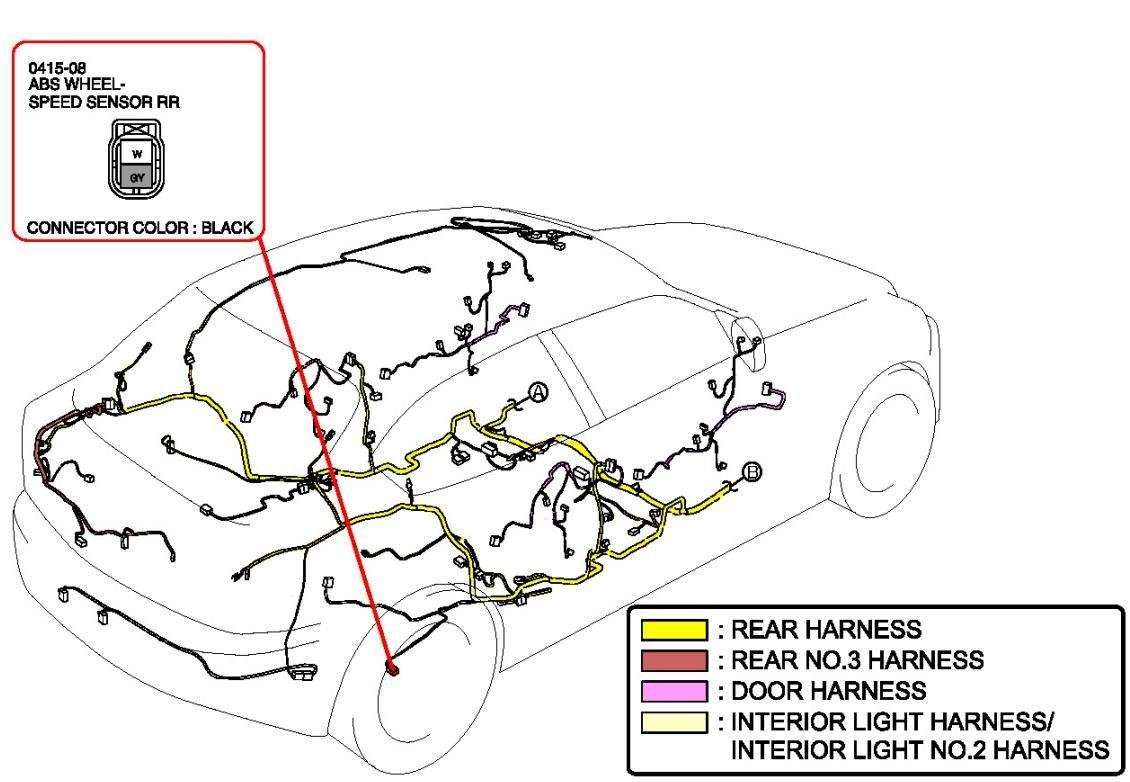

ABS Wheel Speed Sensor RR:
