Home >> Mazda >> 2006 >> Mazdaspeed6 L4-2.3L Turbo >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection

Starting System: Testing and Inspection

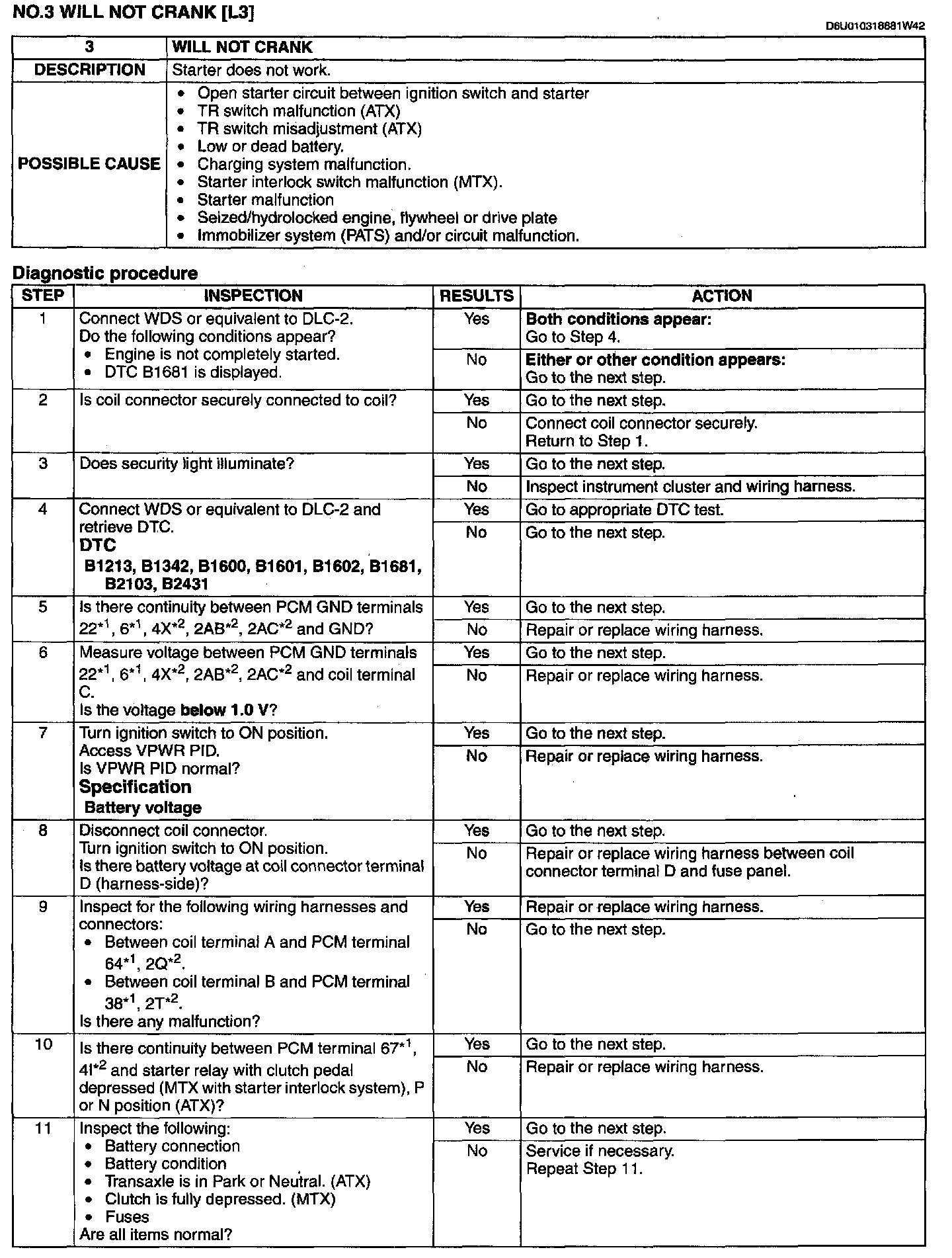

Description / Possible Cause:

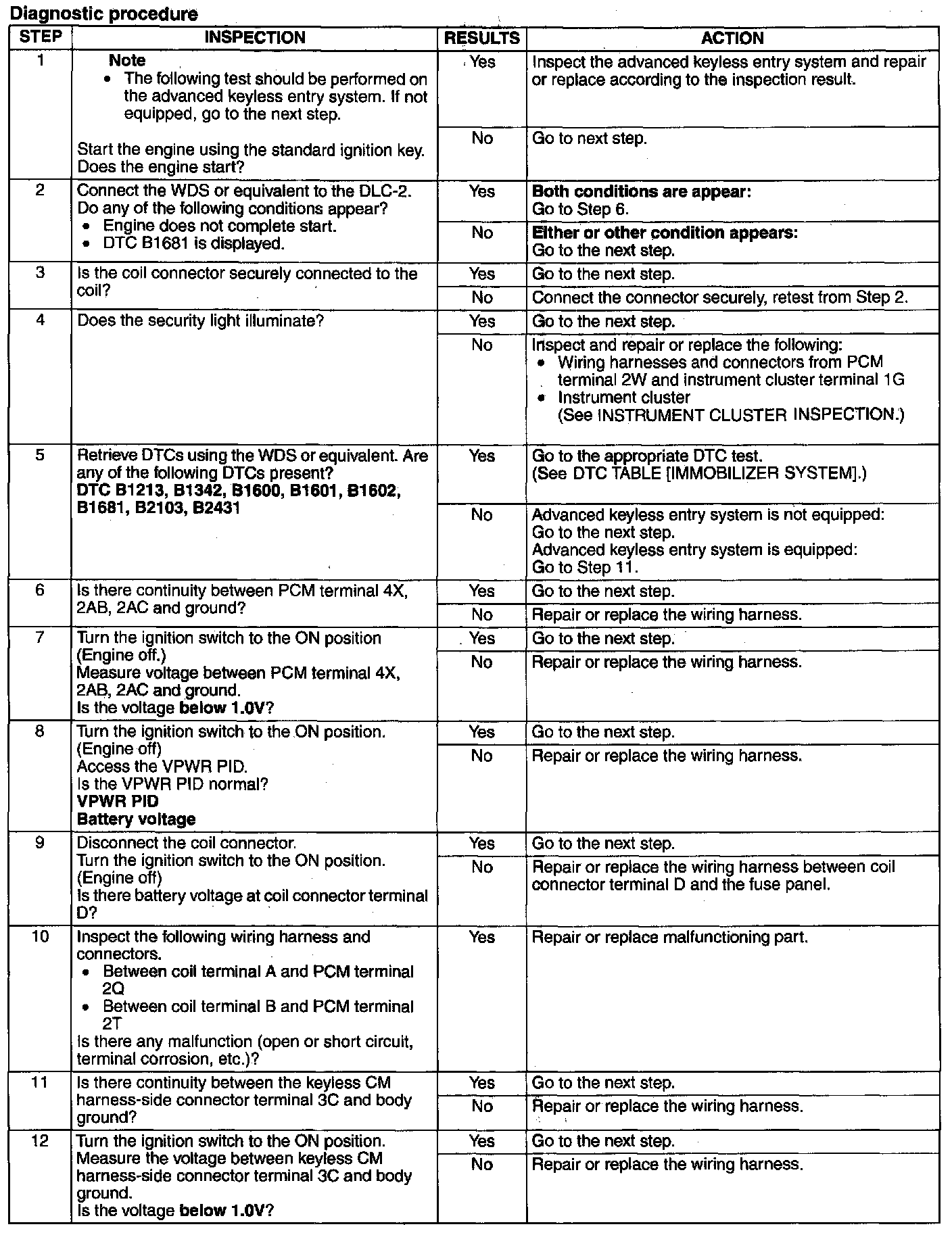

Step 1-Step 12:

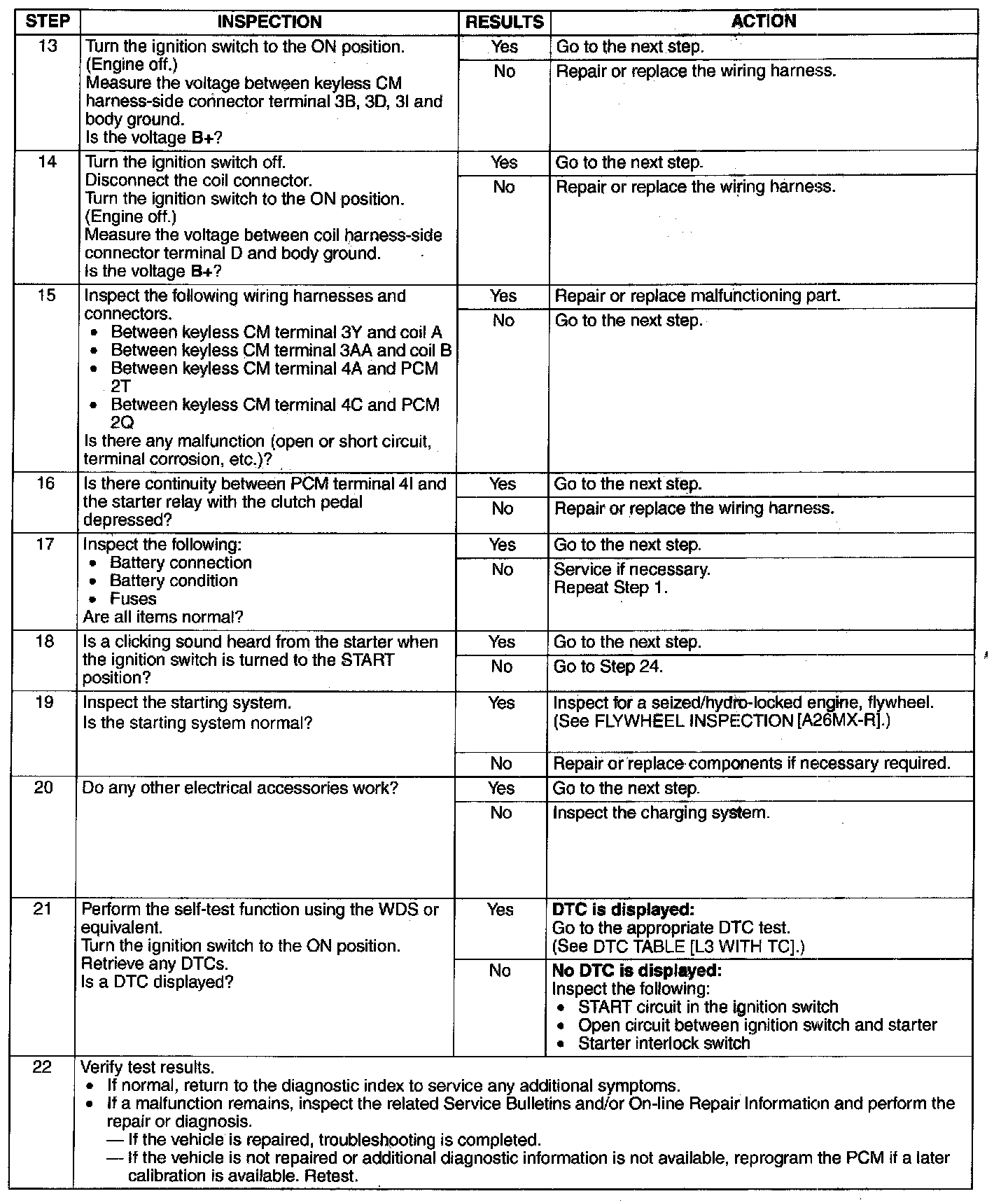

Step 13-Step 22:



Step 1 - 11:

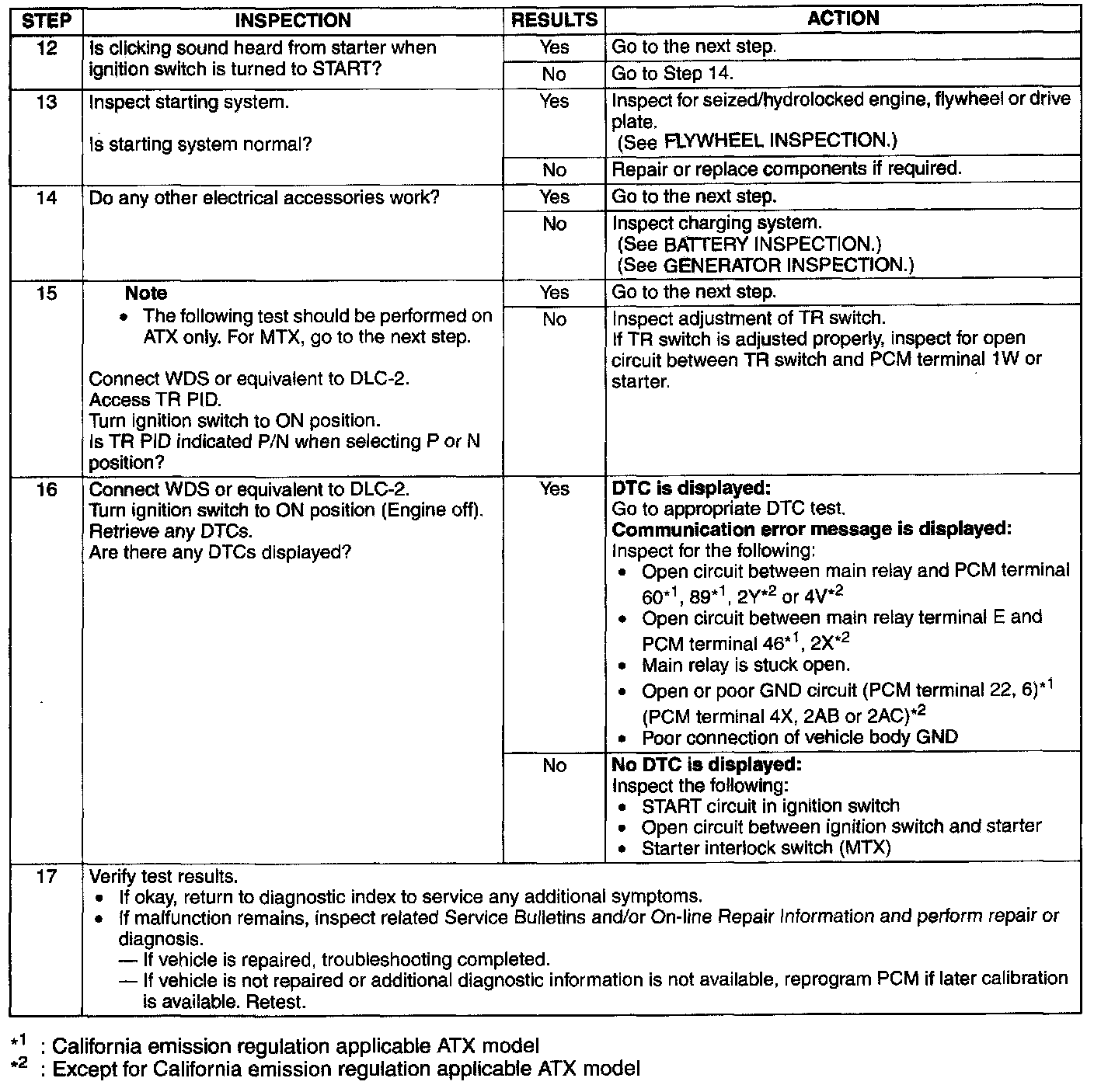

Step 12 - 17:
