PID/Data Monitor Table

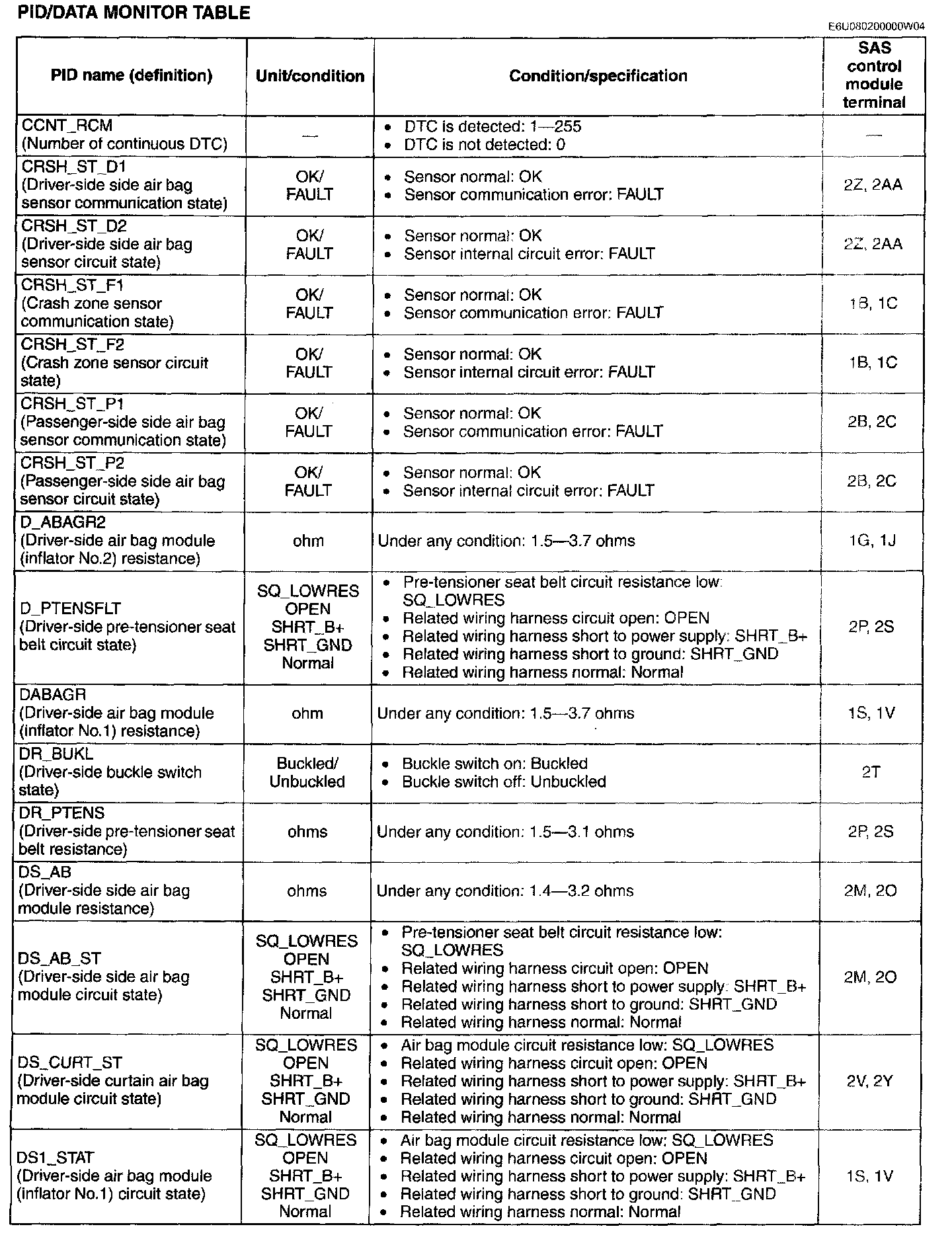

PID/Data Monitor Table (Part 1):

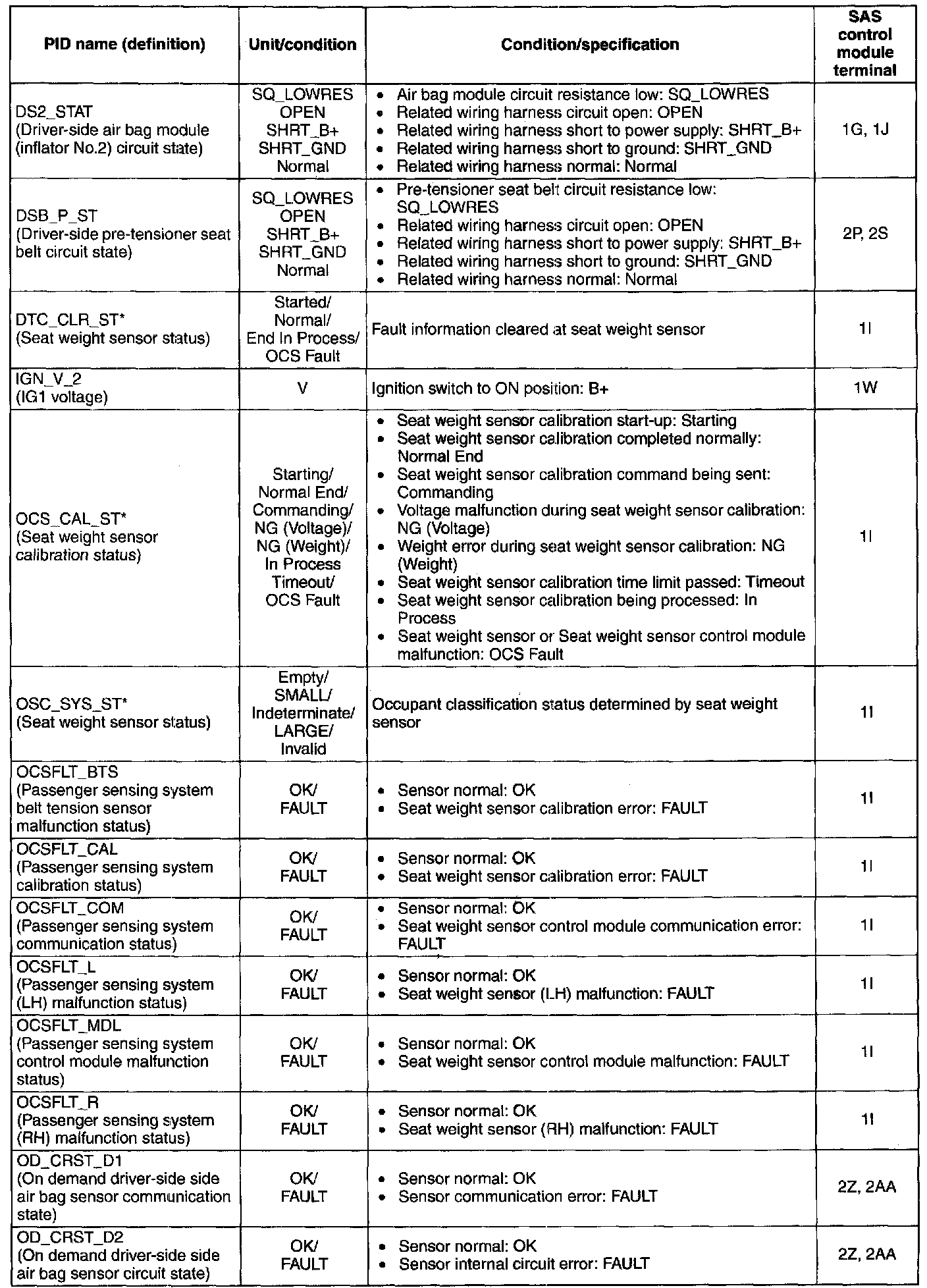

PID/Data Monitor Table (Part 2):



PID/Data Monitor Table (Part 3):

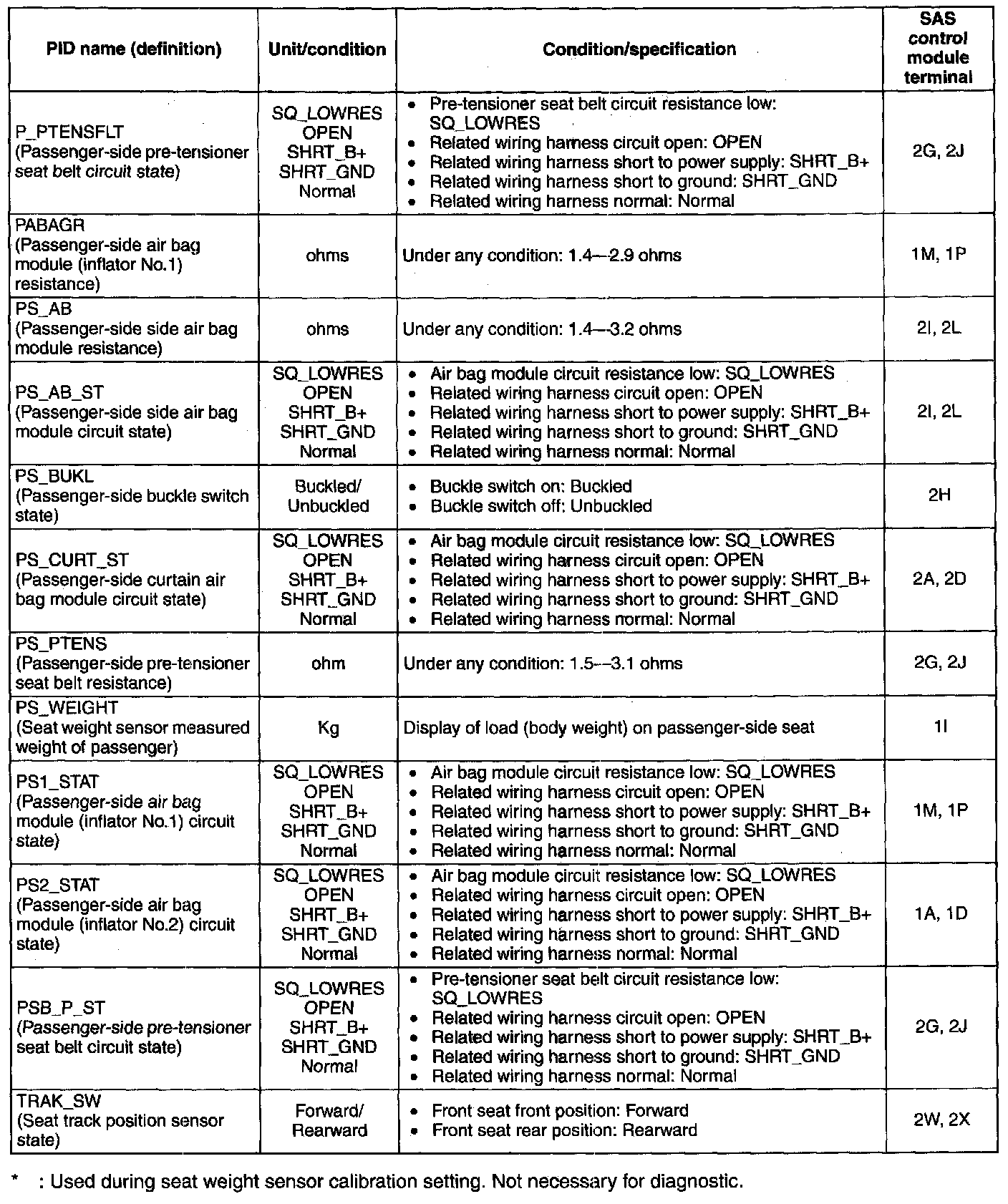

PID/Data Monitor Table (Part 4):
