FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 2006 >> Mazdaspeed6 L4-2.3L Turbo >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Spark Plug >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

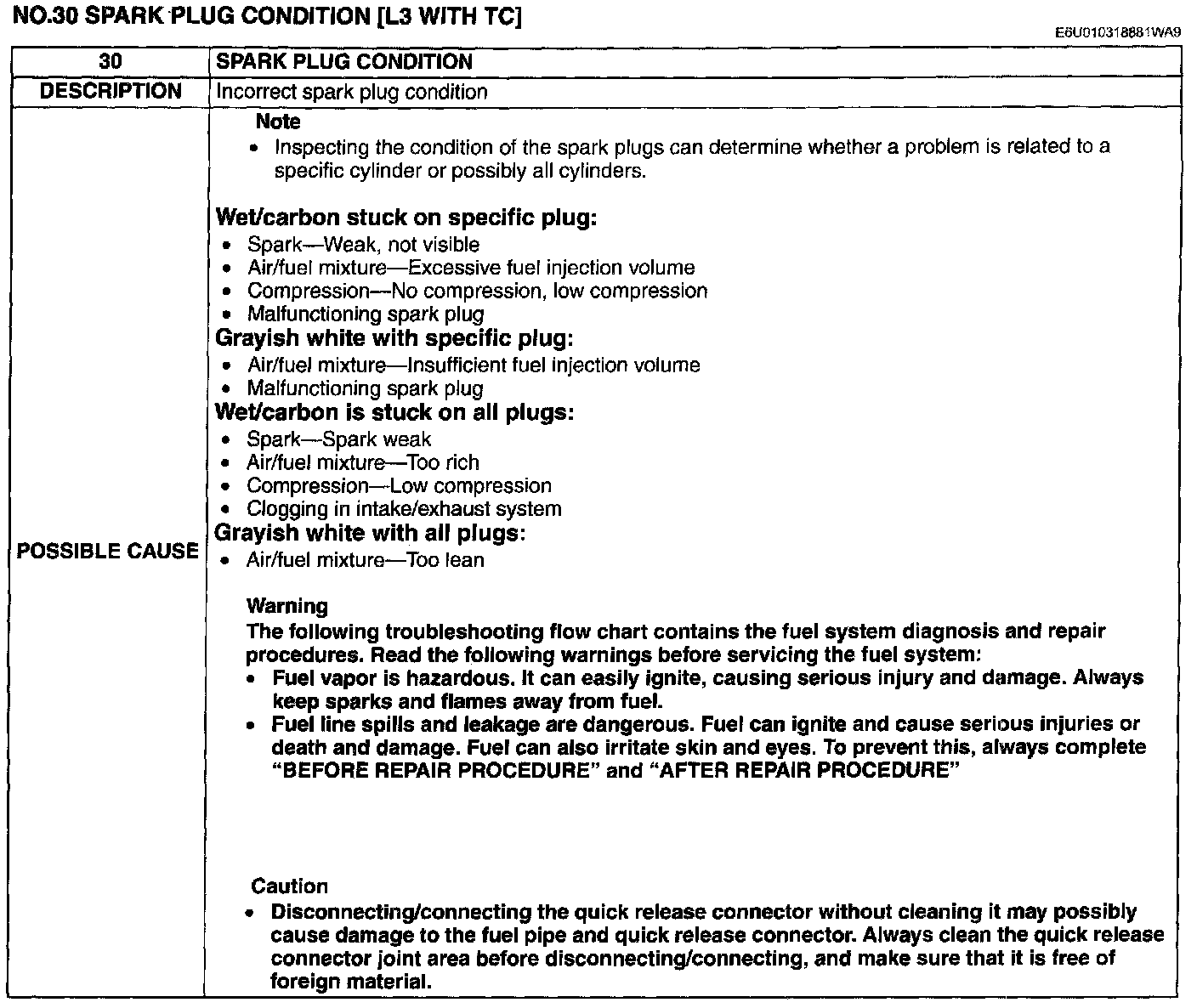

Description / Possible Cause:

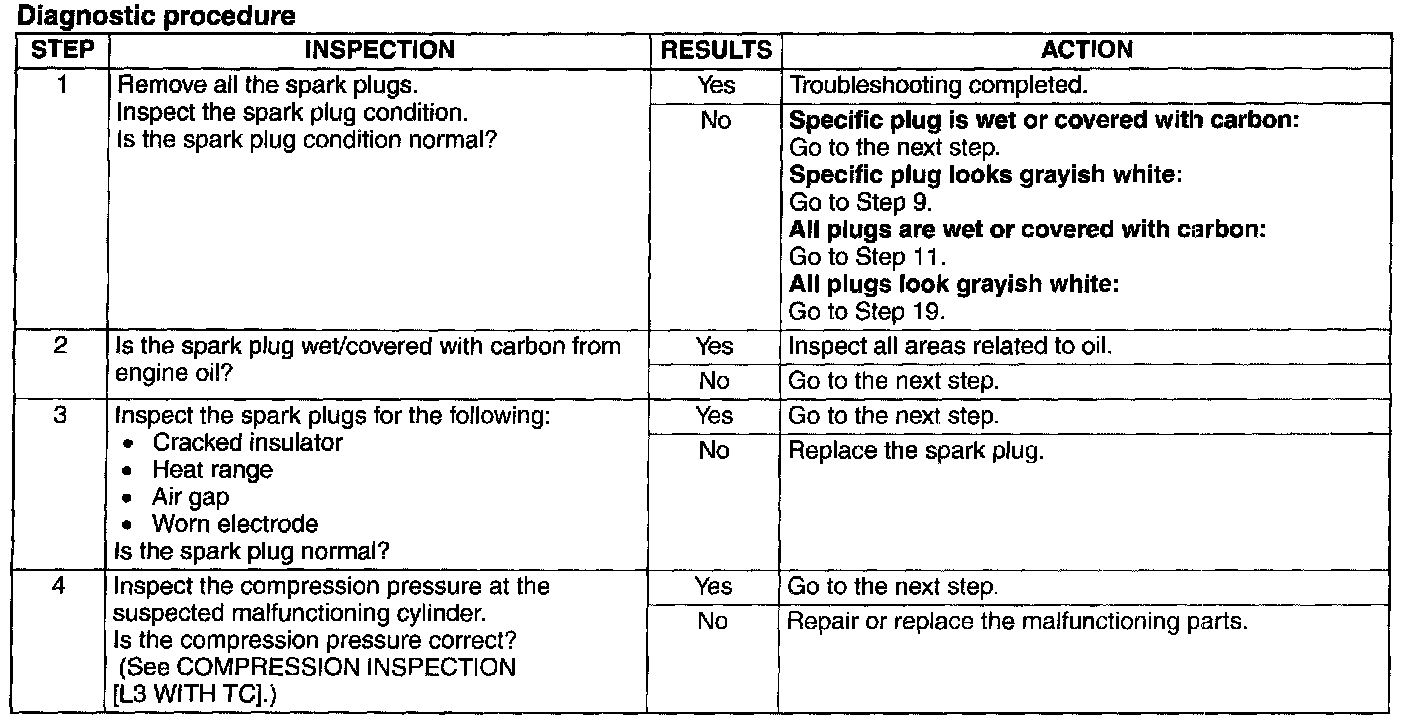

Step 1-Step 4:

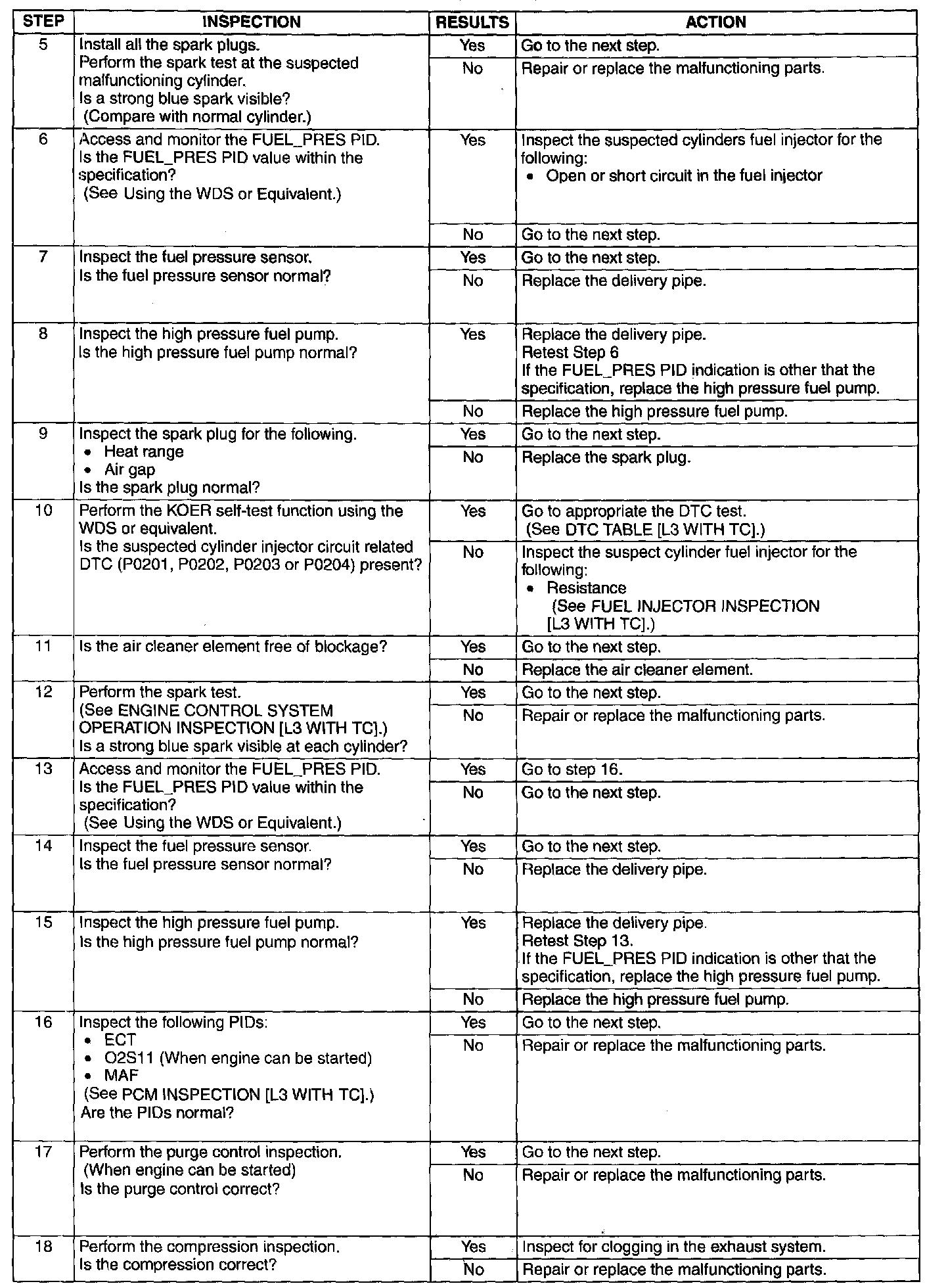

Step 5-Step 18:

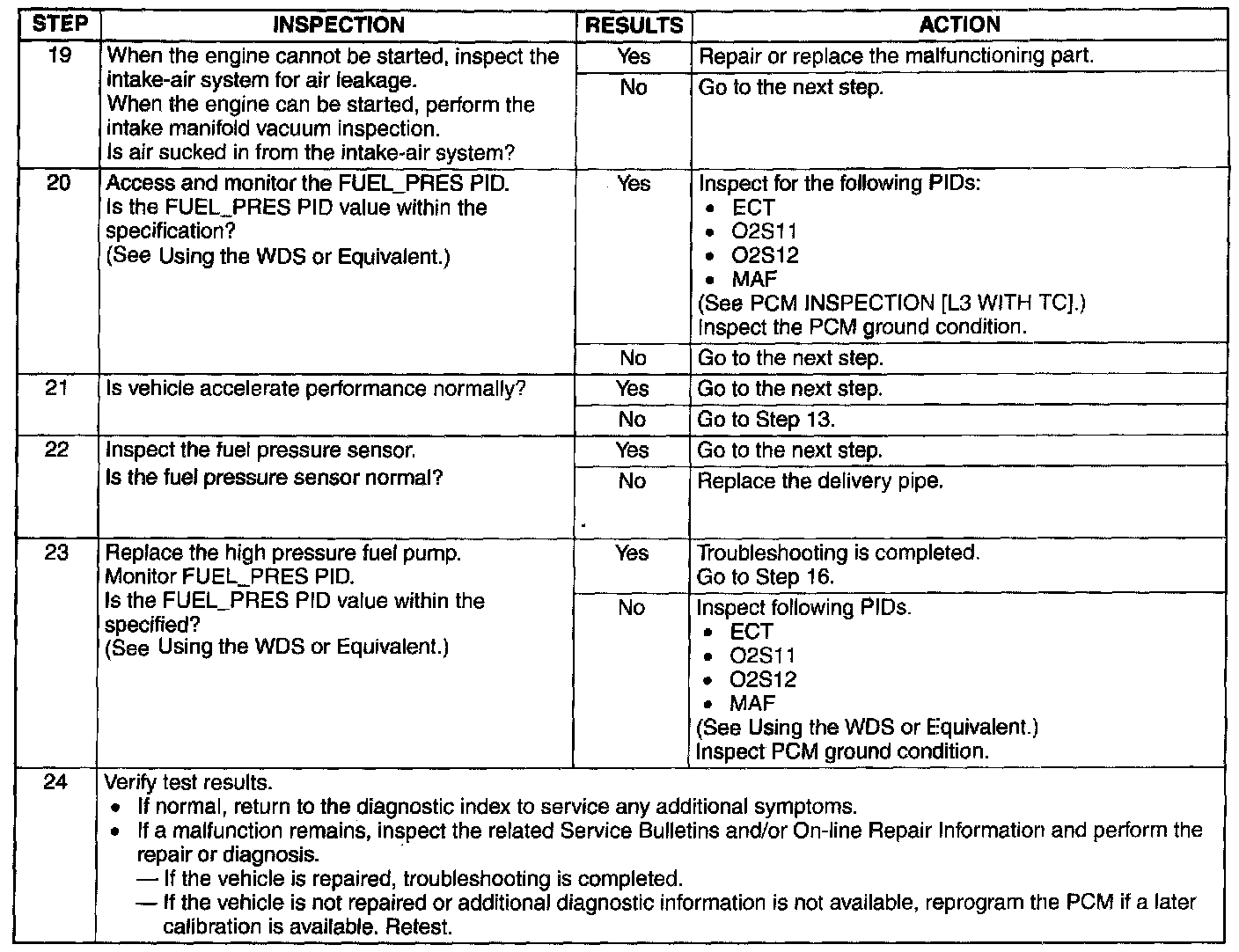

Step 19-Step 24:



pro multis Credits:Operation CHARM About Operation CHARM
