PID/DATA Monitor Table (Reference)

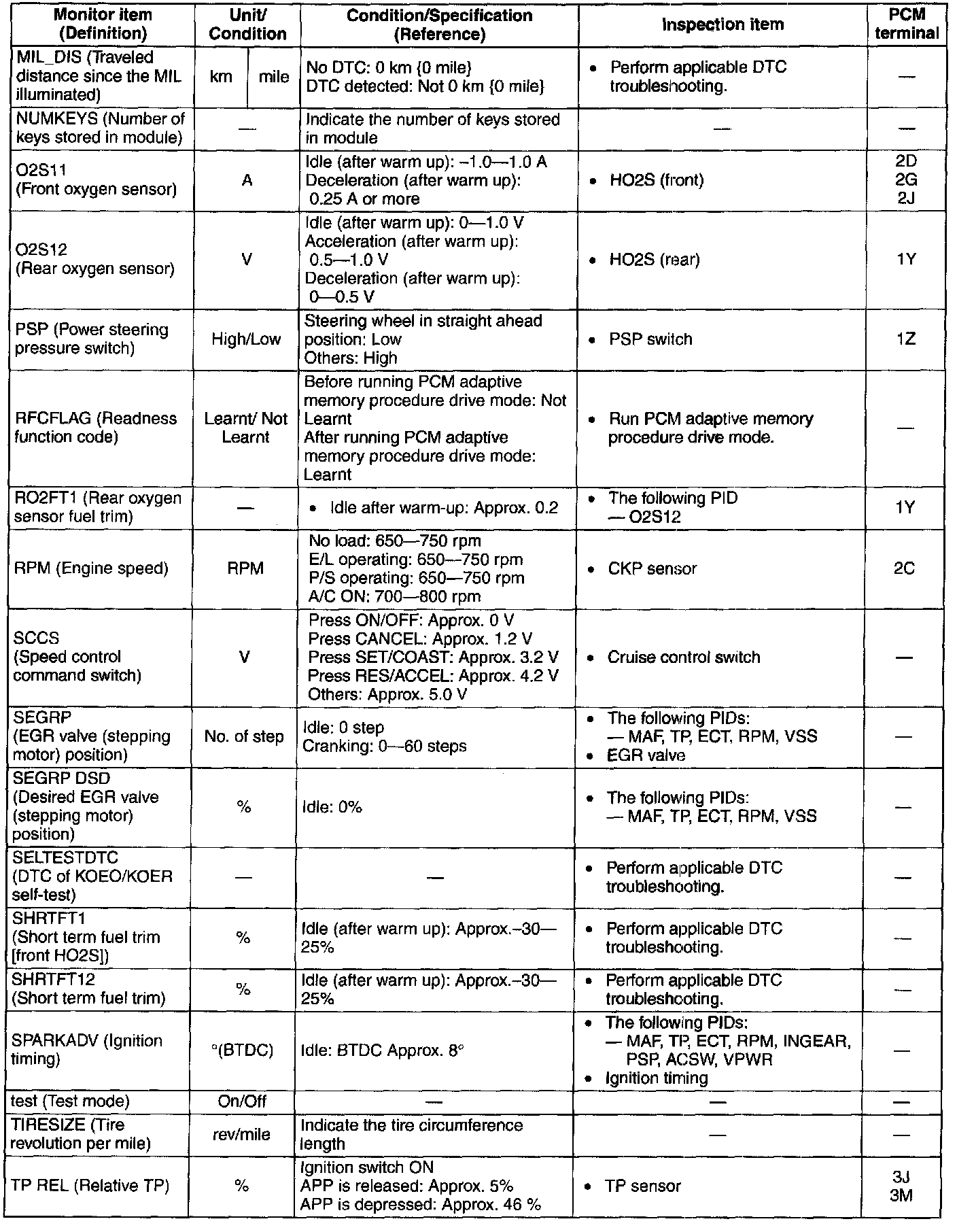

PID/Data Monitor Table(reference) (Part 1):

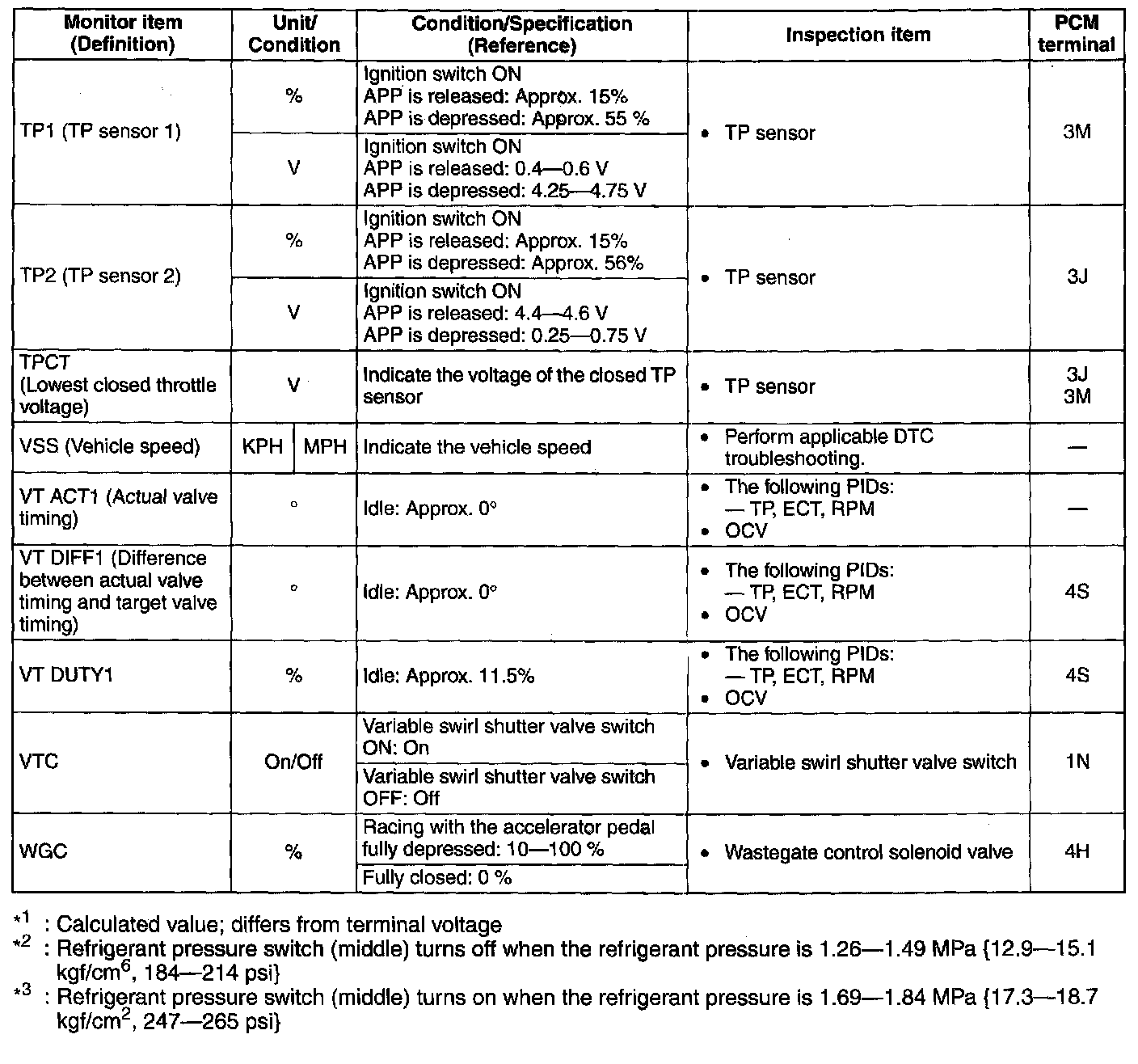

PID/Data Monitor Table(reference) (Part 2):

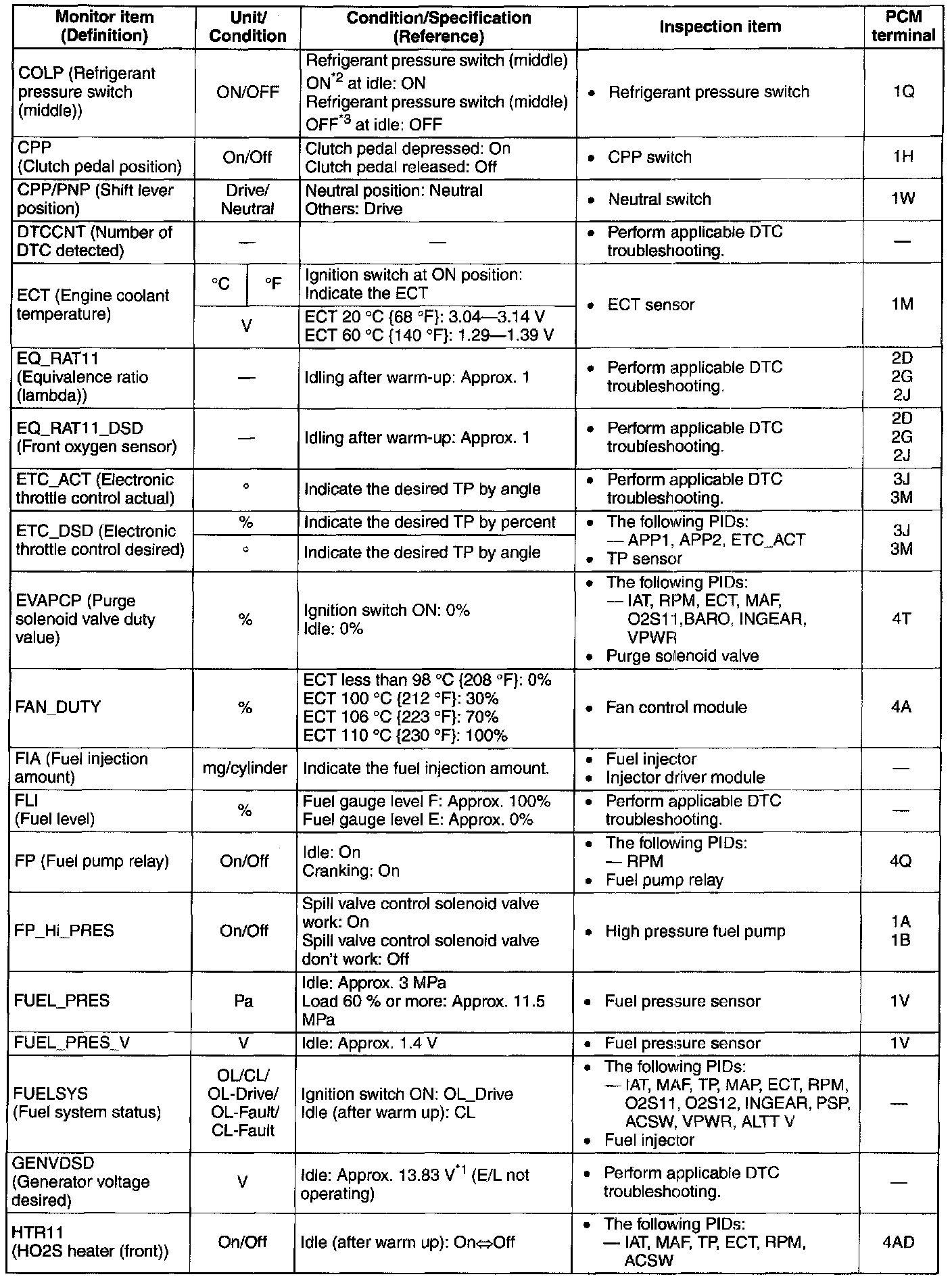

PID/Data Monitor Table(reference) (Part 4):

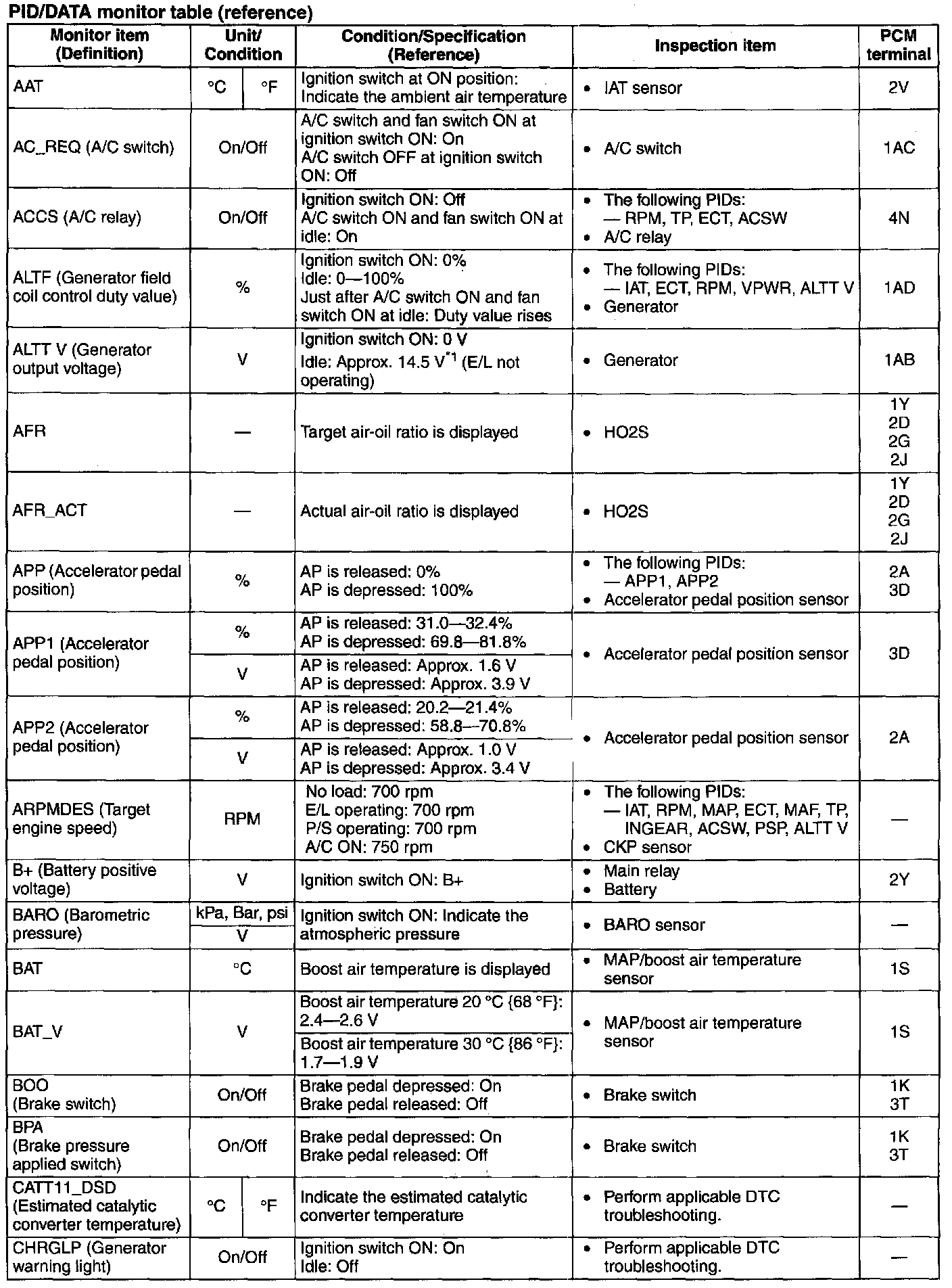

PID/Data Monitor Table(reference) (Part 5):
