DISC PAD (FRONT) REPLACEMENT [L3 WITH TC)
1.

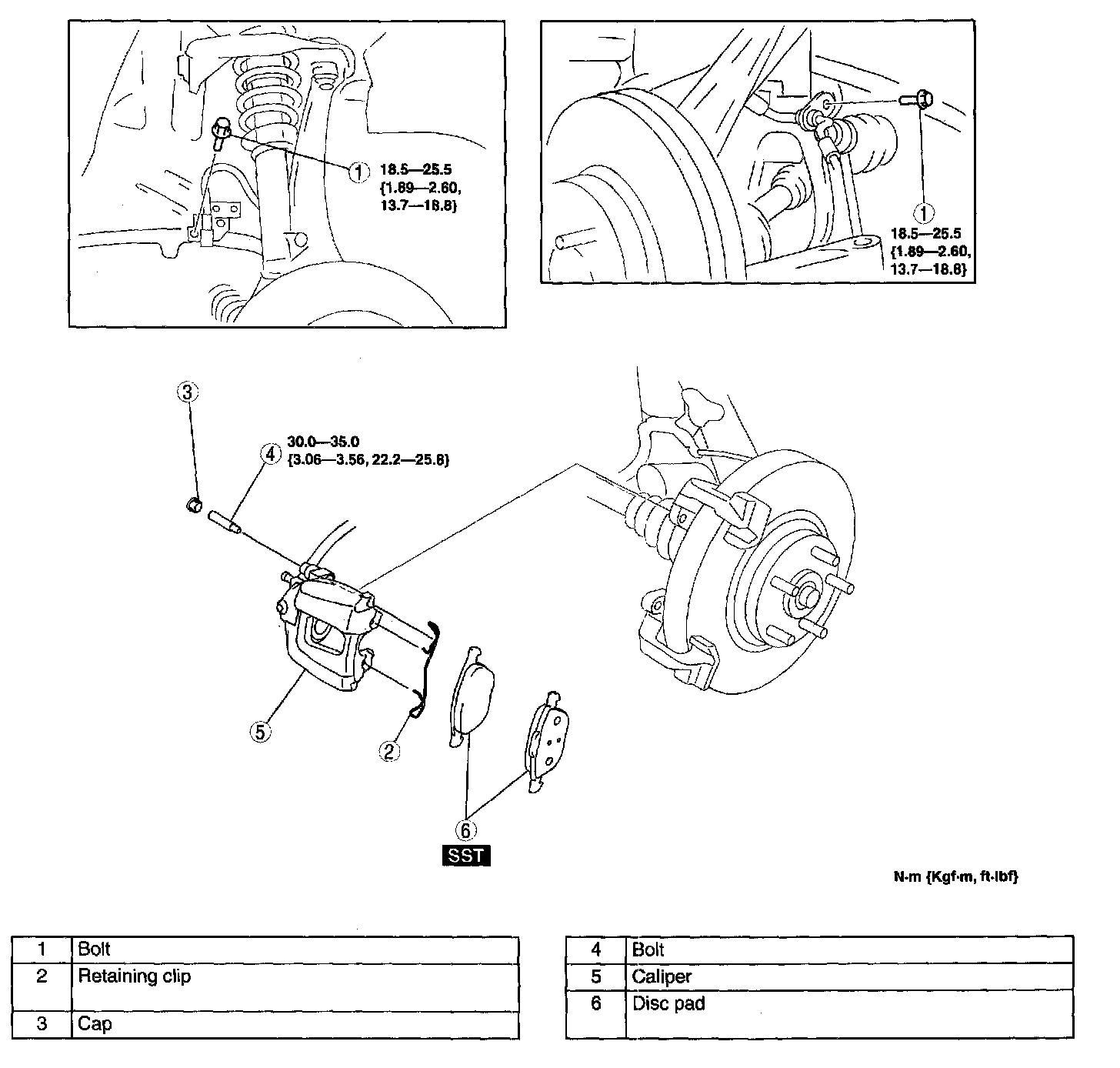

Remove in the order indicated in the table.
2.
Install in the reverse order of removal.
