Home >> Mazda >> 2006 >> 6 V6-3.0L DOHC >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection

Starting System: Testing and Inspection

Description / Possible Cause:



Step 1-Step 12:



Step 13-Step 17:

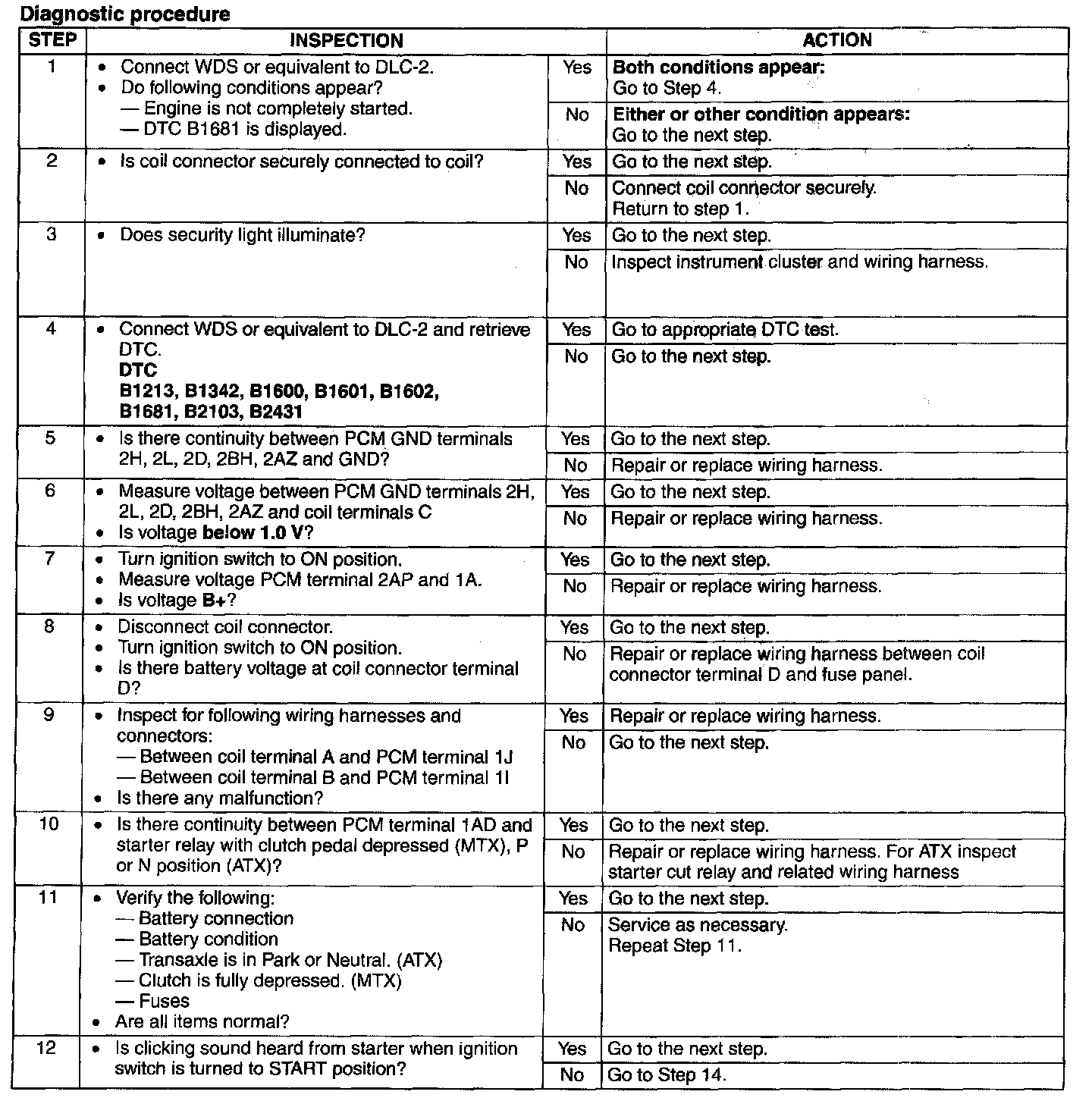

Step 1 - 12:

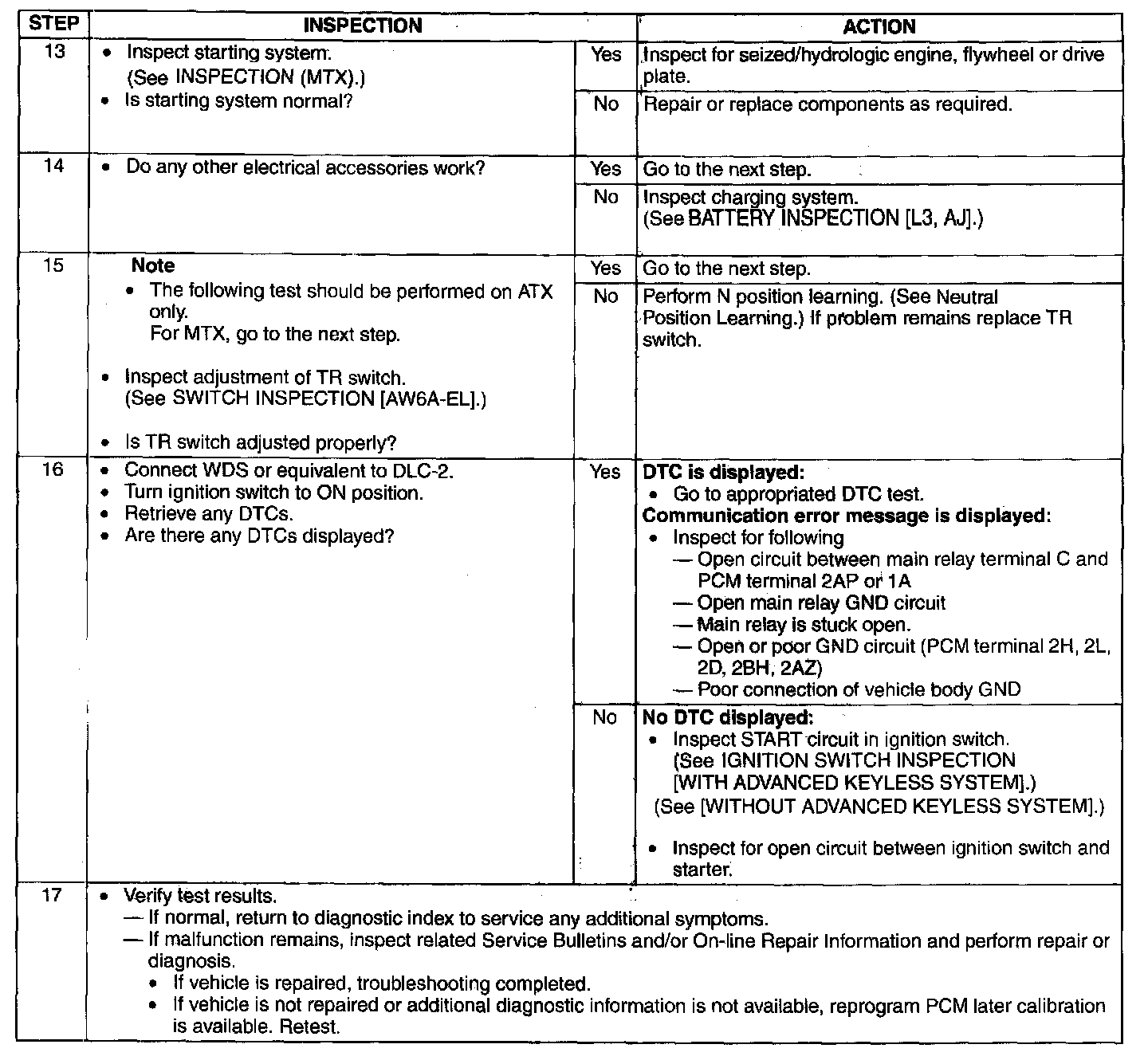

Step 13 - 17:
