Home >> Mazda >> 2006 >> 6 V6-3.0L DOHC >> Repair and Diagnosis >> Specifications >> Pressure, Vacuum and Temperature Specifications >> Engine >> System Specifications

System Specifications

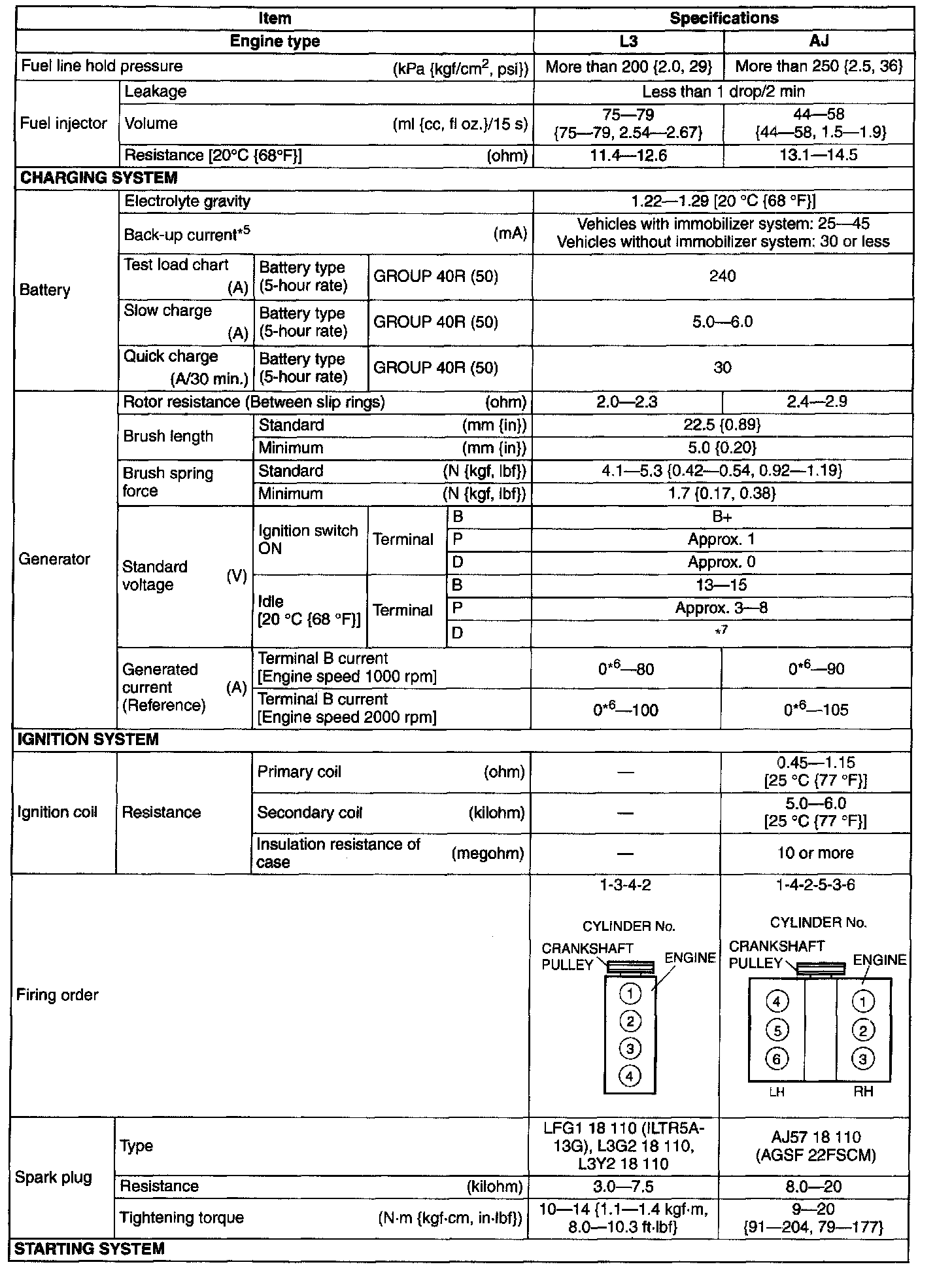

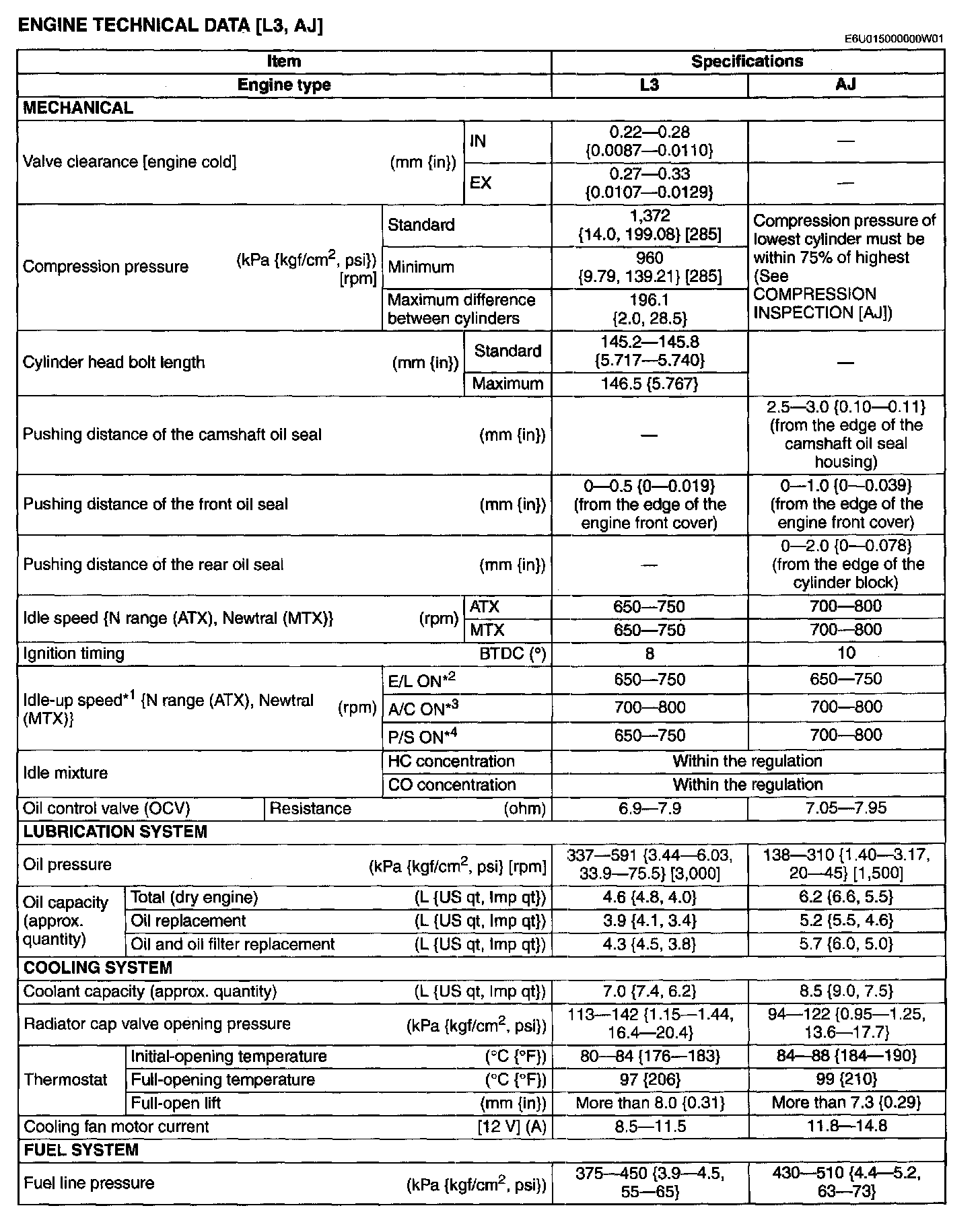

ENGINE TECHNICAL DATA [L3, AJ]

ENGINE TECHNICAL DATA [L3, AJ]:




ENGINE TECHNICAL DATA [L3, AJ]:




ENGINE TECHNICAL DATA [L3, AJ]:
