Home >> Mazda >> 2006 >> 6 V6-3.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Spark Plug >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

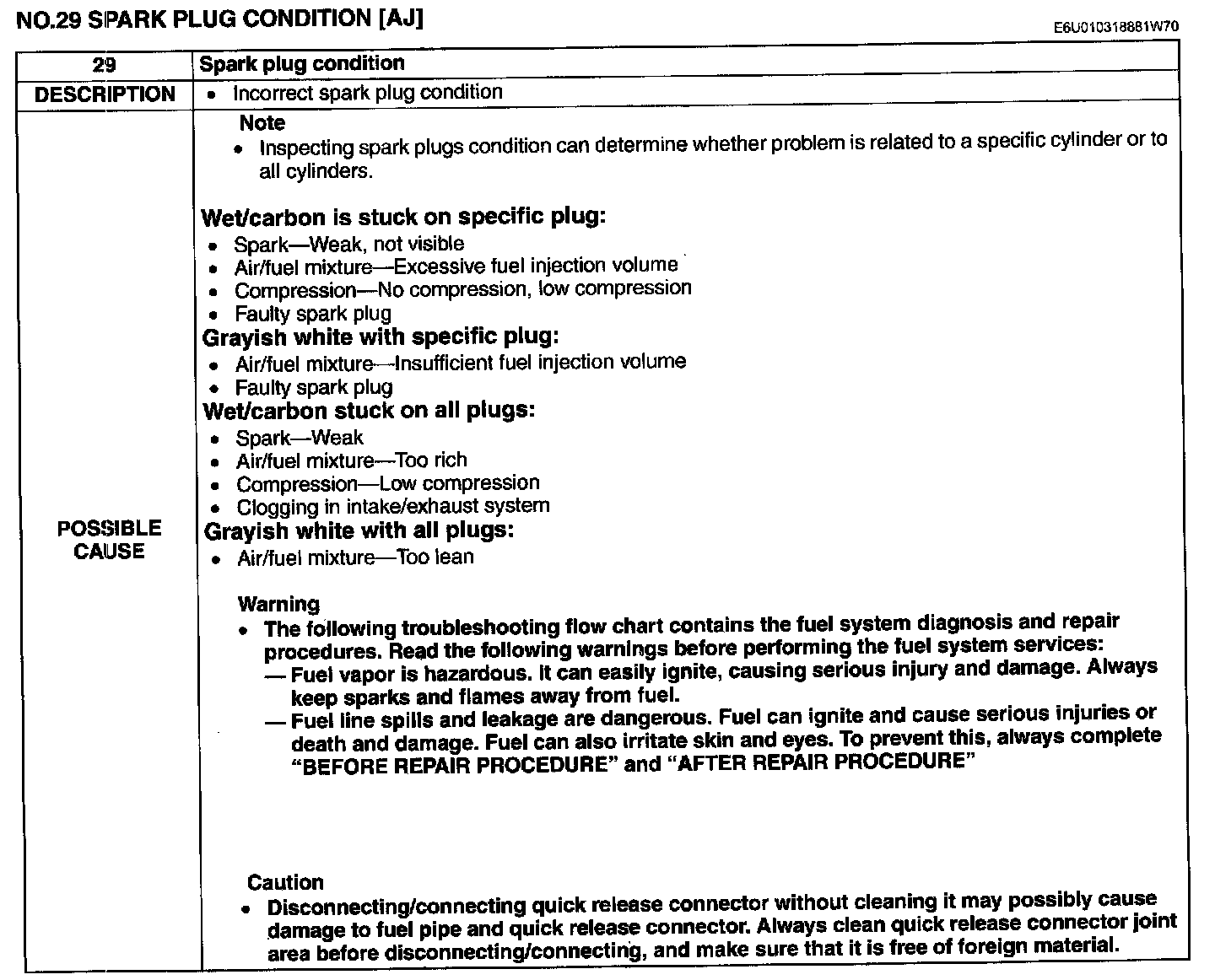

Description / Possible Cause:

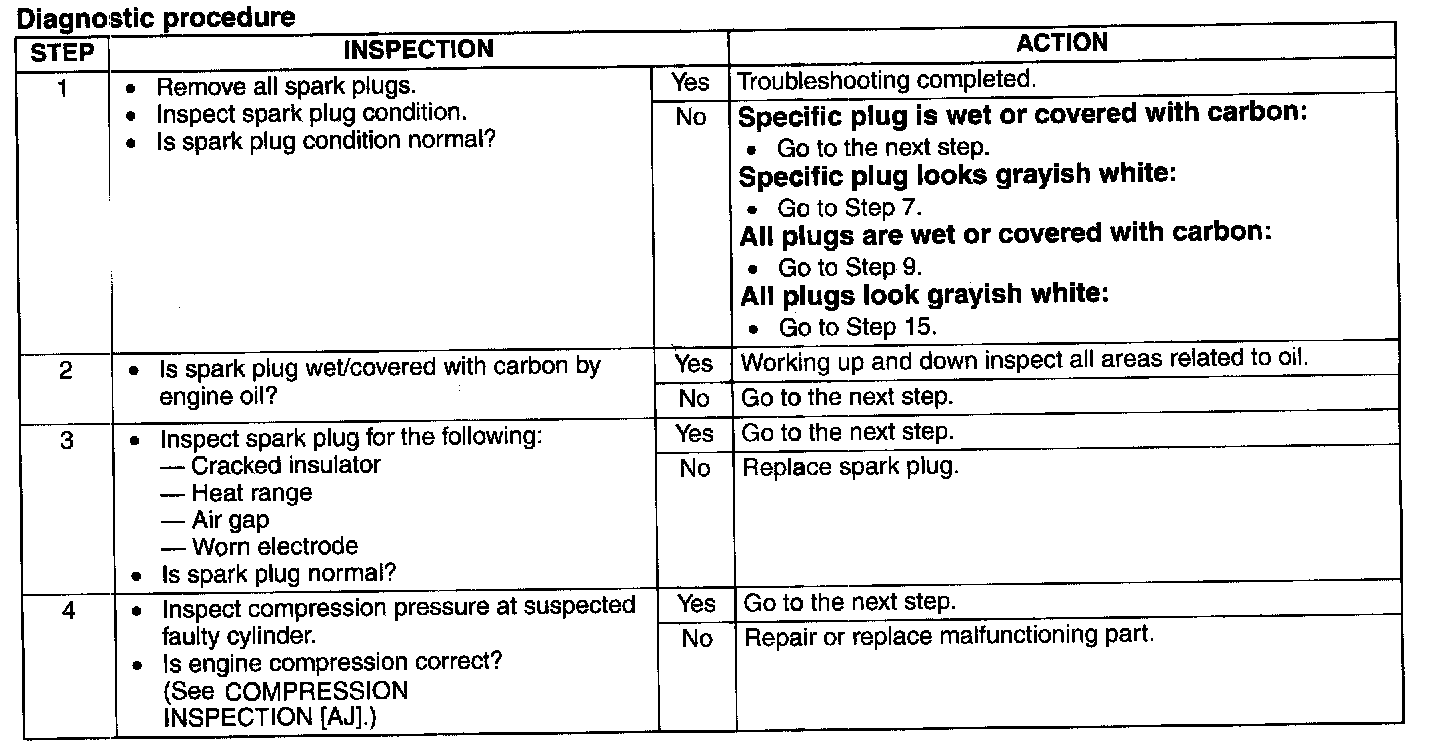

Step 1-Step 4:

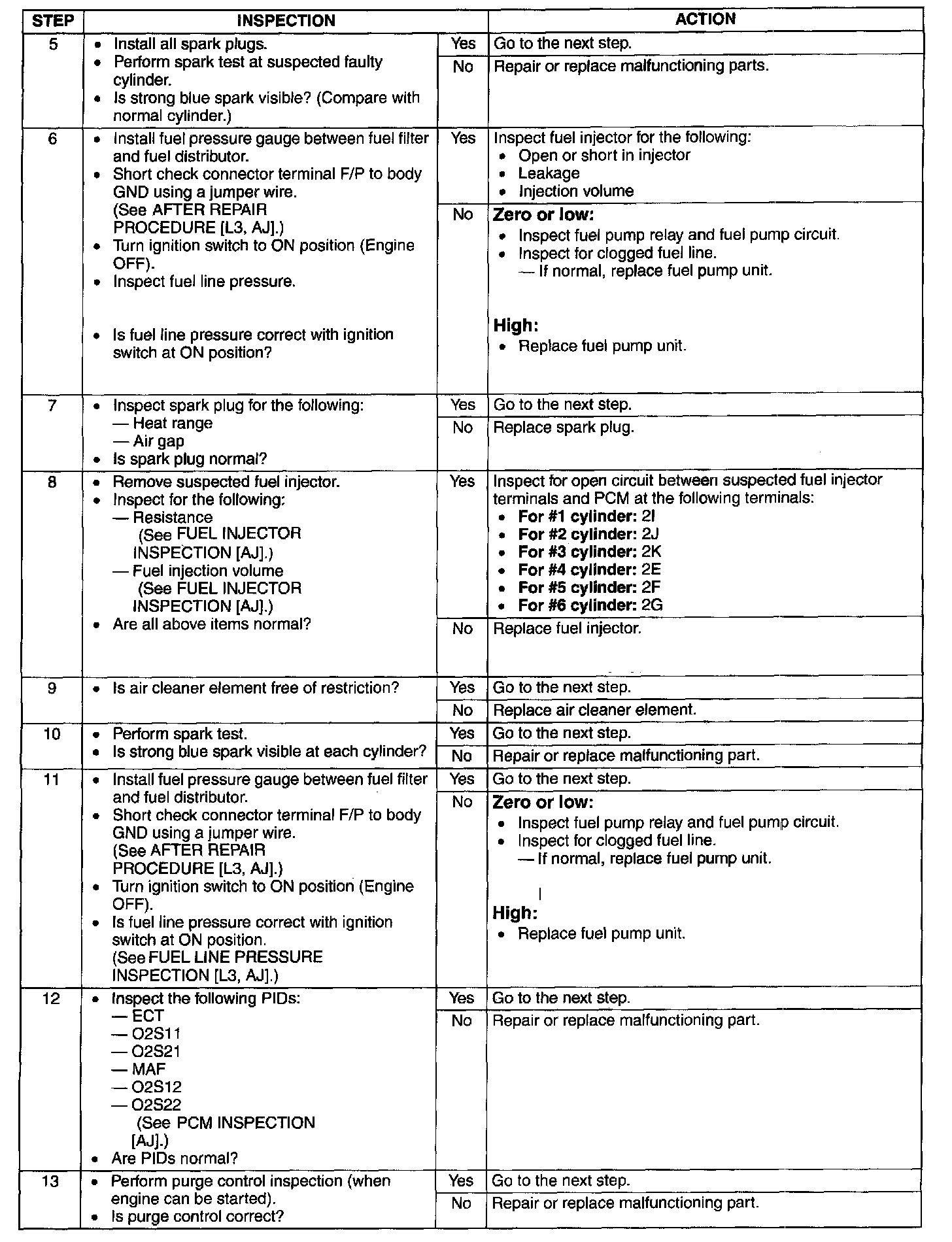

Step 5-Step 13:

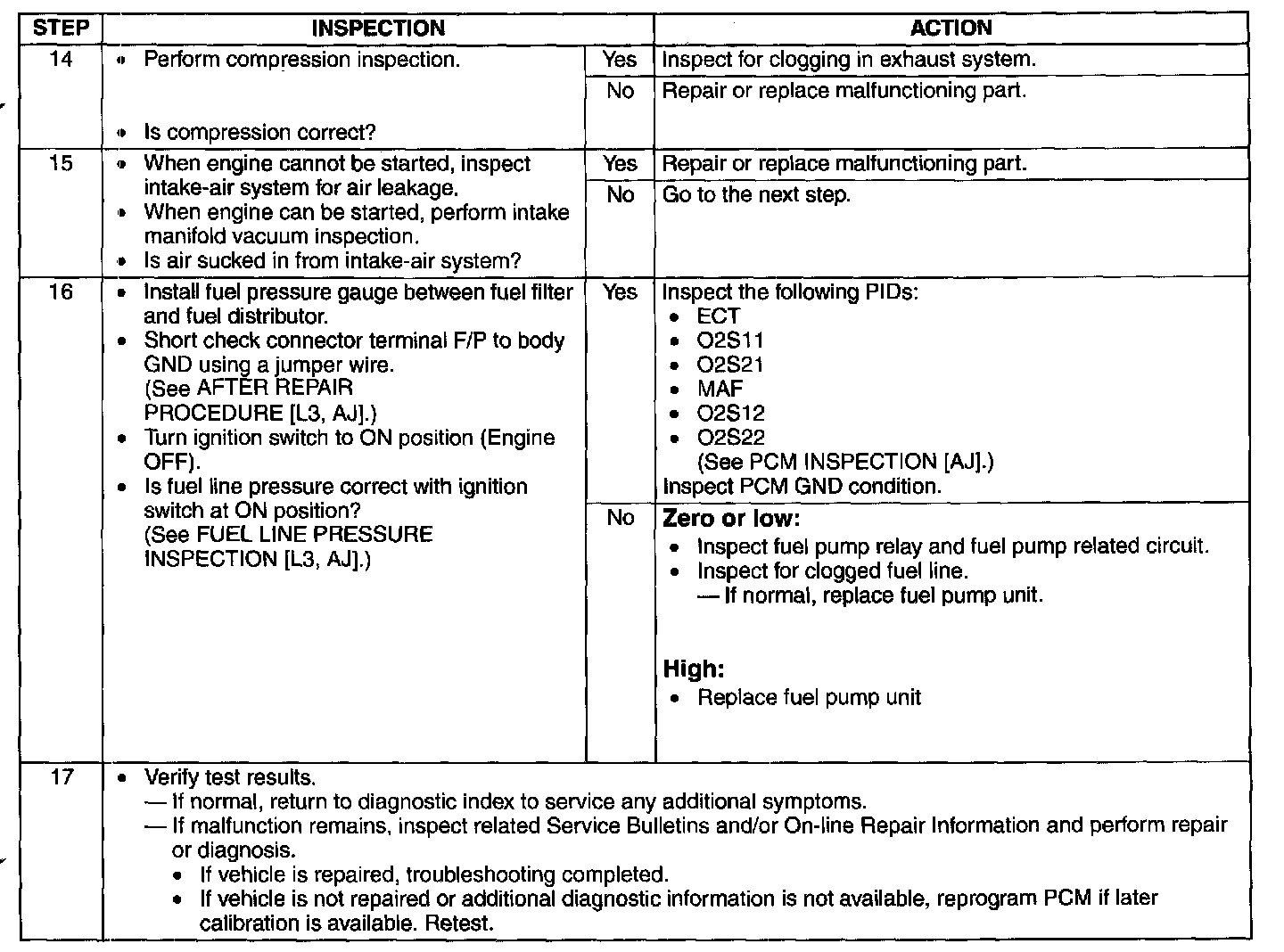

Step 14-Step 17:
