Home >> Mazda >> 2005 >> MX-5 Miata L4-1.8L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Oil Pump Torque

Oil Pump Torque

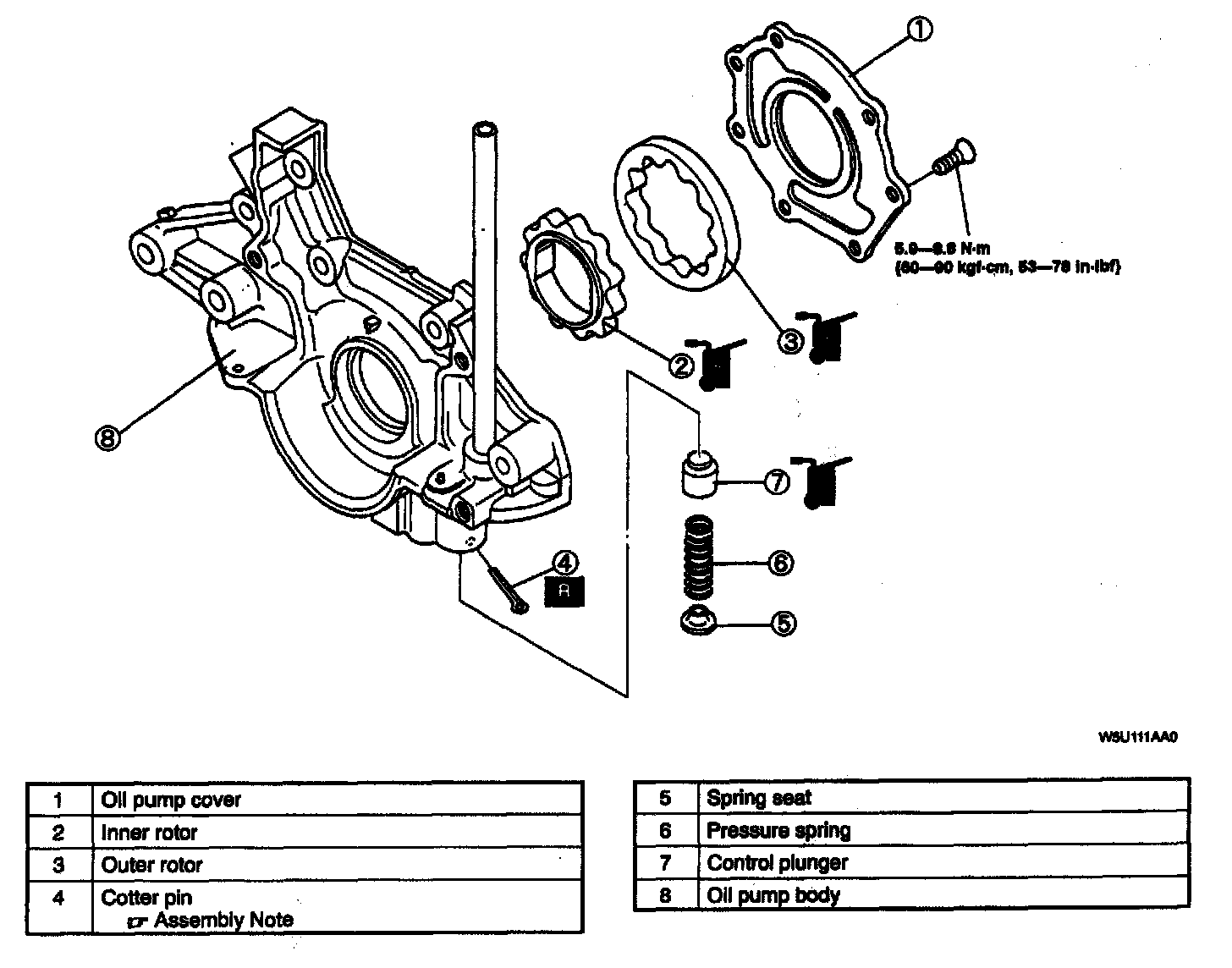

OIL PUMP COVER






Torque 6.9-8.6 Nm (53-76 in lbs)
