Home >> Mazda >> 2005 >> 6 V6-3.0L DOHC >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection

Starting System: Testing and Inspection

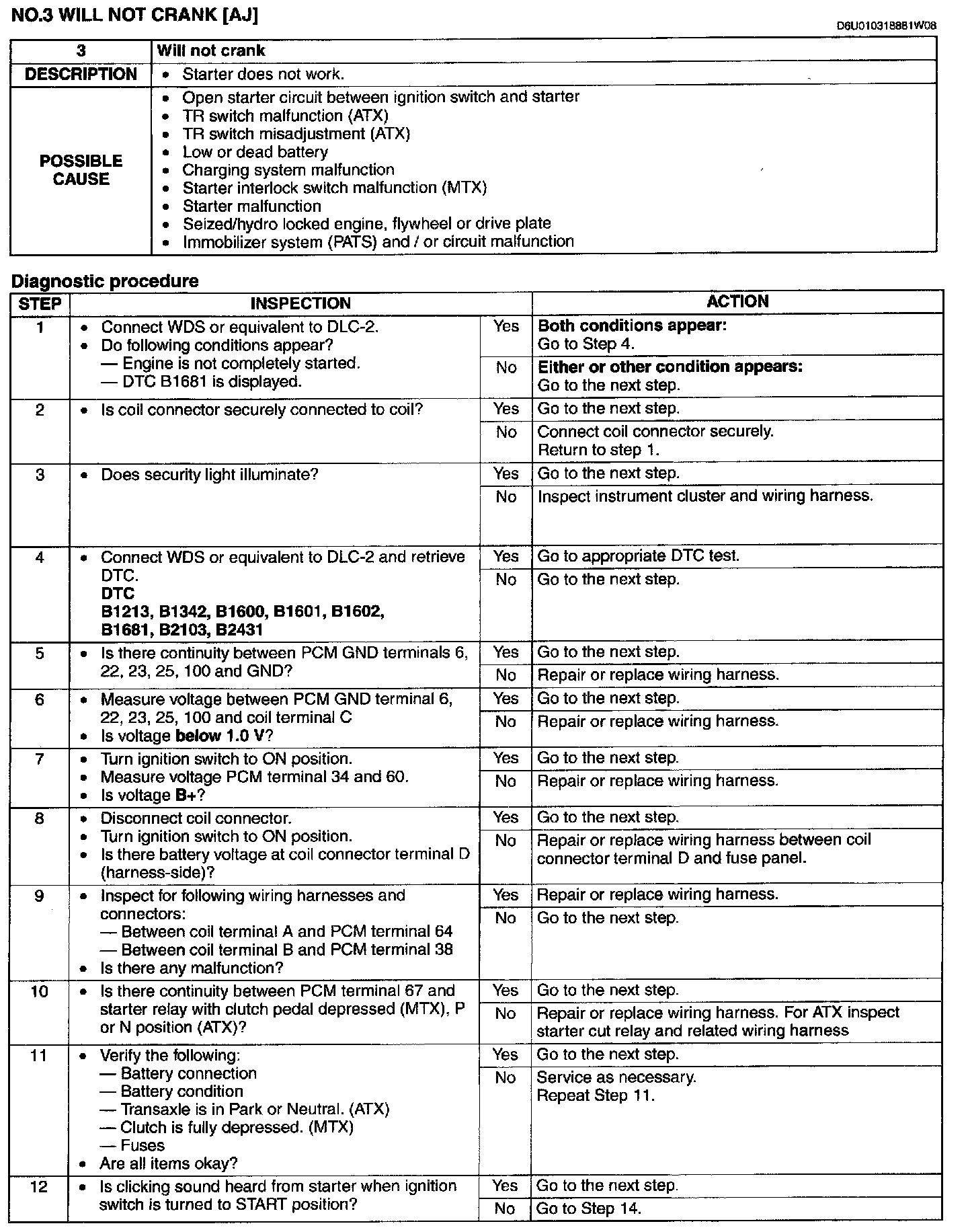

Step 1 - 12:

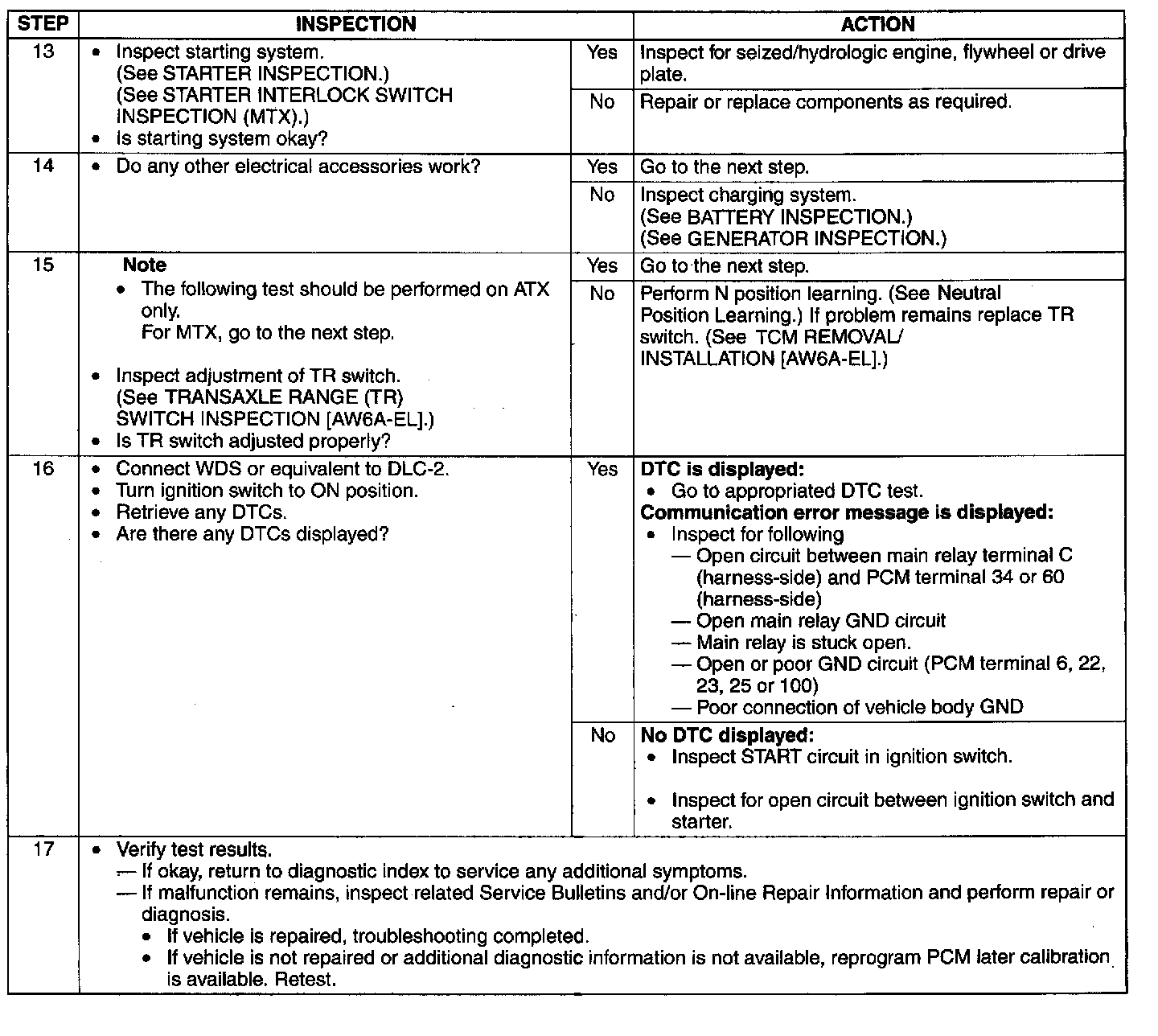

Step 13 - 17:
