Home >> Mazda >> 2004 >> MX-5 Miata L4-1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Spark Plug >> Testing and Inspection

Spark Plug: Testing and Inspection

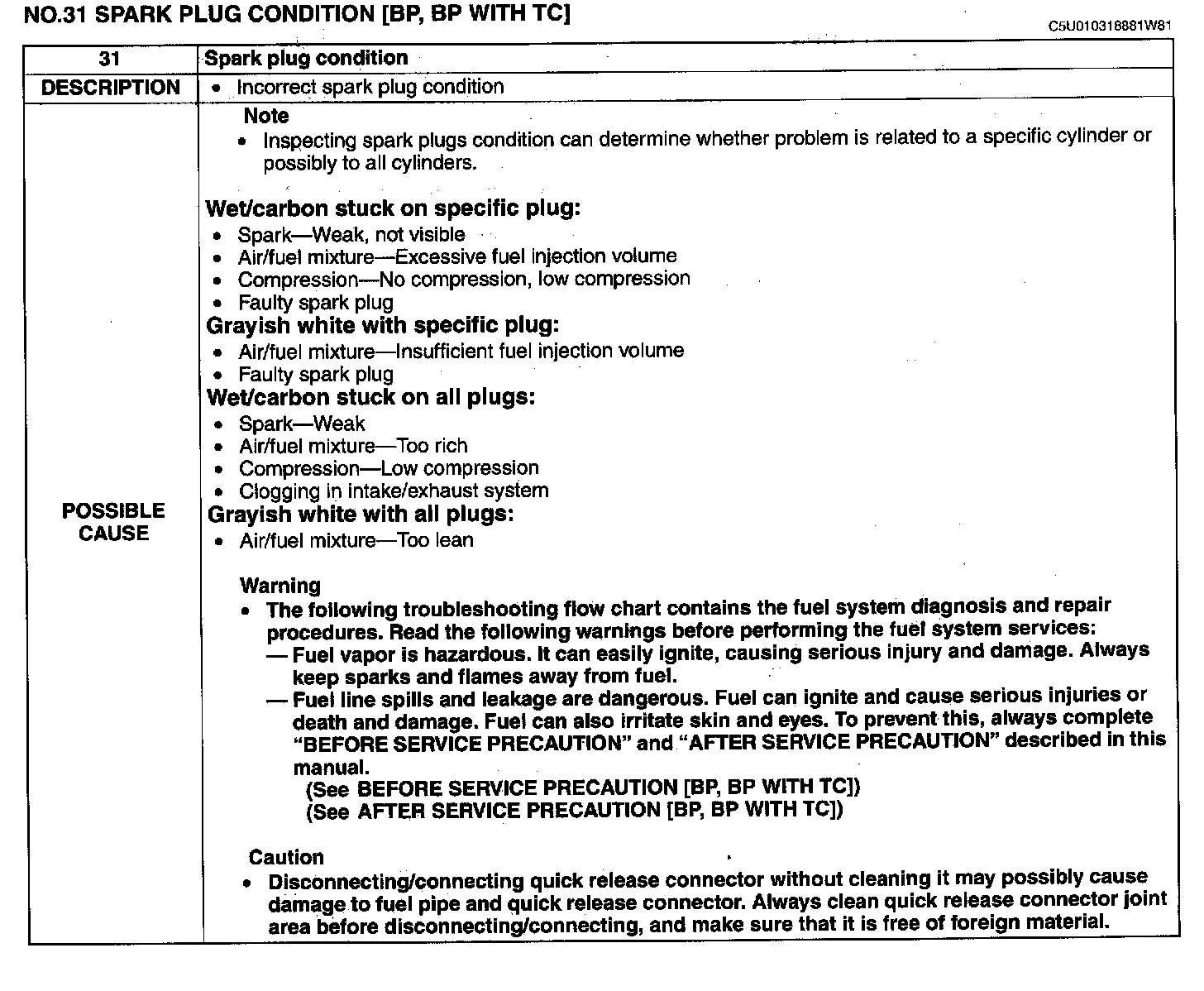

Description/Possible Cause:

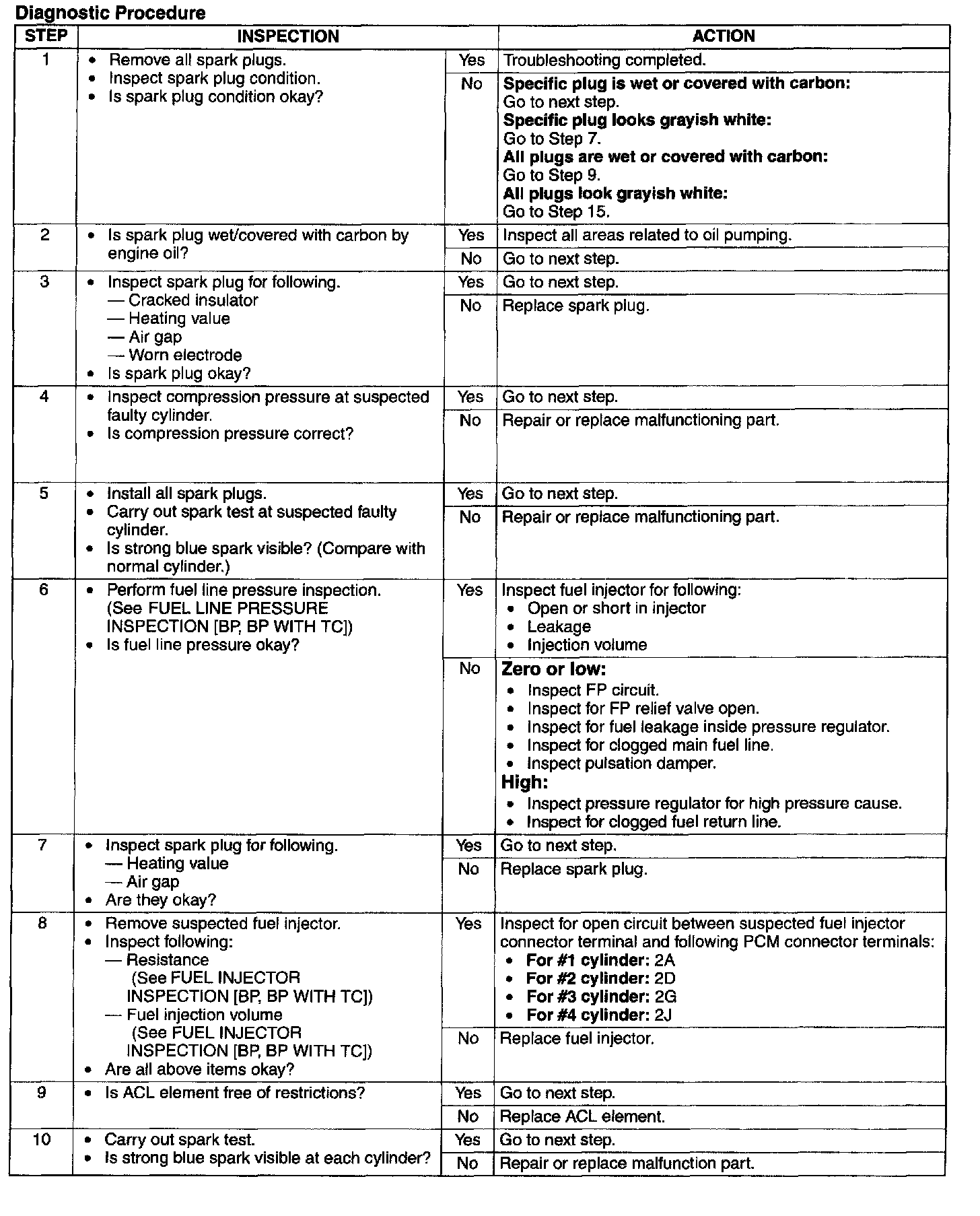

Step 1 - 10:

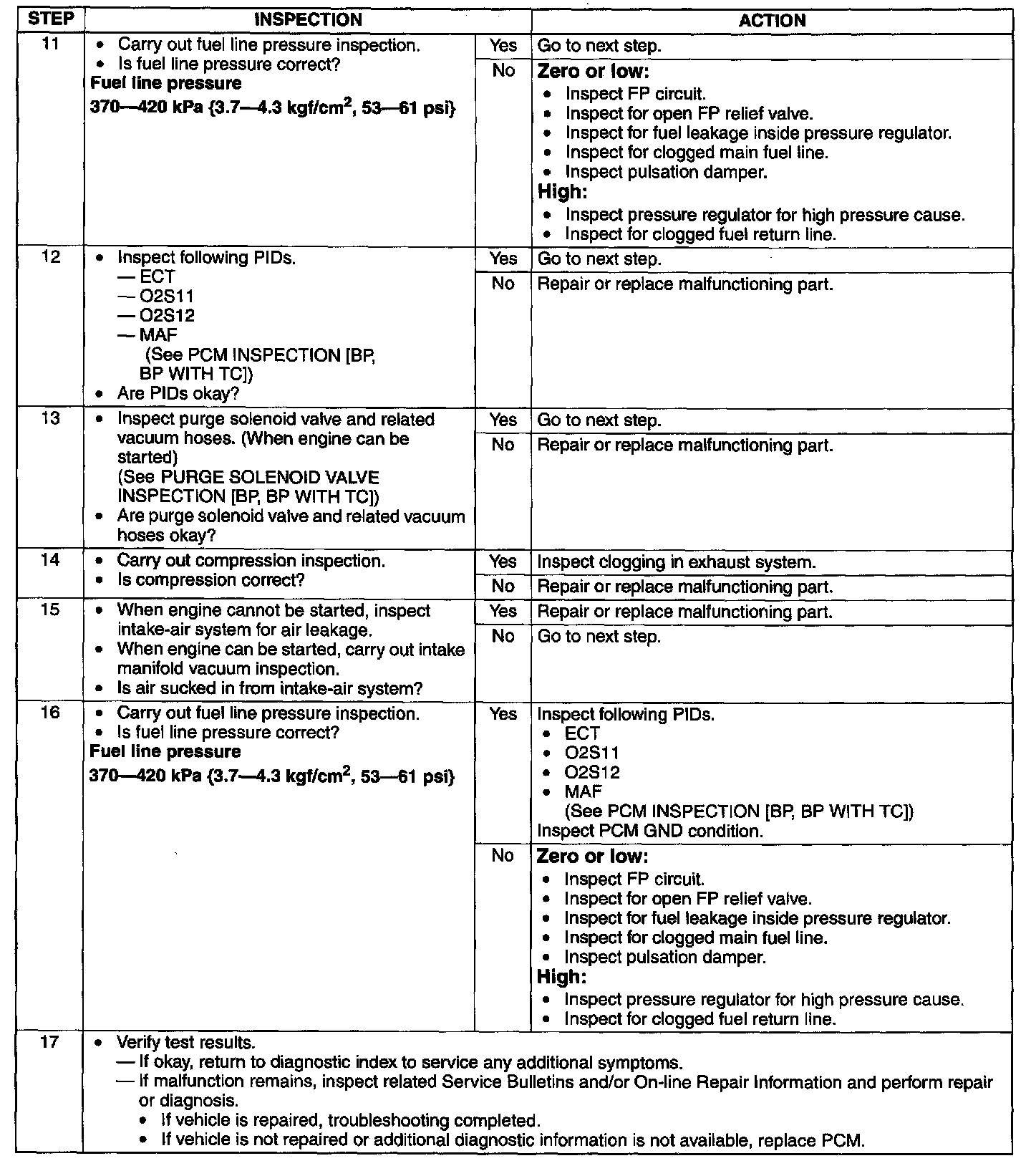

Step 11 - 17:
