Home >> Mazda >> 2004 >> 6 V6-3.0L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Technical Data AJ w/ VVT

Technical Data AJ w/ VVT

ENGINE TECHNICAL DATA

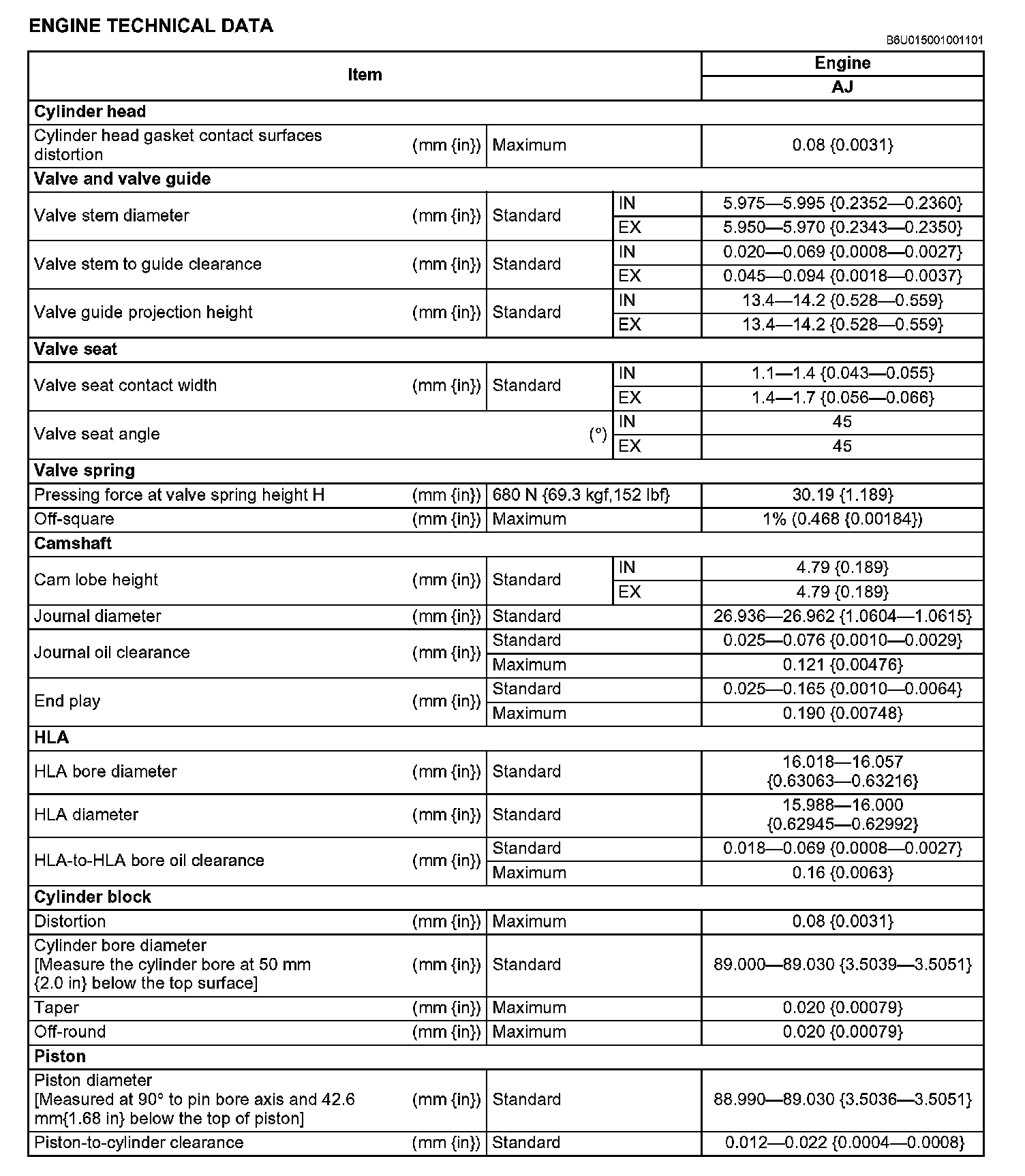

Engine Technical Data (Part 1):

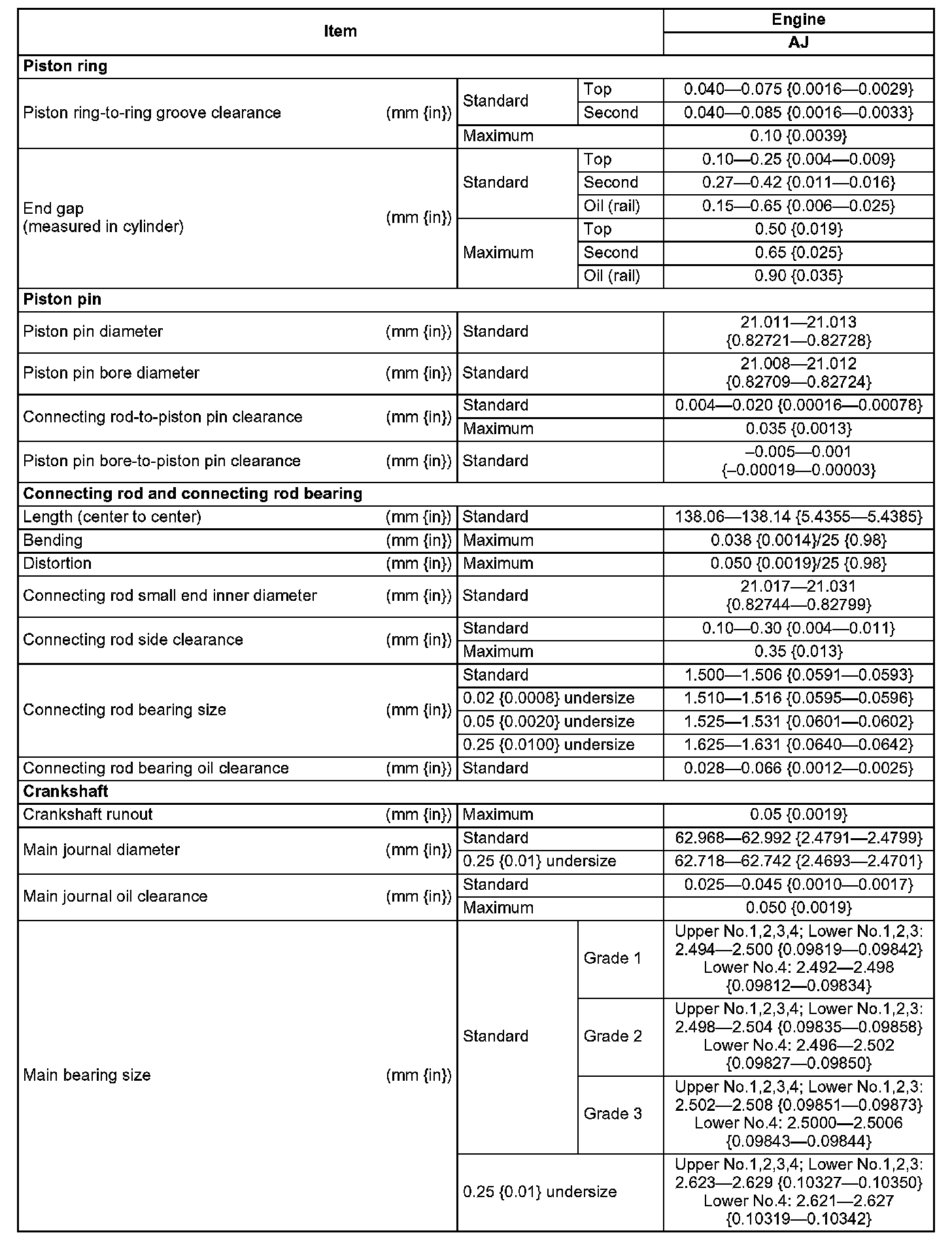

Engine Technical Data (Part 2):

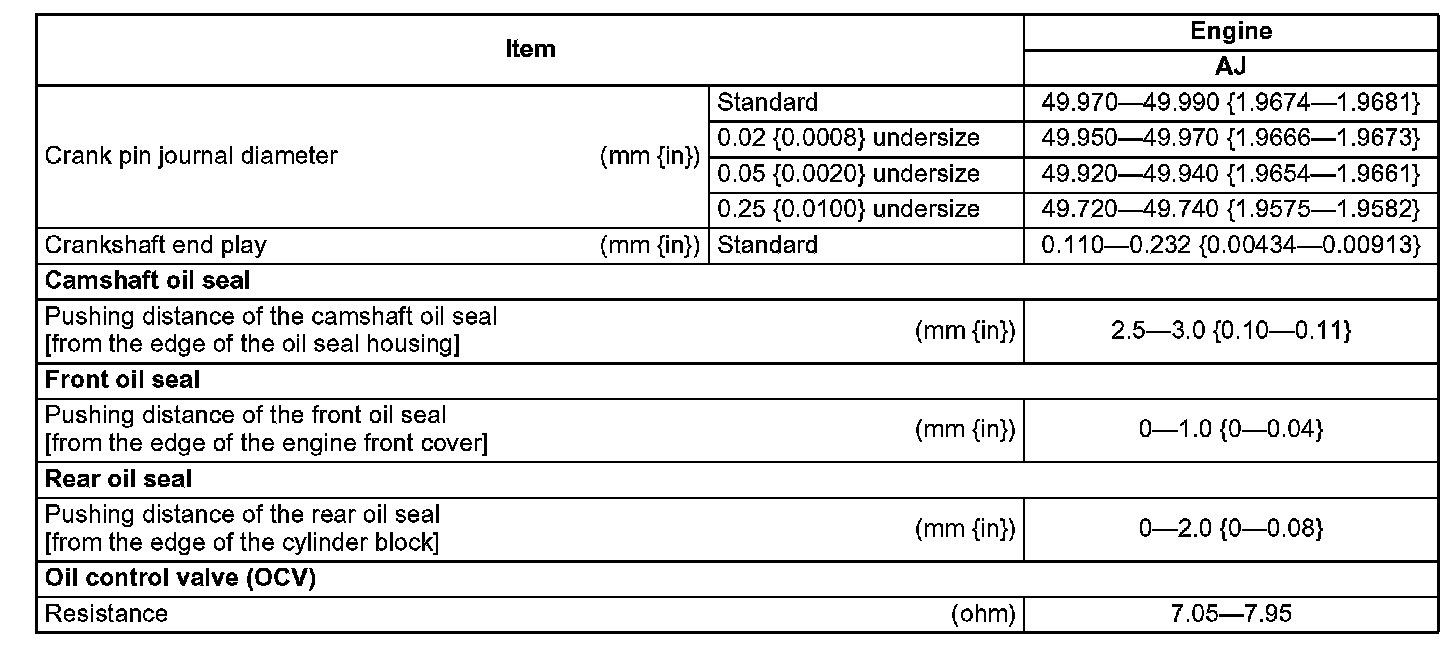

Engine Technical Data (Part 3):
