Home >> Mazda >> 2003 >> 6 V6-3.0L DOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> System Relay >> Locations

System Relay: Locations

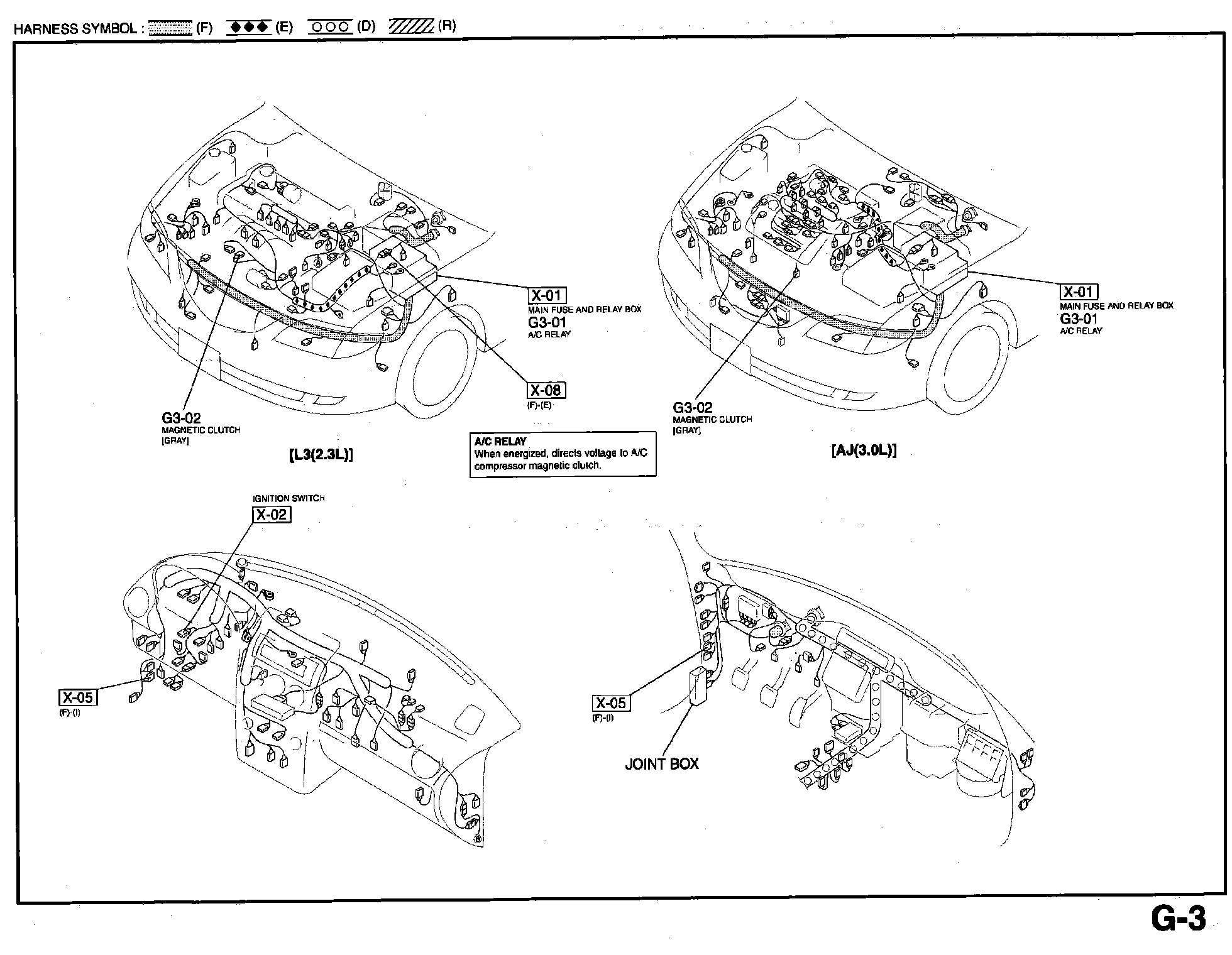

Routing View G-3:
