Emission Control Systems: Locations

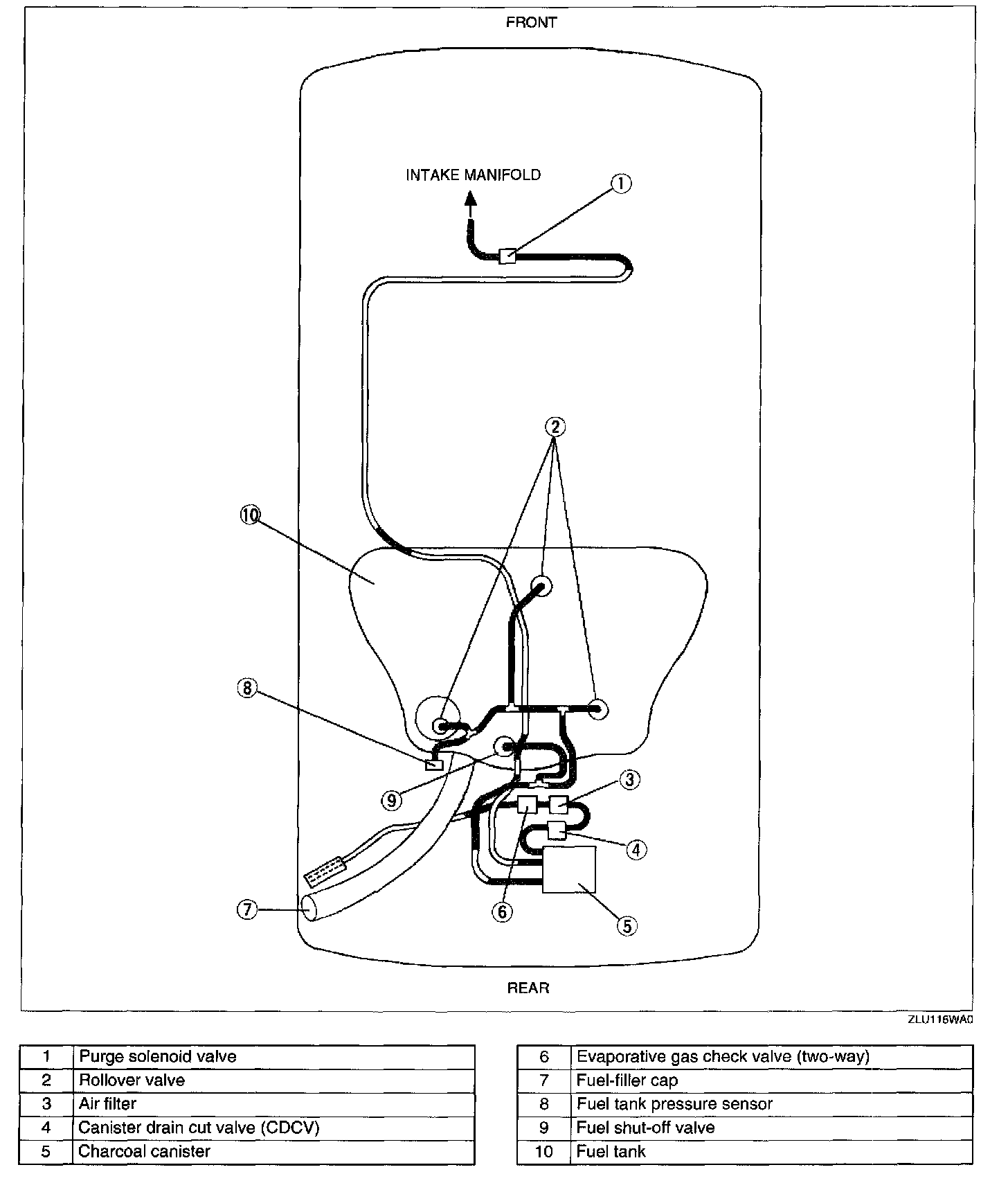

Evaporative Emission (EVAP) Control System Location Index:

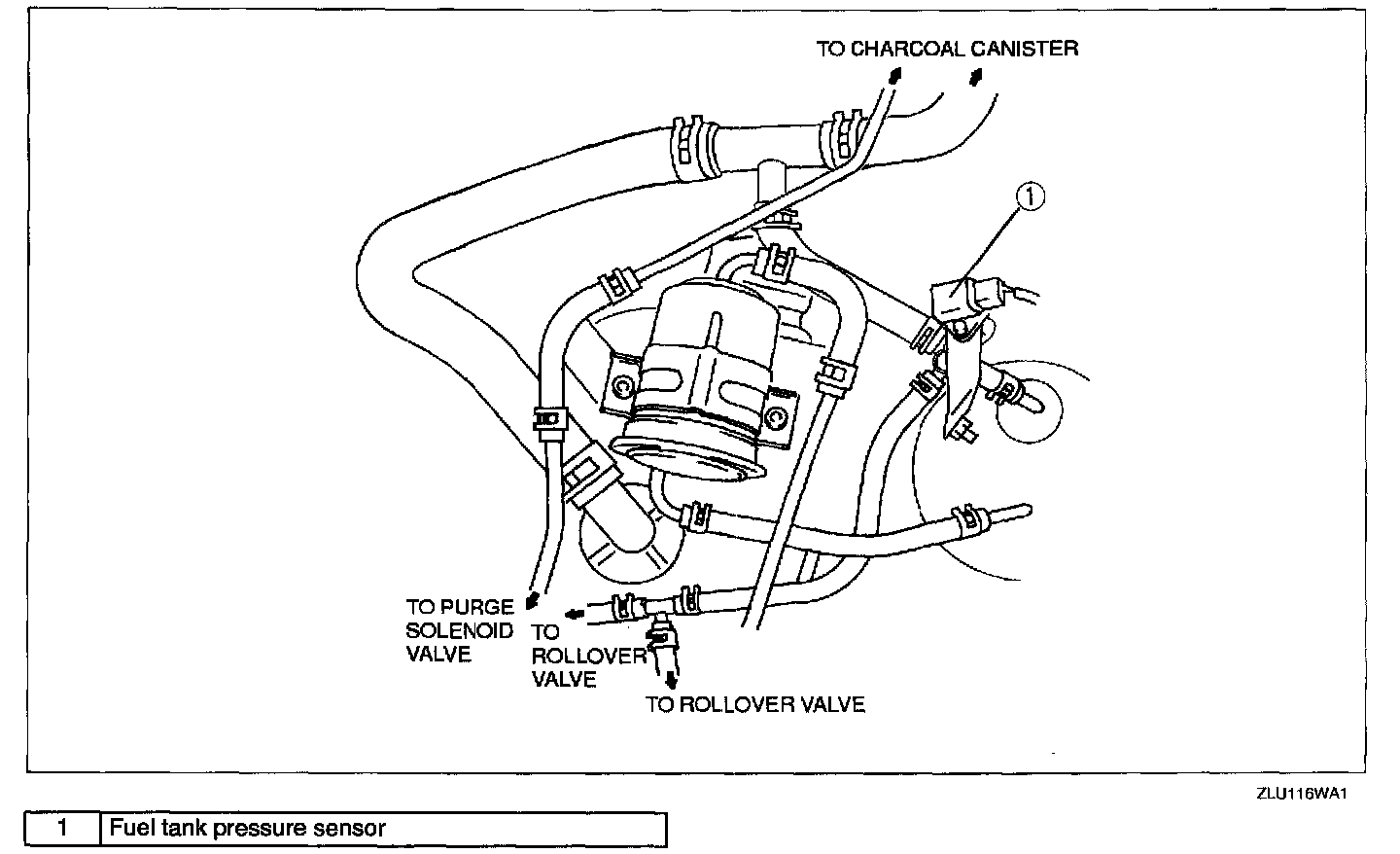

Fuel Tank Side:
