Mazda
>>
2002
>>
Millenia P V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Map Light
Map Light

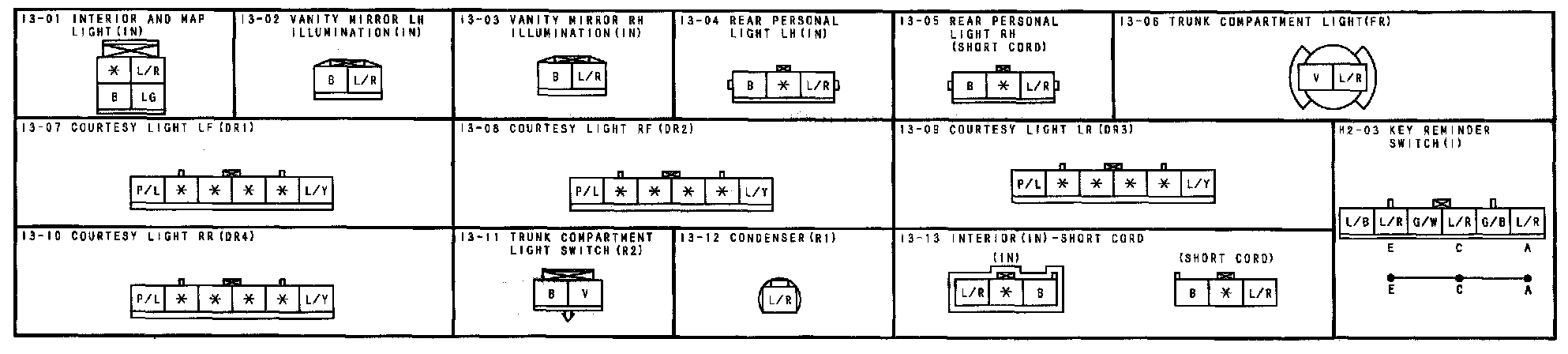

I-3 - Courtesy Light / Interior Light / Map Light / Rear Personal Light / Trunk Compartment Light / Vanity Mirror Illumination Connectors:
