626 ES V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
EC-AT Control System
EC-AT Control System

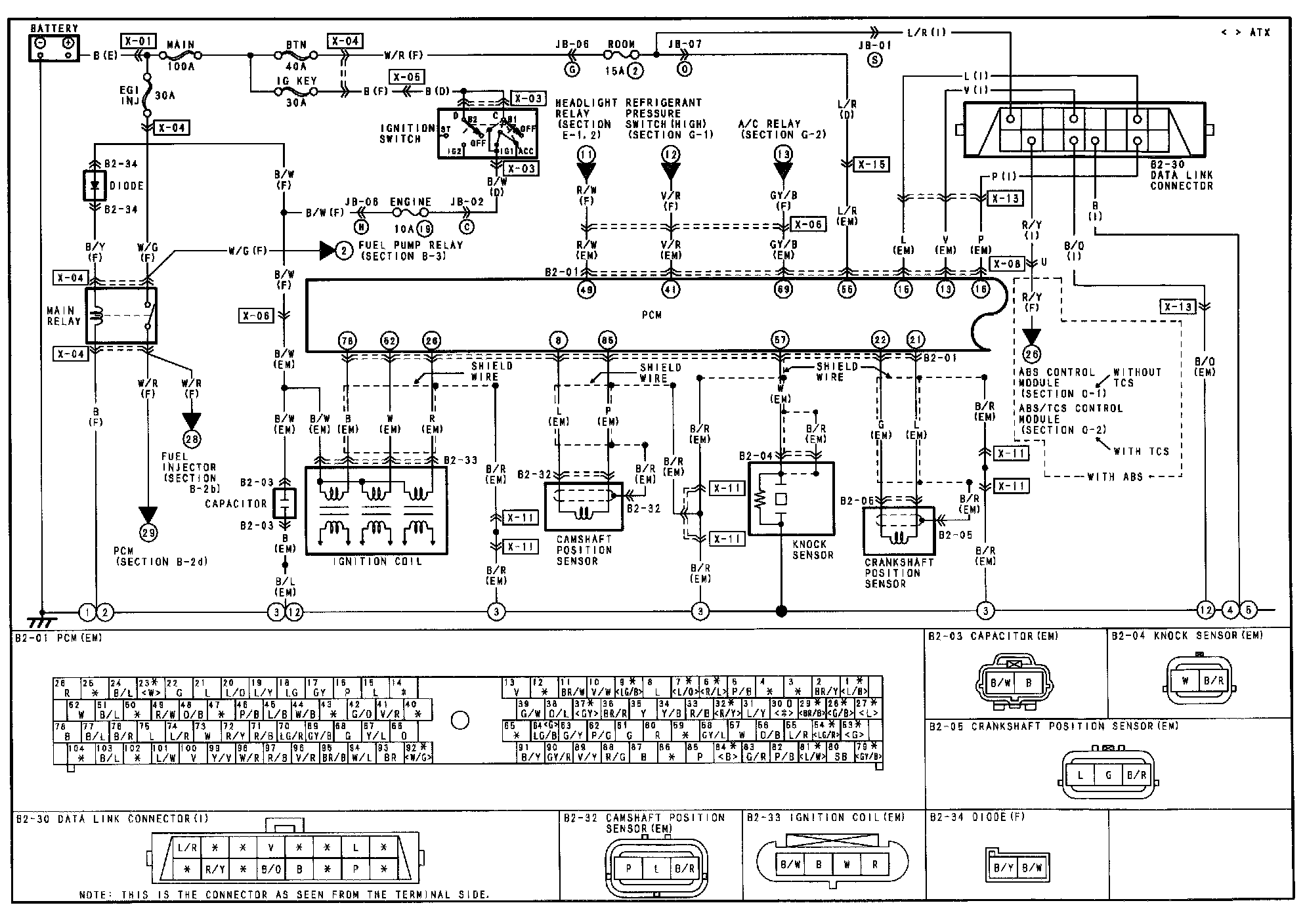

B-2a - EC-AT Control System (KL)/Engine Control System (KL) Circuit:
B-2a - EC-AT Control System (KL)/Engine Control System (KL) Harness/Connector Symbols:
