626 ES V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
Component Locations

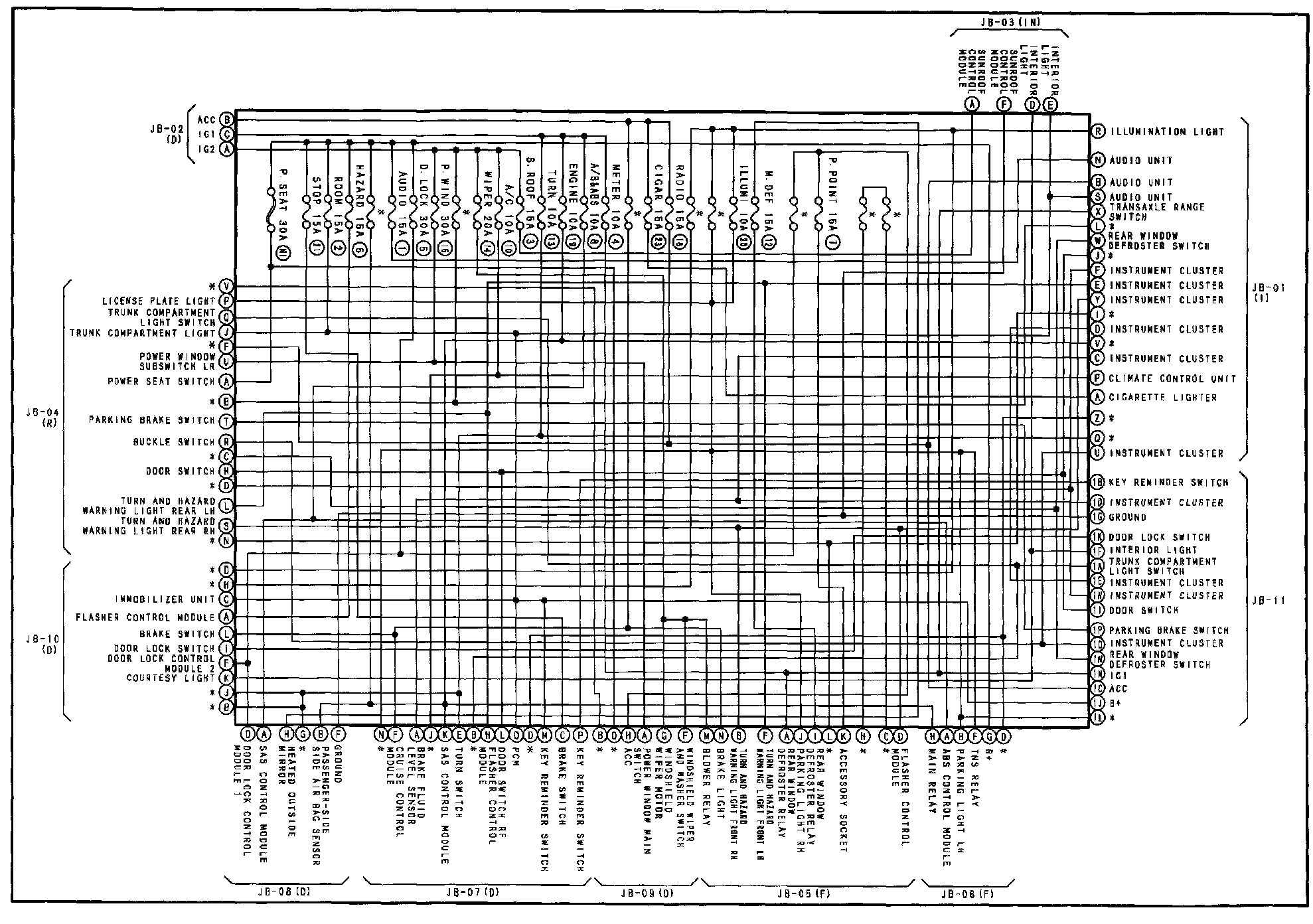

JB - Inter Connecting Diagram Of Joint Box:

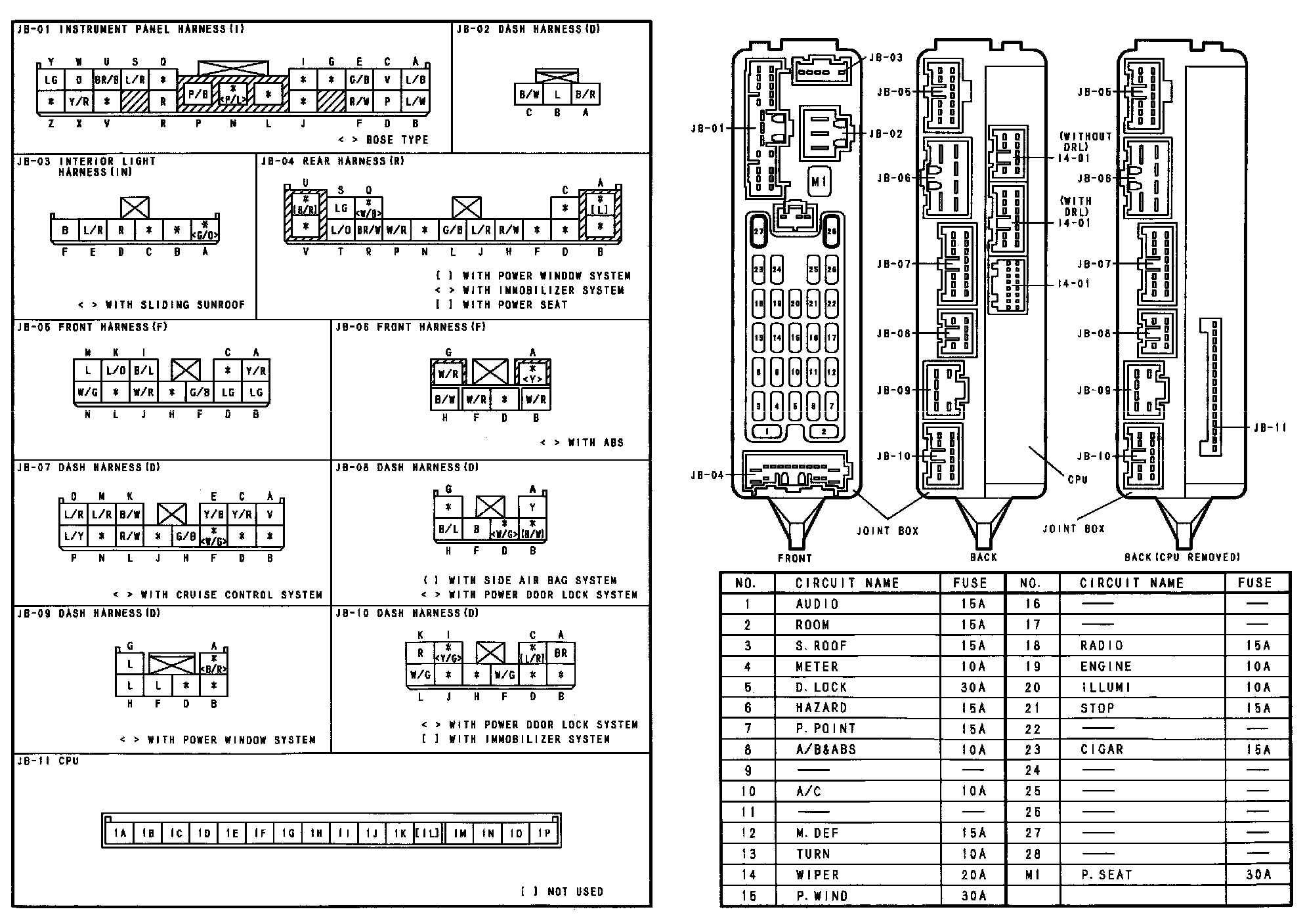

JB - Joint Box Connector Location:
