626 ES V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Testing and Inspection
>>
System Preliminary Inspection
System Preliminary Inspection

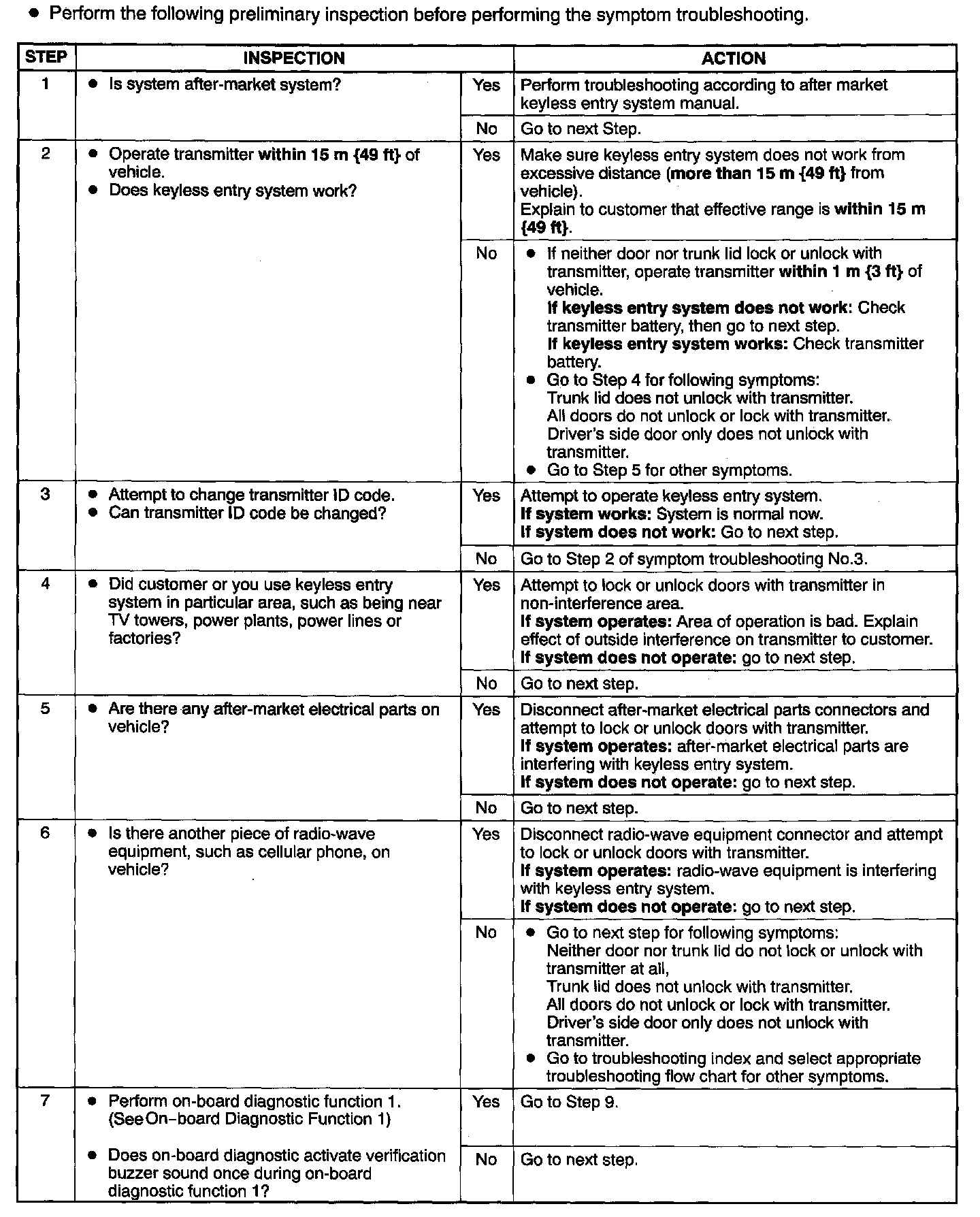

Step 1 - 7:

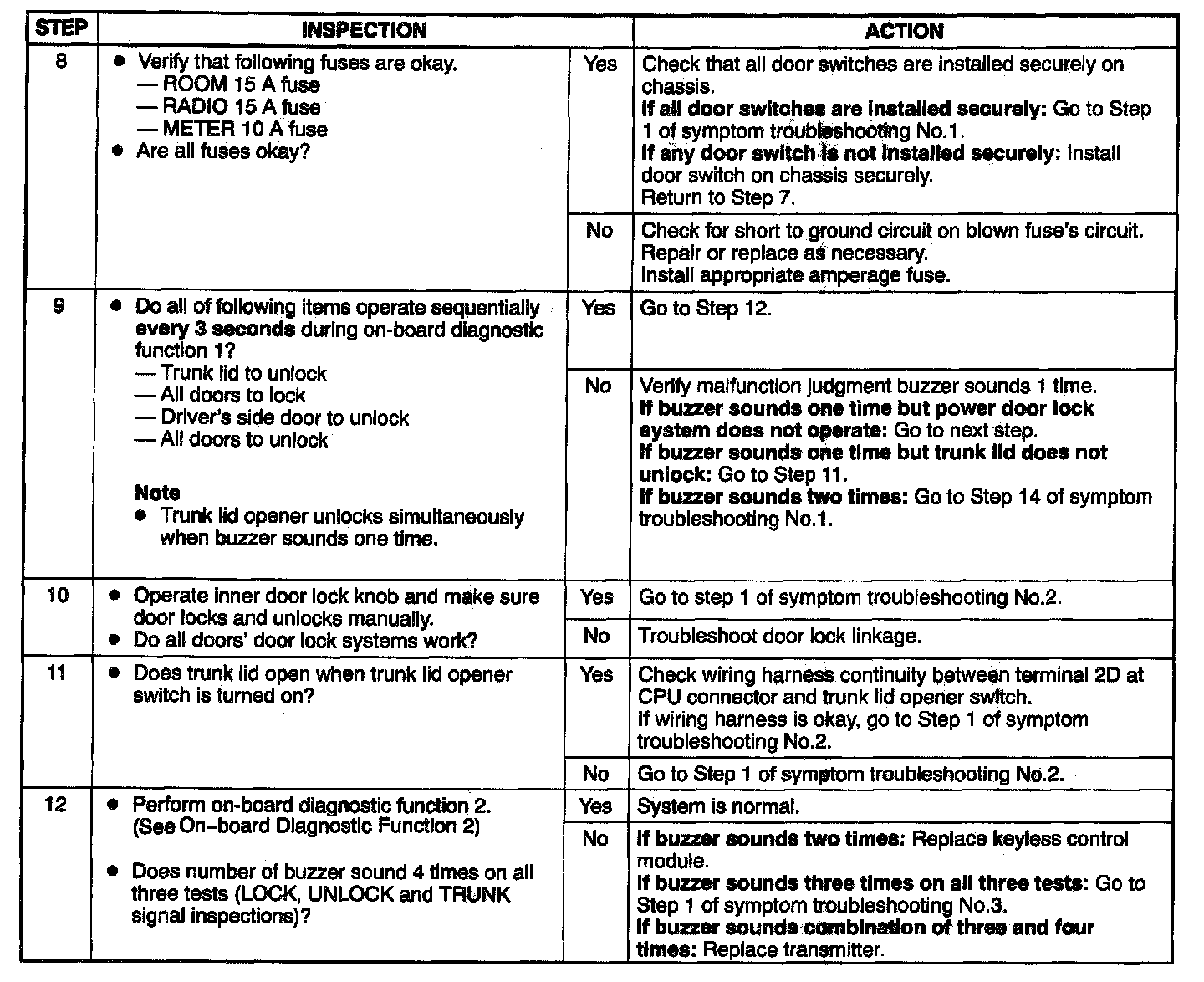

Step 8 - 12:
