Body Control Module

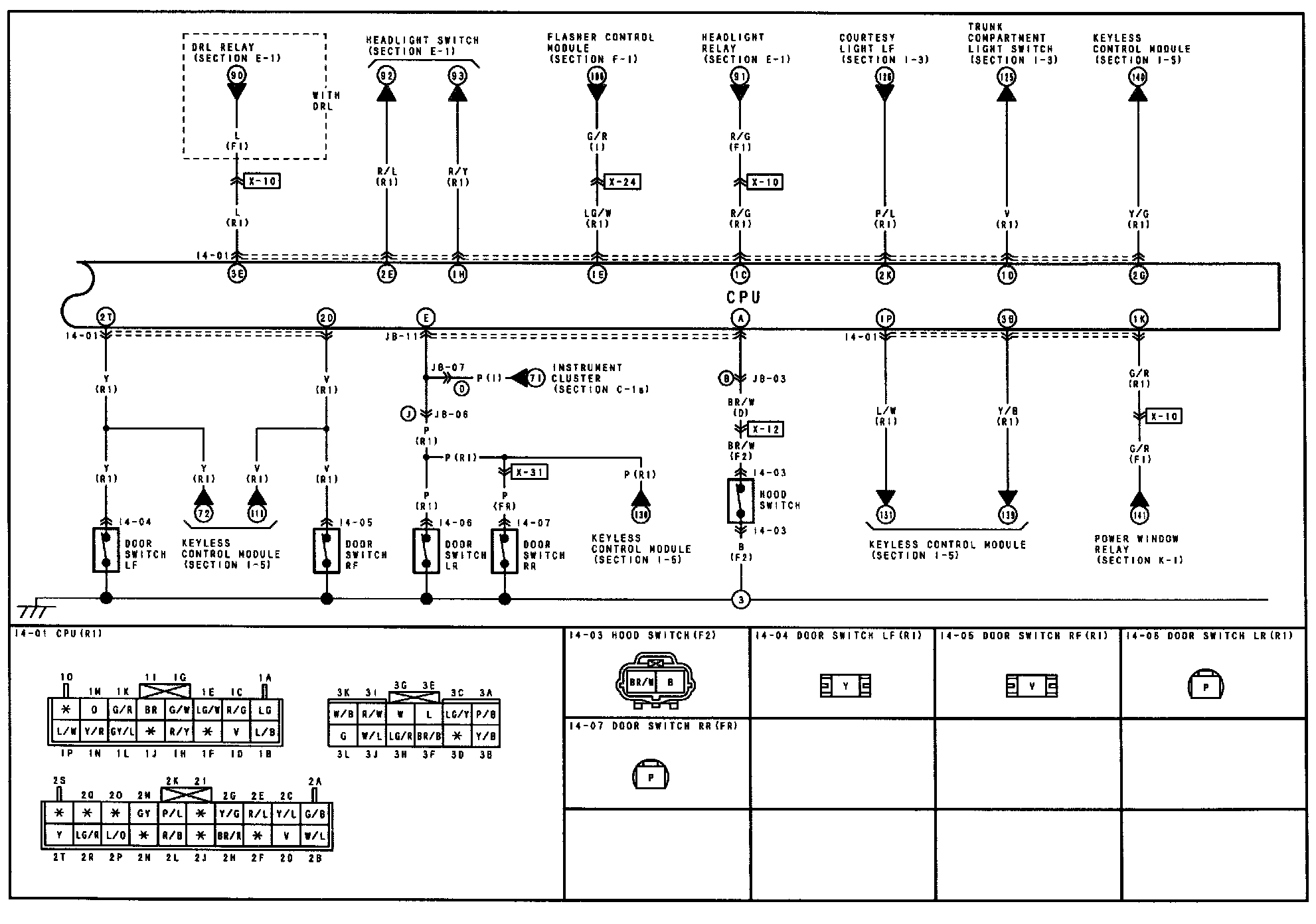

I-4a - CPU / Theft-Deterrent System Circuit:

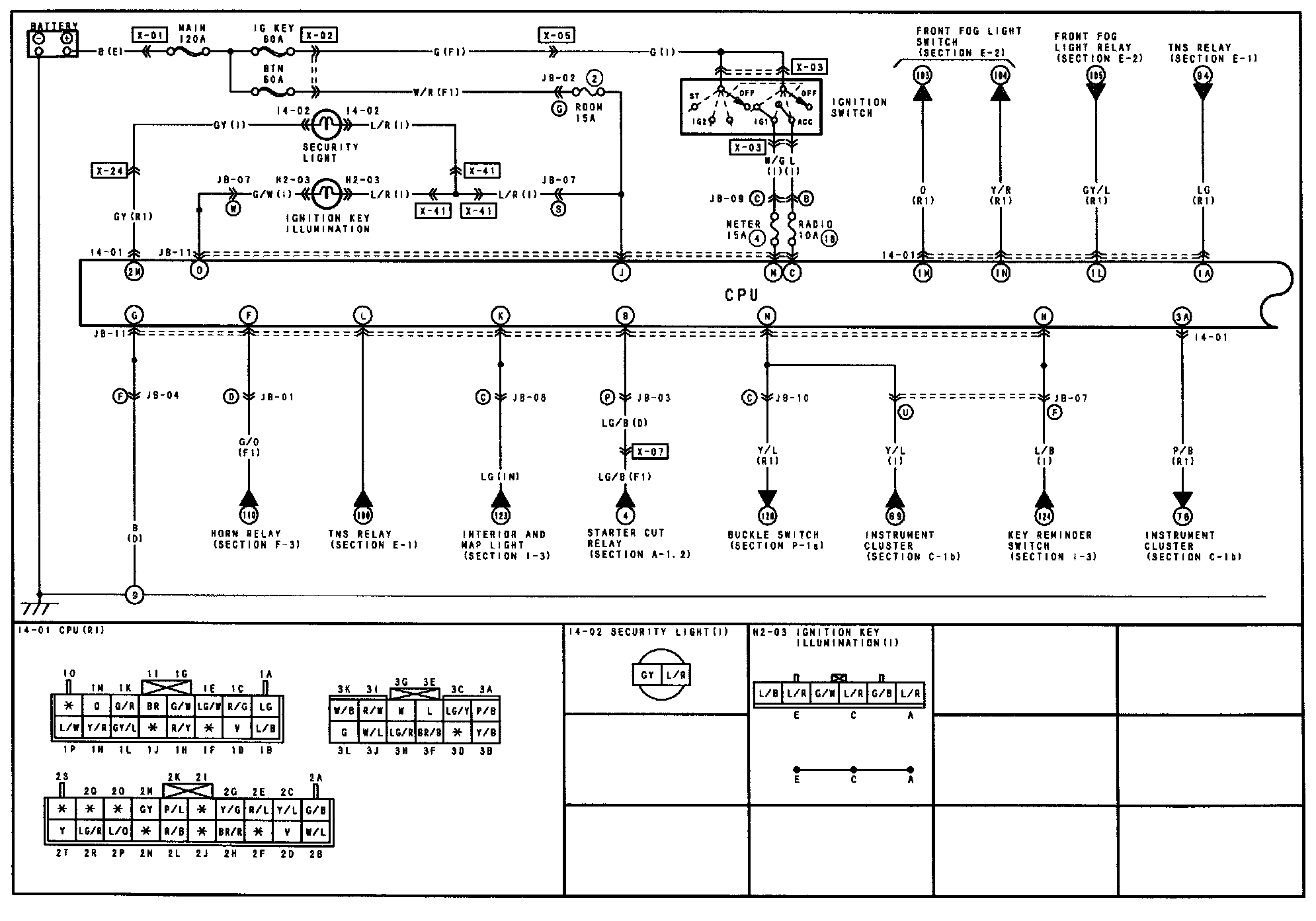

I-4b - CPU / Theft-Deterrent System Circuit:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
