H-2 - Key Interlock System / Shift-Lock System
H-2 - Key Interlock System / Shift-Lock System

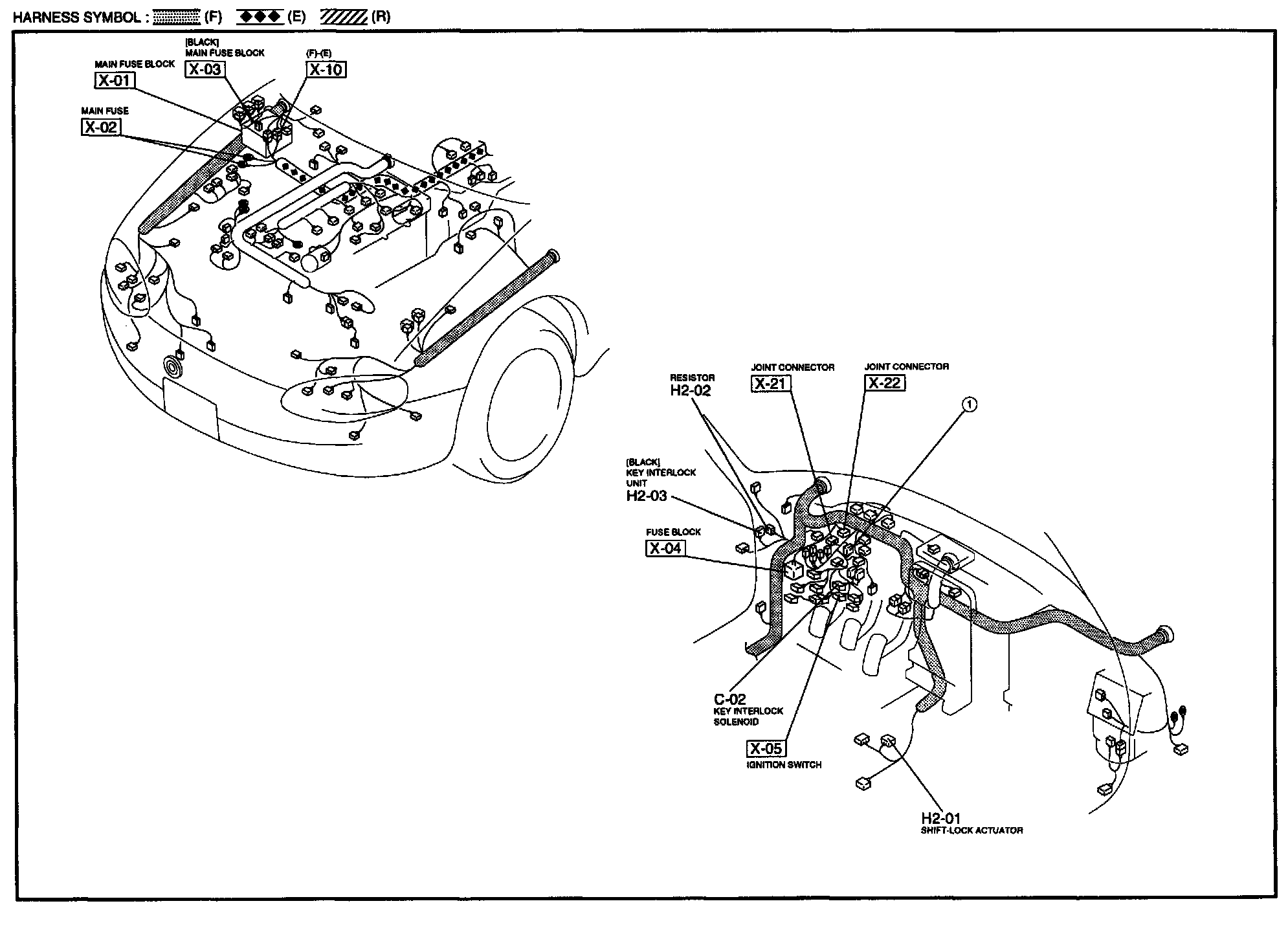

H-2 - Key Interlock System / Shift-lock System Harness/Connector Symbols:
