Home >> Mazda >> 1999 >> 626 ES V6-2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Connector Views >> Computers and Control Systems >> B-2a

B-2a

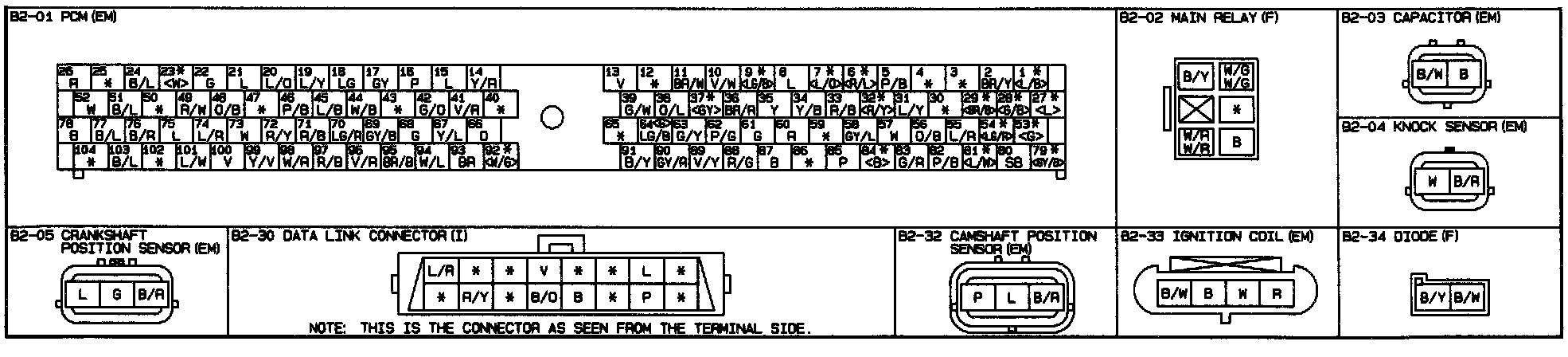

B-2A:

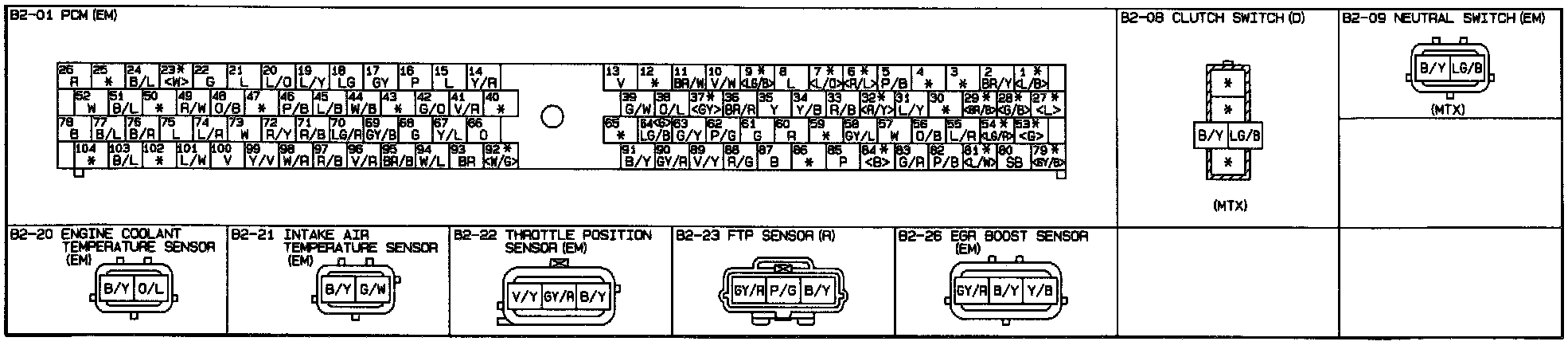

B-2B:

B-2C:

B-2D:

B-2E:
