Home >> Mazda >> 1998 >> 626 ES V6-2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Connector Views >> Computers and Control Systems >> B-2a

B-2a

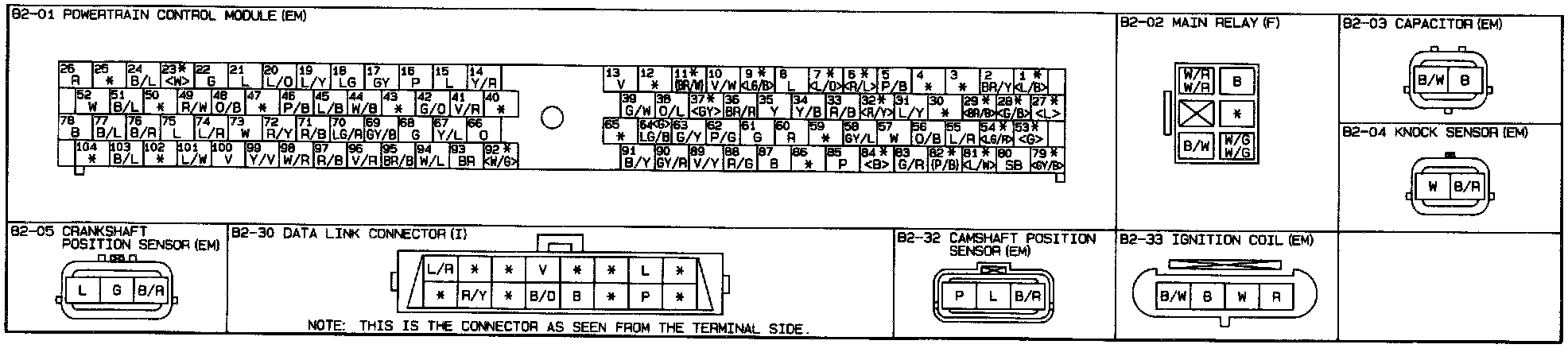

Engine Control System (KL), Ignition System (KL)- Connectors:
