Home >> Mazda >> 1998 >> 626 ES V6-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Engine Control System, EC-at Control System

Engine Control System, EC-at Control System

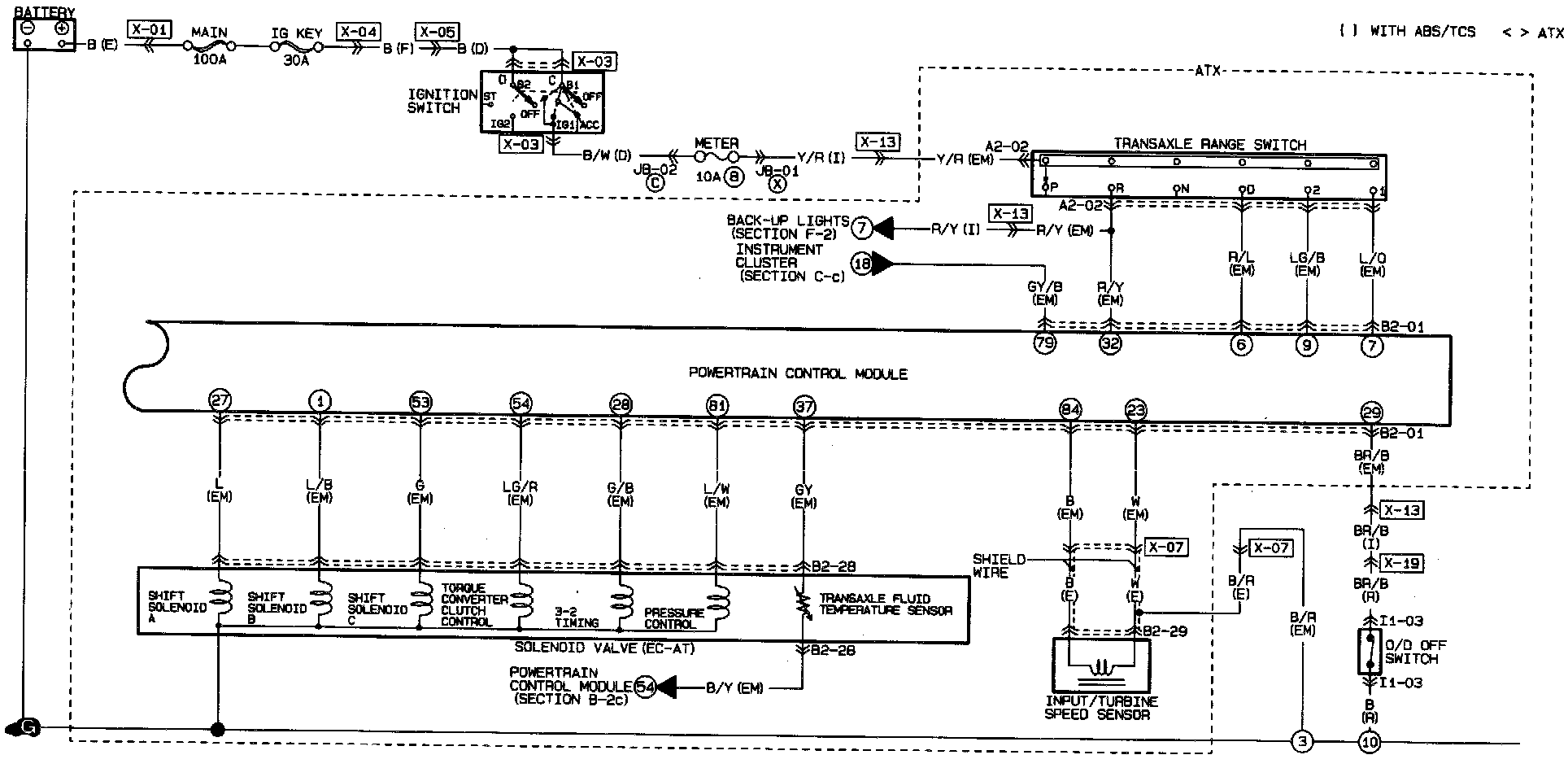

Engine Control System (KL), EC-AT Control System (KL):
