Control System Diagram
>>
With Manual Transaxle
With Manual Transaxle

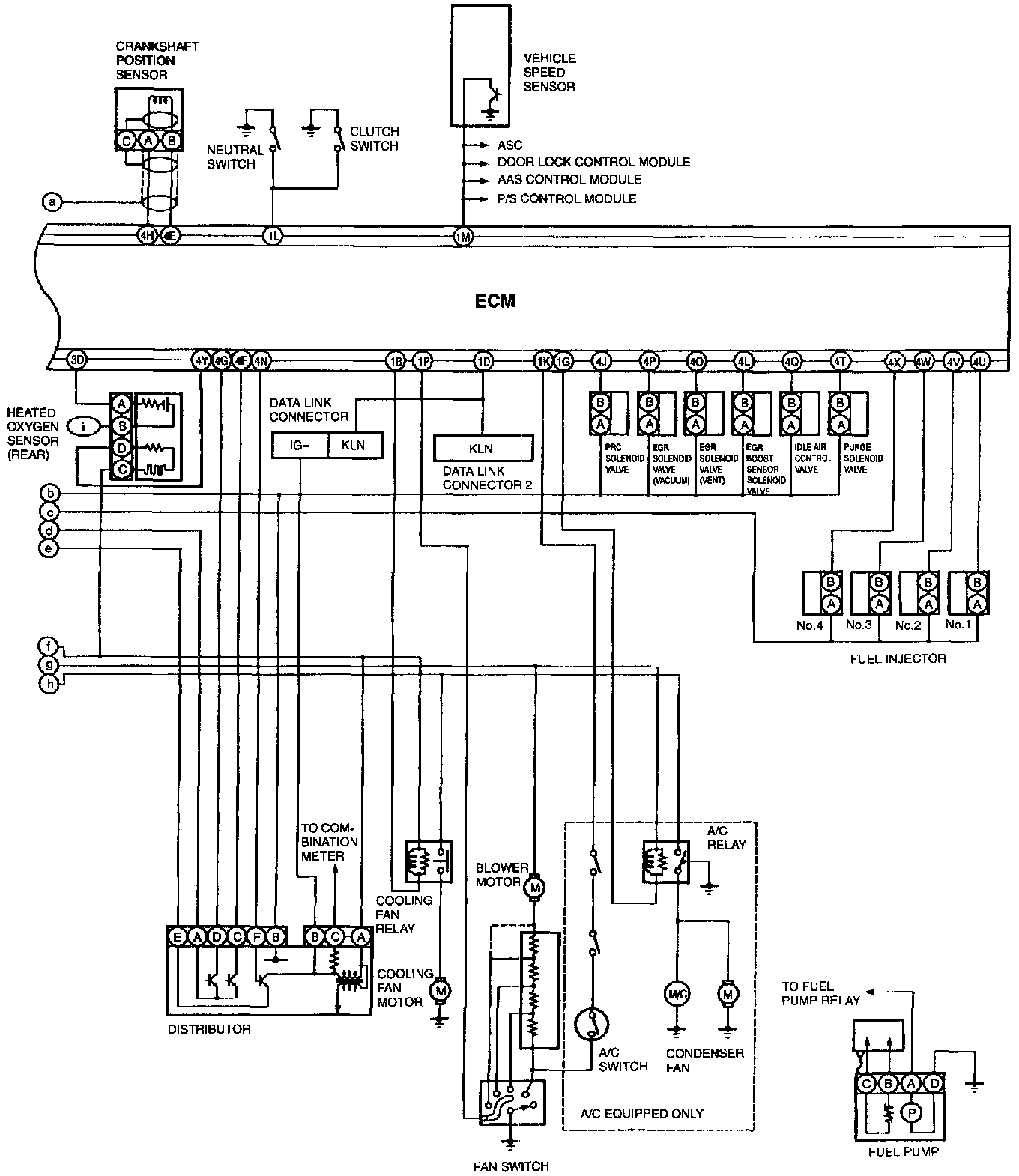

Engine Control System Schematic (1 Of 2):
(1 Of 2)

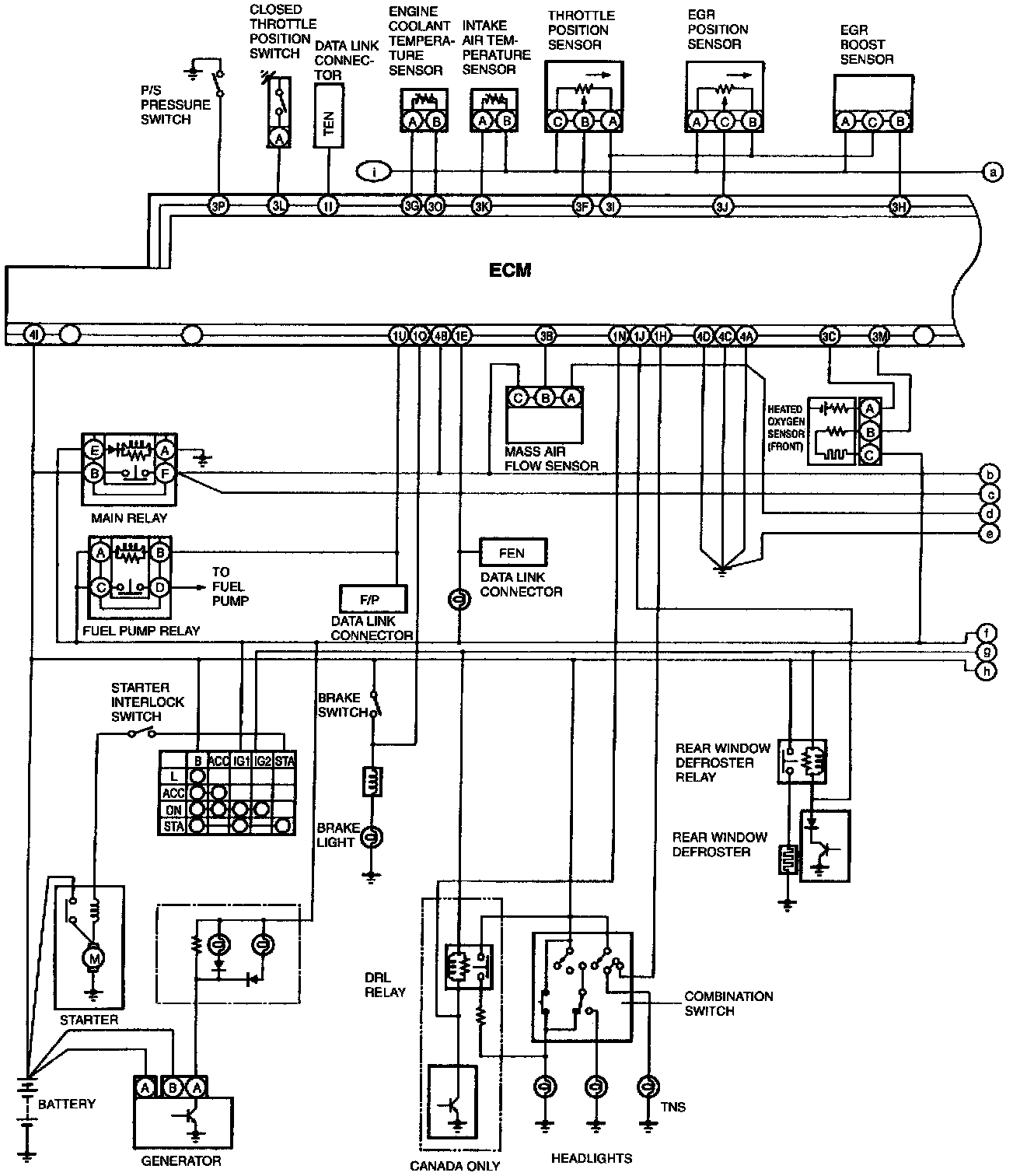

Engine Control System Schematic (2 Of 2):
(2 Of 2)
