Home >> Mazda >> 1997 >> MX-6 L4-2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> With A/T

With A/T

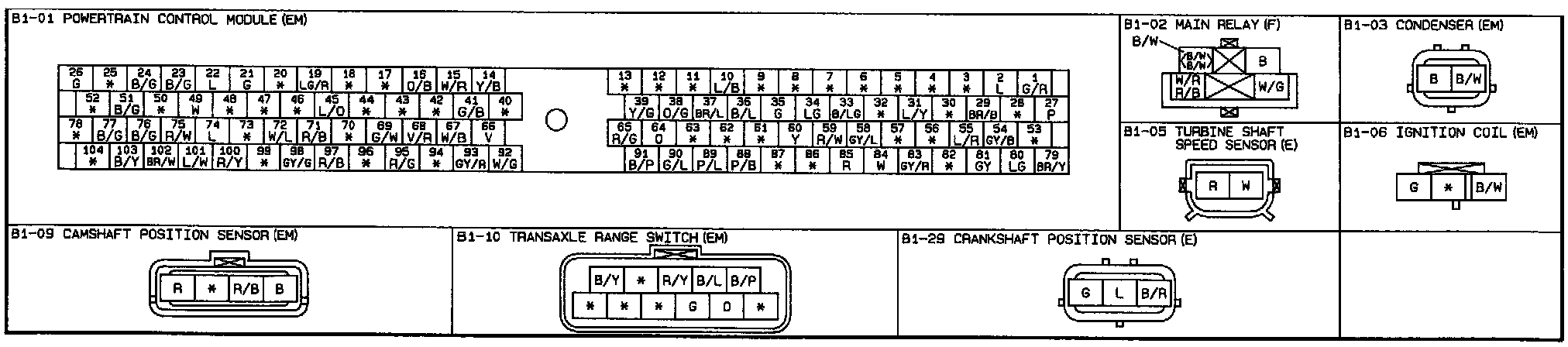

Engine Control System (ATX), Ignition System (ATX)- Connectors:

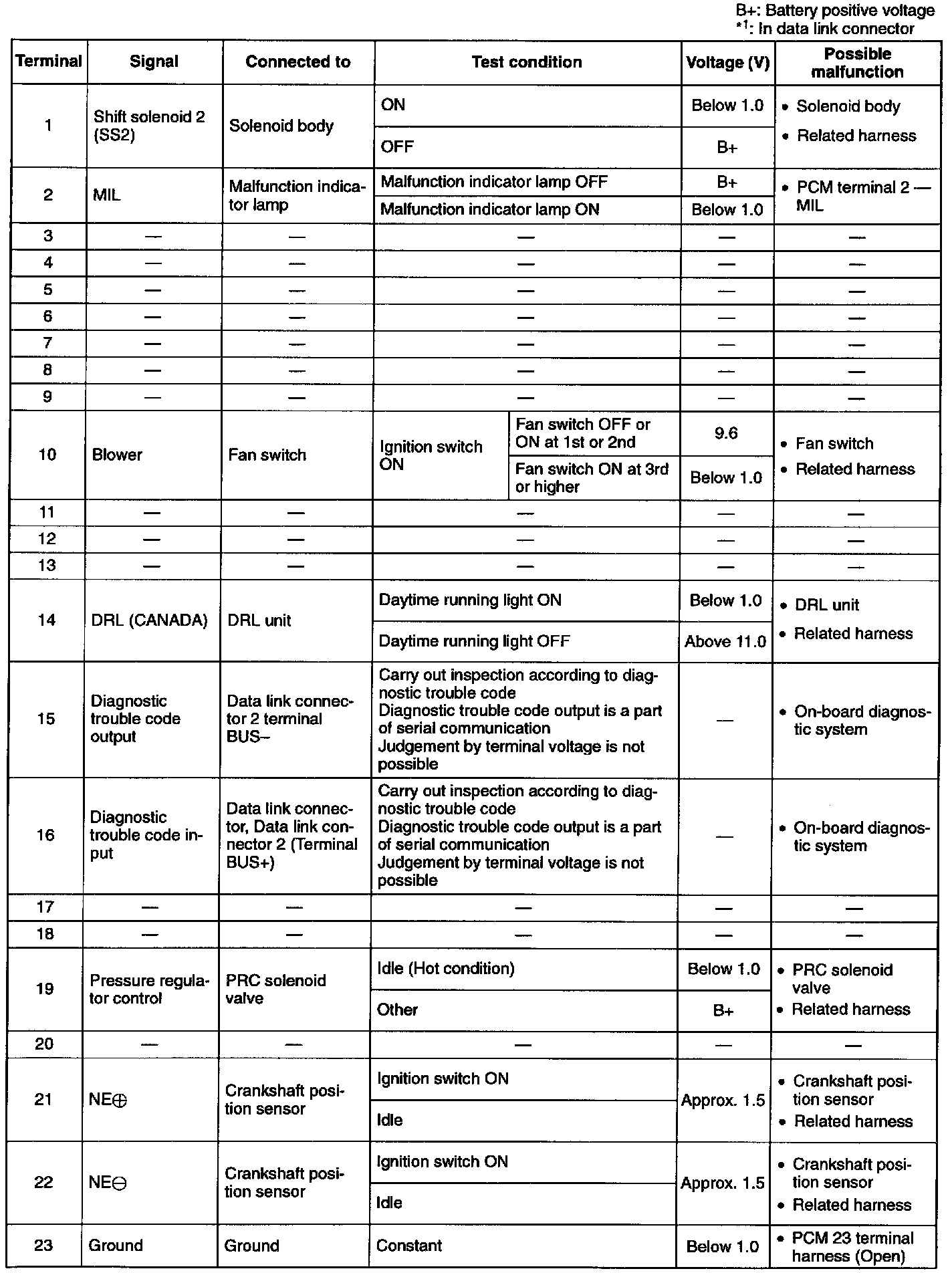

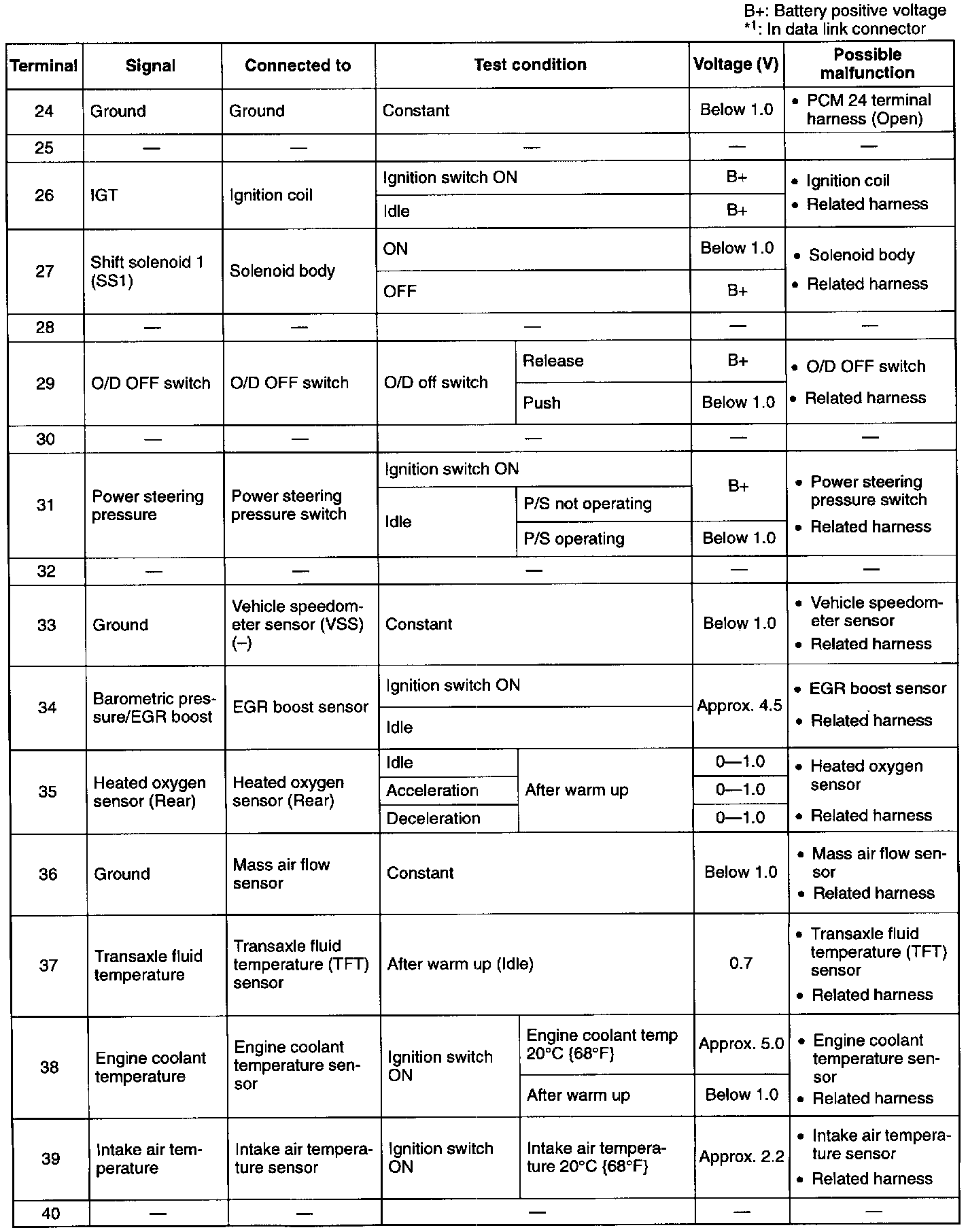

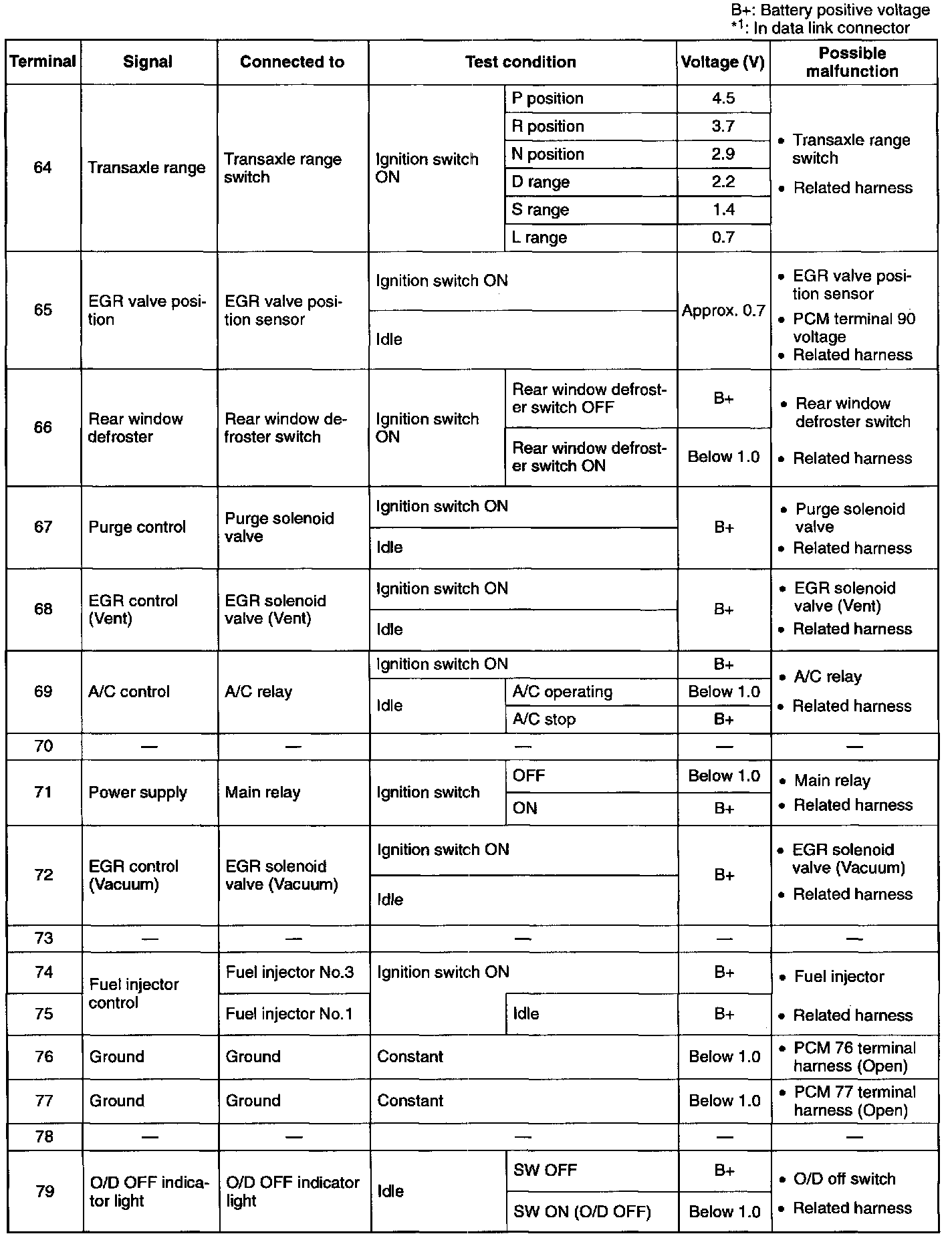

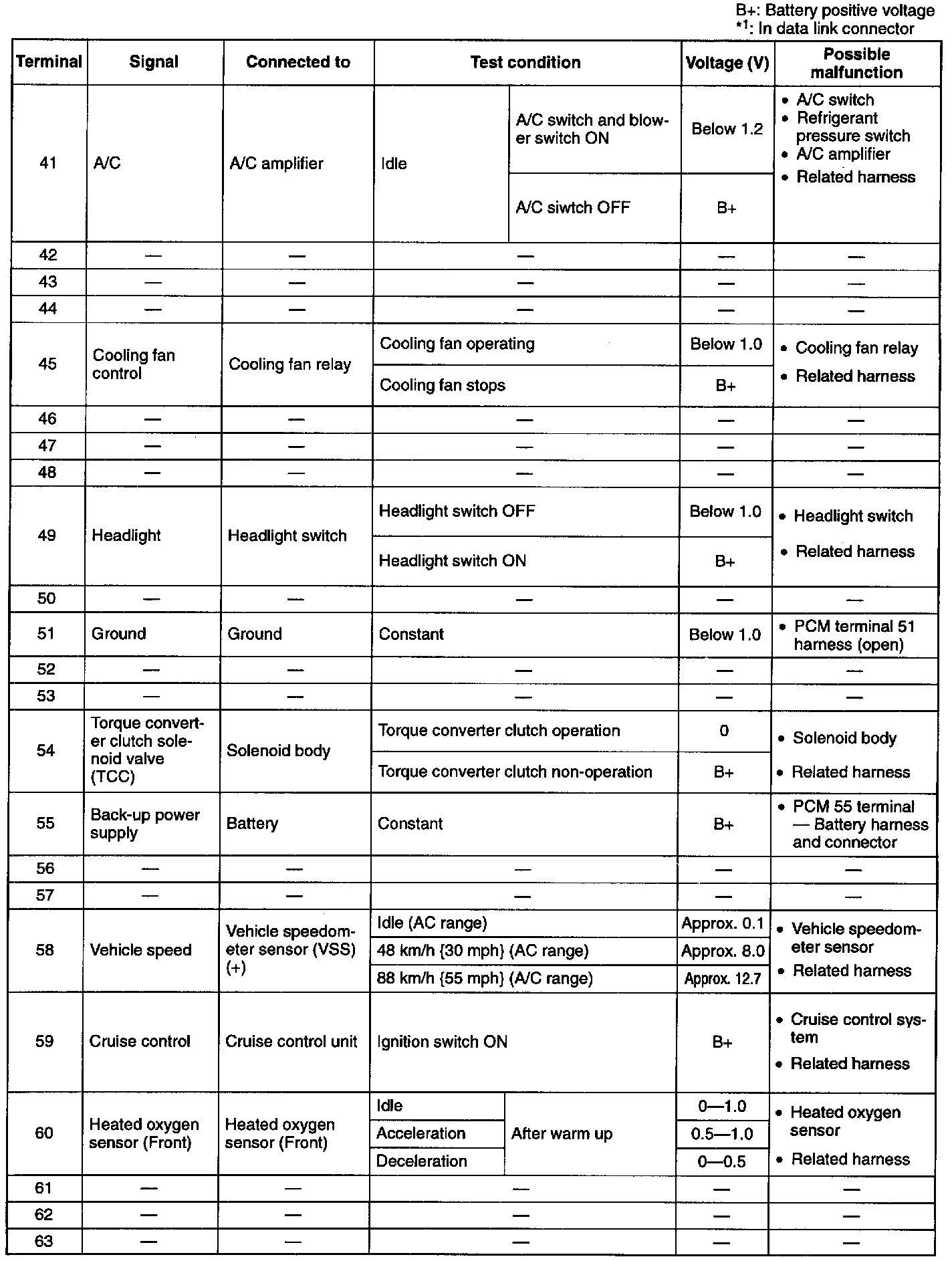

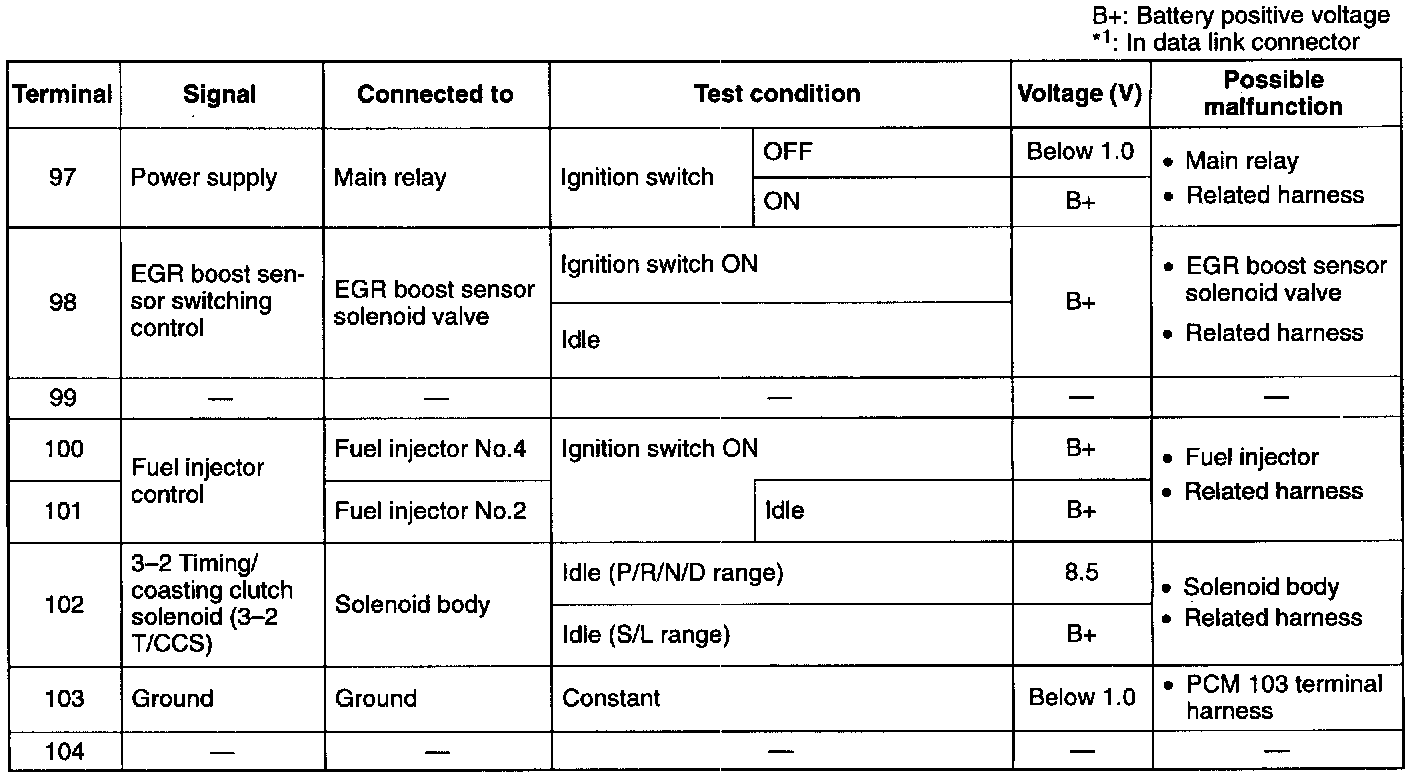

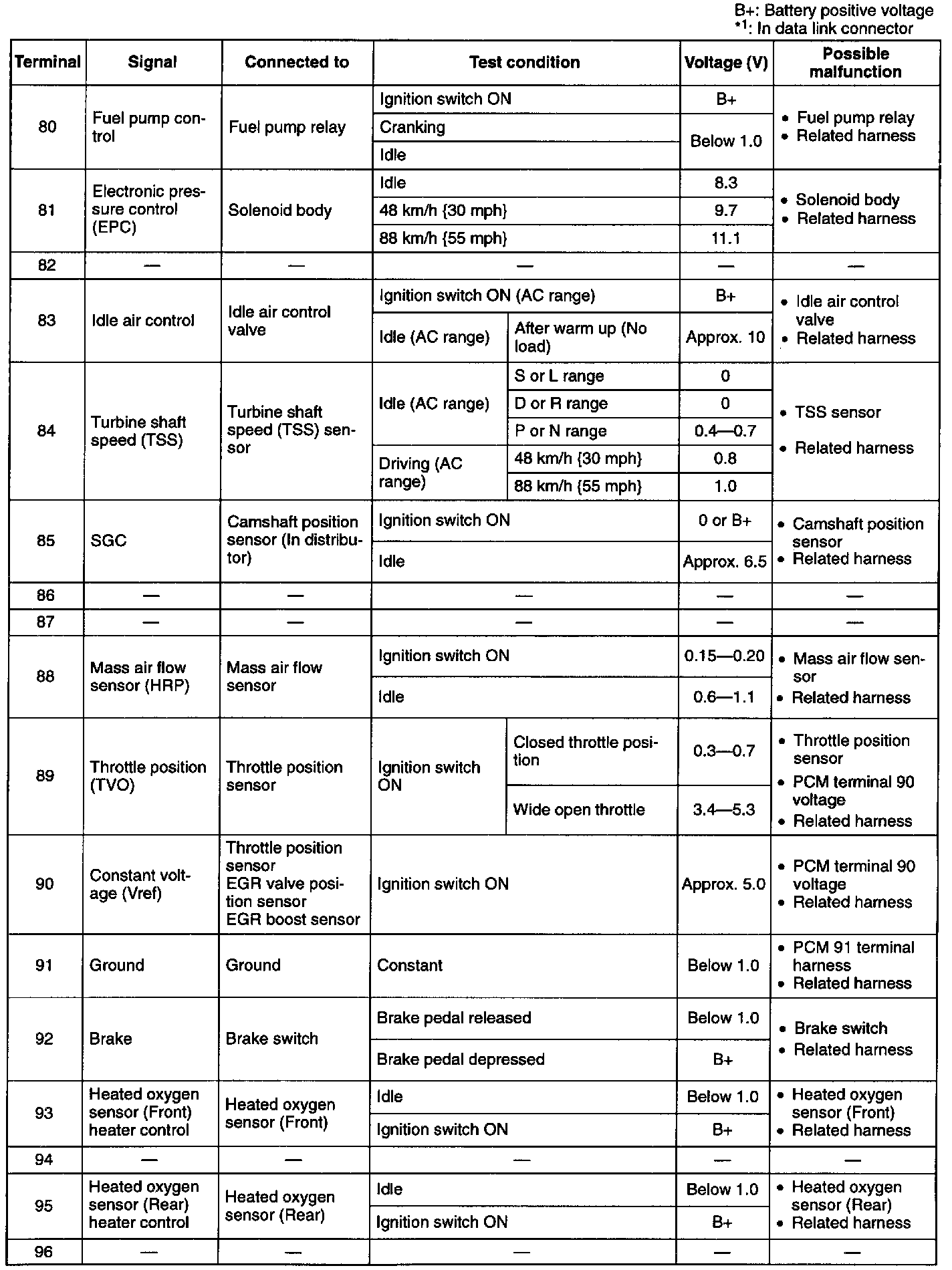

PCM Terminal Voltage (Reference)
