Home >> Mazda >> 1997 >> MX-6 L4-2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module >> CPU - Connector B

CPU - Connector B

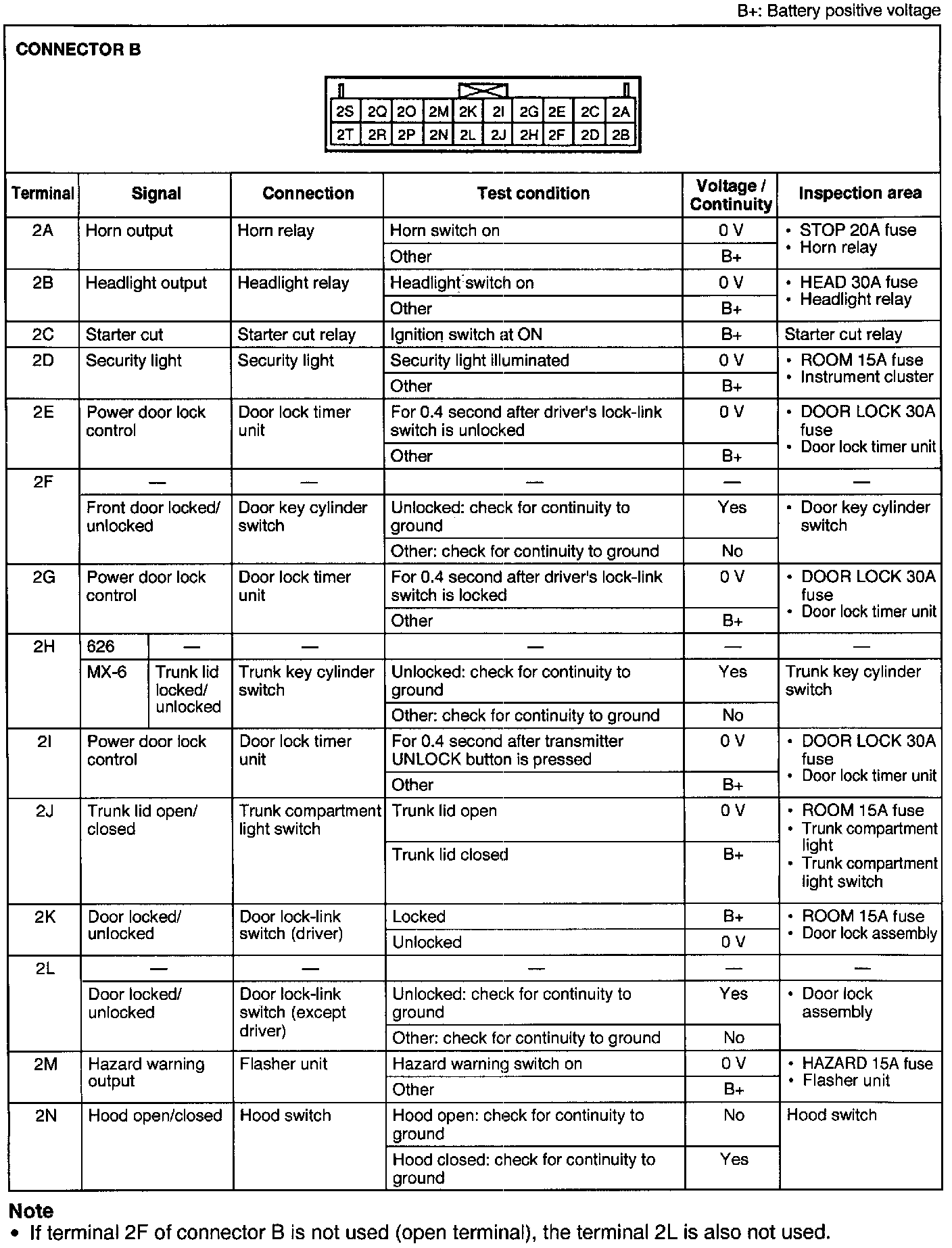

Terminal Voltage (1 Of 2):

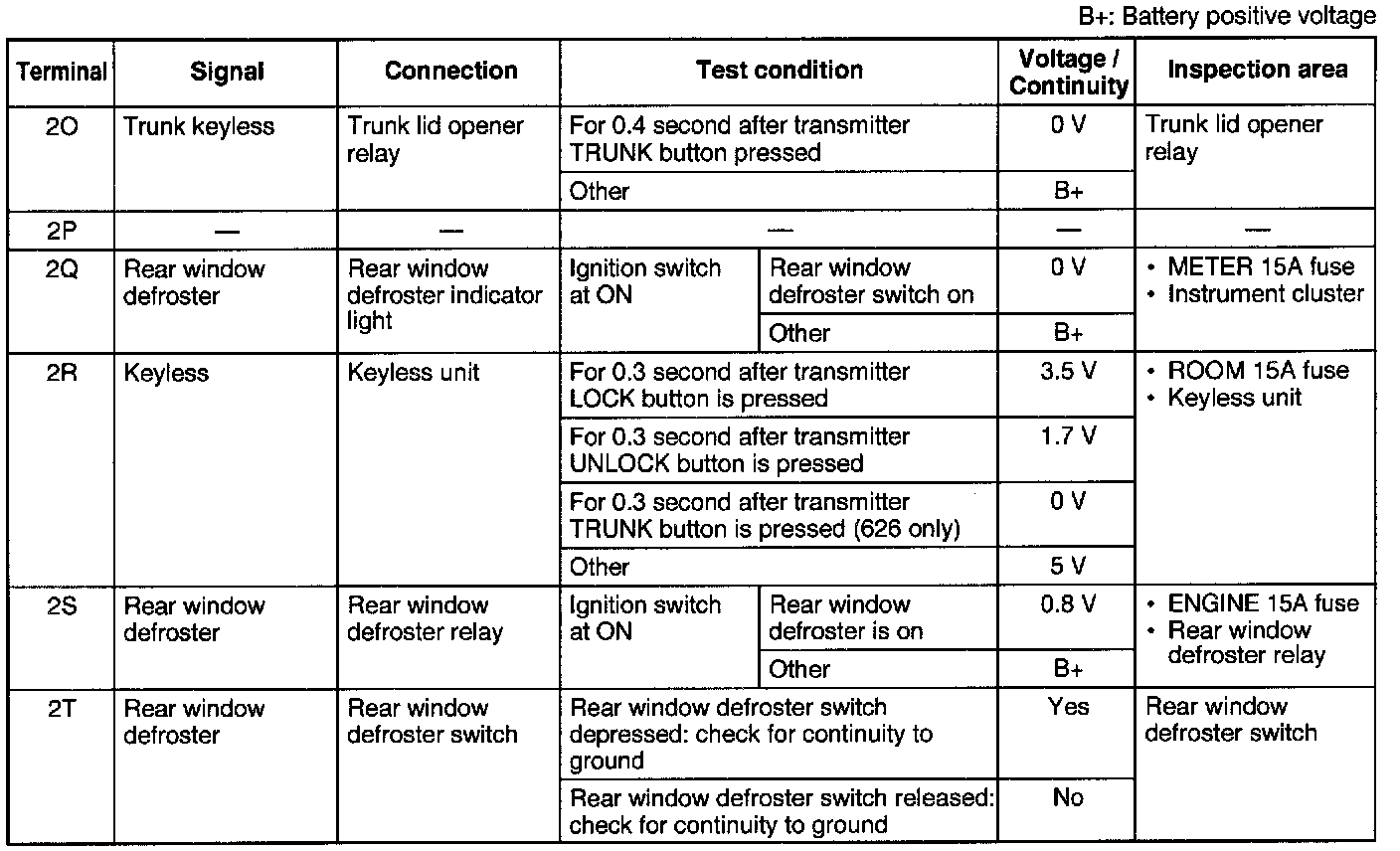

Terminal Voltage (2 Of 2):
