Disassembly and Assembly
Disassembly and Assembly
1.
Remove the heater control unit.
2.

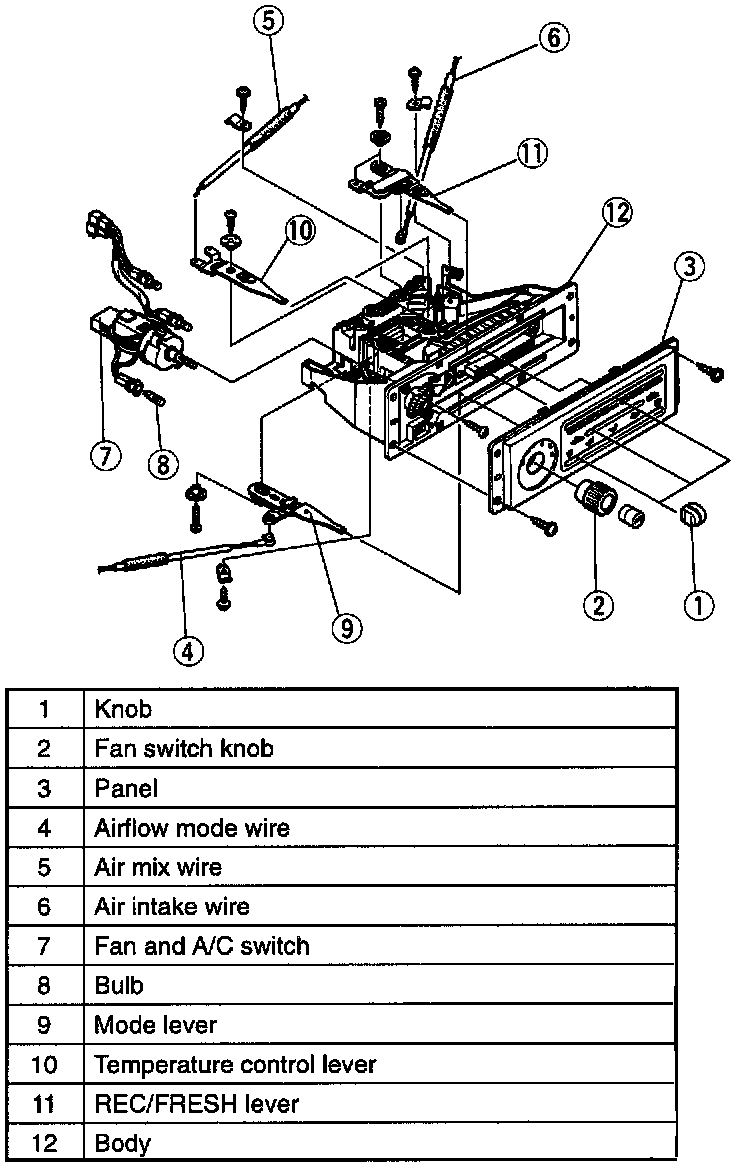

Disassemble in the order indicated in the table.
3.
Assemble in the reverse order of disassembly.
